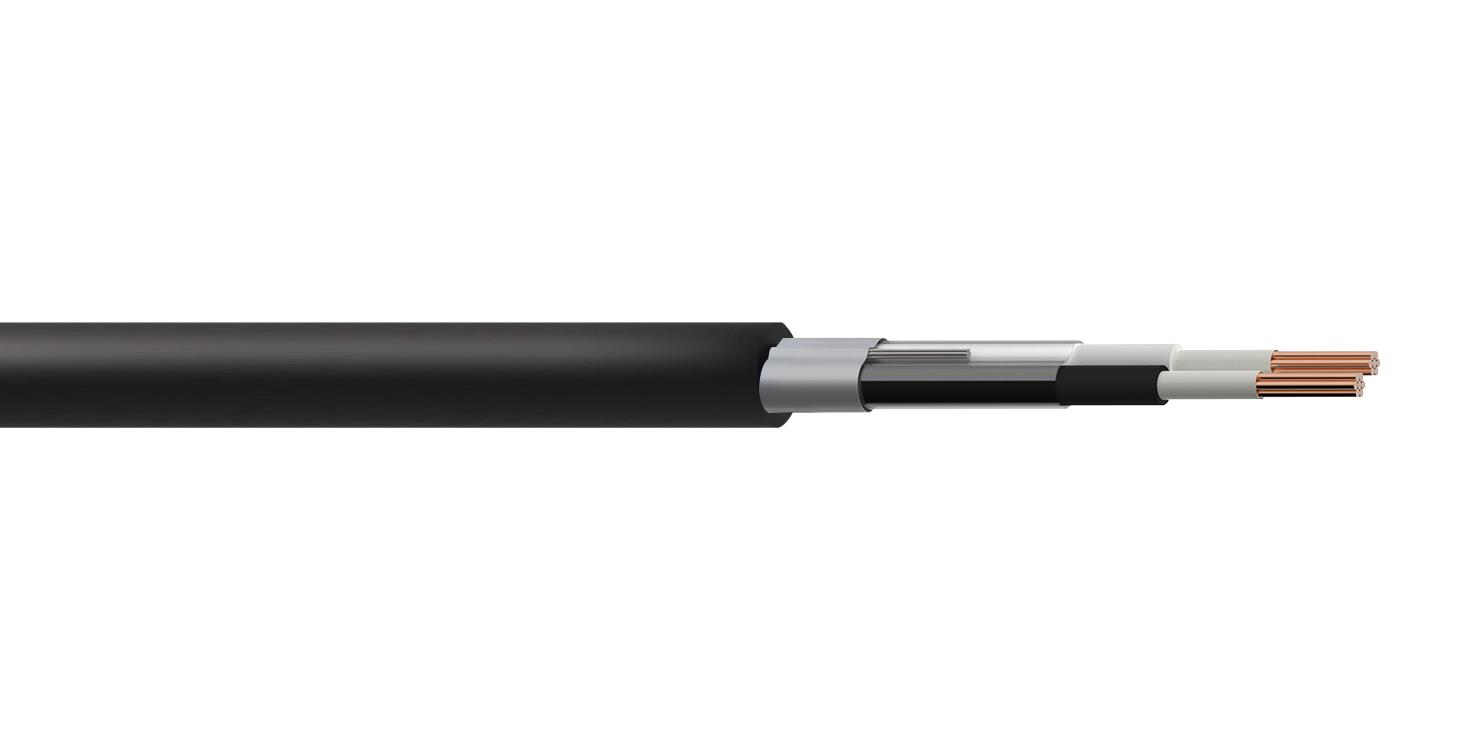

MULTICOMP-PRO PP002441 Industrial Communication Cables
These high-quality XLPE/CAM/LSZH cables are designed for reliable electrical and communication connections in process plants, offering fire resistance and low smoke emissions. Suitable for installation in environments requiring circuit integrity during fire, they feature twisted pairs with individual and collective screens, ensuring signal integrity. The cables comply with BS EN standards and are constructed with flexible copper conductors, cross-linked polyethylene insulation, and low smoke zero halogen sheathing. Ideal for industrial applications where safety, durability, and reliable performance are critical in harsh environments.
MULTICOMP-PRO PP002441 Industrial Communication Cables Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: Fixed: -30°C to +90°C
- Minimum Bending Radius: 7.5 x overall diameter
- Core Identification: White and Black numbered
- Sheath Colour: Black
- Conductor: 0.75mm², Class 5 Flexible Copper Conductor
- Insulation: XLPE (Cross-Linked Polyethylene)
- Screen: Individual and Collective Screen, PET and AUPET tape with tinned drain wire
- Lay-up: Multi-Core, Multi-Pair, PIMF, TiMF Types
- Sheath Material: LSZH (Low Smoke Zero Halogen)
- Nominal Cross Sectional Area: 0.75mm²
- Overall Diameter: 9.8mm
- Weight: 110 kg/km
- Maximum DC Resistance at 20°C: 24.5 Ω/km
- Mutual Capacitance: 100 pF/m
- Insulation Resistance: 5000 MΩ/km
- Compliance Standards: BS EN 50288-1, BS EN 50288-7, HD 383, BS EN 50290-2, BS EN/IEC 60332-1, BS EN/IEC 60332-3-24, BS EN 61034-2, BS EN 50267-2-3, BS EN 50267-2-1, IEC 60331-23, BS EN 60228
Buy the Buy Multicomp XLPE/CAM/LSZH Cables Part Number PP002441 Online
Purchase the Multicomp XLPE/CAM/LSZH cables online today to benefit from durable, fire-resistant, low smoke emission cables ideal for critical industrial installations. Designed to withstand harsh environments, these cables ensure safety and performance in process plants, petrochemical facilities, and other industrial settings where circuit integrity during fire is essential. With easy ordering and fast delivery, enjoy the convenience of securing high-performance cabling solutions for your electrical and communication needs with confidence and ease.
Buy Multicomp PP002441 now and ensure reliable, fire-resistant communication connections in your industrial process plant.
