MULTICOMP PRO MP001996 Power Adapter

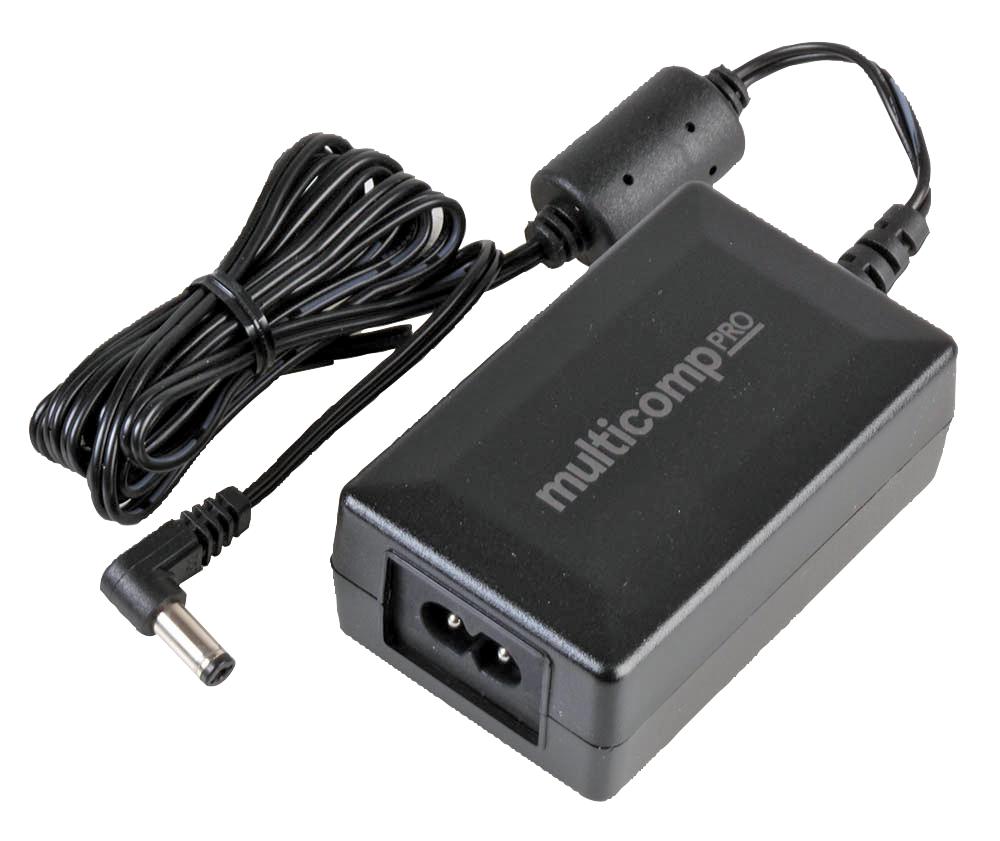

This compact 24W external plug-in power adapter provides a reliable 12V DC output at 2A, suitable for various general power applications. RoHS compliant, it features universal input voltage (90V-264V AC), high efficiency at 86.8%, and safety certifications including UL, CE, FCC, GS, and RCM. The device includes a right-angle 2.1mm x 5.5mm x 12mm center positive output connector, with protections against over-voltage, over-load, and short circuits. Its compact dimensions of 80.6mm by 50mm by 31mm make it ideal for space-constrained environments, ensuring stable operation from 0°C to 40°C.
MULTICOMP PRO MP001996 Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current: Rated 600mA Rms Max
- Efficiency: 86.8% Min
- Output Voltage Rating: 12V DC
- Output Current Range: 2A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive - Right Angle
- Line and Load Regulation: +5%
- Over Voltage Protection: 16V
- Over Load Protection: 3A Output Load
- Short Circuit Protection: Output Shut Down Auto Recover
- Ripple Voltage: 150mV (p-p)
- Hi-Pot: 3000V AC or 4242V DC 10mA 1 min
- Safety Standards: IEC60950, UL60950, EN60950
- EMI Standard: FCC Class B, CE
- Operating Temperature Range: 0°C to +40°C
- Storage Temperature: -10°C to +70°C
- Operating Humidity: 20% to 80%
- Storage Humidity: 10% to 90%
- Dimensions: 80.6mm x 50mm x 31mm
- Product Weight: 130g
Buy the Buy Multicomp External Plug In Adapter Part Number MP001996 Online
Secure your power needs with the high-quality 24W external plug-in power adapter. Designed for reliability and efficiency, this 12V DC, 2A adapter features universal input voltage, multiple safety certifications including UL, CE, FCC, and RCM, and a compact size that fits easily into tight spaces. Its protections against over-voltage, over-load, and short circuits ensure safe operation in various environments. Whether for industrial, commercial, or personal use, this power supply guarantees consistent performance and durability for all your compatible devices.
Buy Multicomp MP001996 now and experience reliable power with high efficiency and comprehensive safety protections for your electronic devices.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001996?
You can click on the BUY or RFQ button to purchase MP001996 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001996?
You can download the MP001996 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001996?
MULTICOMP PRO
