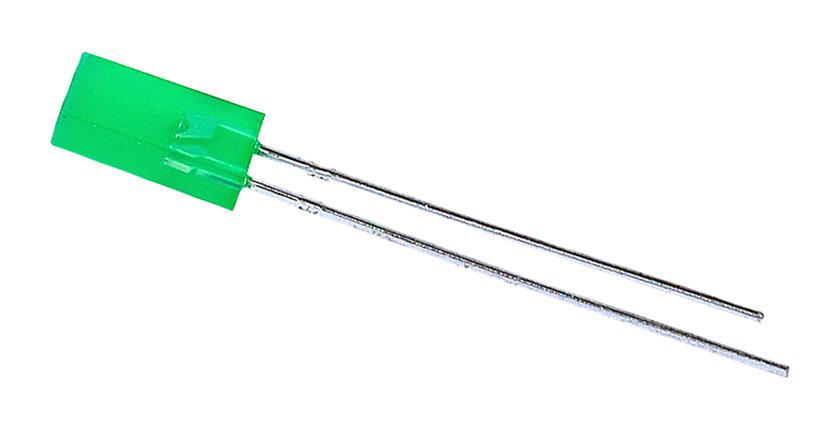

MULTICOMP-PRO MCL453GD Rectangular Green LED
The MCL453GD is a durable, through-hole green LED with a diffused lens, made from Gallium Phosphide (GaP). It emits at 568nm with a wide viewing angle of 120°, ideal for industrial and electronic indicator applications. It operates at 5V reverse voltage and 10µA reverse current, with a temperature range of -40°C to 85°C, ensuring reliable performance in various environments. Featuring low power dissipation and a forward voltage of around 1.7V at 20mA, this LED provides bright, efficient illumination suitable for various electronic projects and indicators.
MULTICOMP-PRO MCL453GD Rectangular Green LED Specifications:
- Material: Gallium Phosphide (GaP)
- Emission Wavelength: 568nm
- Lens Color: Green Diffused
- Viewing Angle: 120°
- Luminous Intensity: 3.2 mcd (typical at 20mA)
- Reverse Voltage: 5V
- Reverse Current: 10µA
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Lead Soldering Temperature: 260°C for 5 seconds, 4.6mm from body
- Forward Voltage: 1.7V (typical at 20mA)
- Power Dissipation: up to 85mW
- Peak Forward Current: 100mA (duty cycle 1/10 at 1kHz)
- Dimensions: 2mm x 5mm, rectangular shape
Buy the Multicomp Series Rectangular Green LED: MCL453GD
Order the Multicomp Series Rectangular Green LED MCL453GD online today and enjoy fast delivery of this reliable, energy-efficient indicator LED suitable for industrial and electronic projects. Featuring a diffused lens and a 568nm emission wavelength, this LED offers a wide 120° viewing angle and operates efficiently from -40°C to 85°C. Its compact 2mm by 5mm size makes it ideal for various applications, providing bright, consistent illumination with low power consumption, ensuring your electronics or indicators stand out with clarity and effectiveness.
Buy Multicomp Series MCL453GD green LED now and experience reliable, bright illumination perfect for industrial indicator applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL453GD?
You can click on the BUY or RFQ button to purchase MCL453GD from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL453GD?
You can download the MCL453GD datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL453GD?
MULTICOMP-PRO
