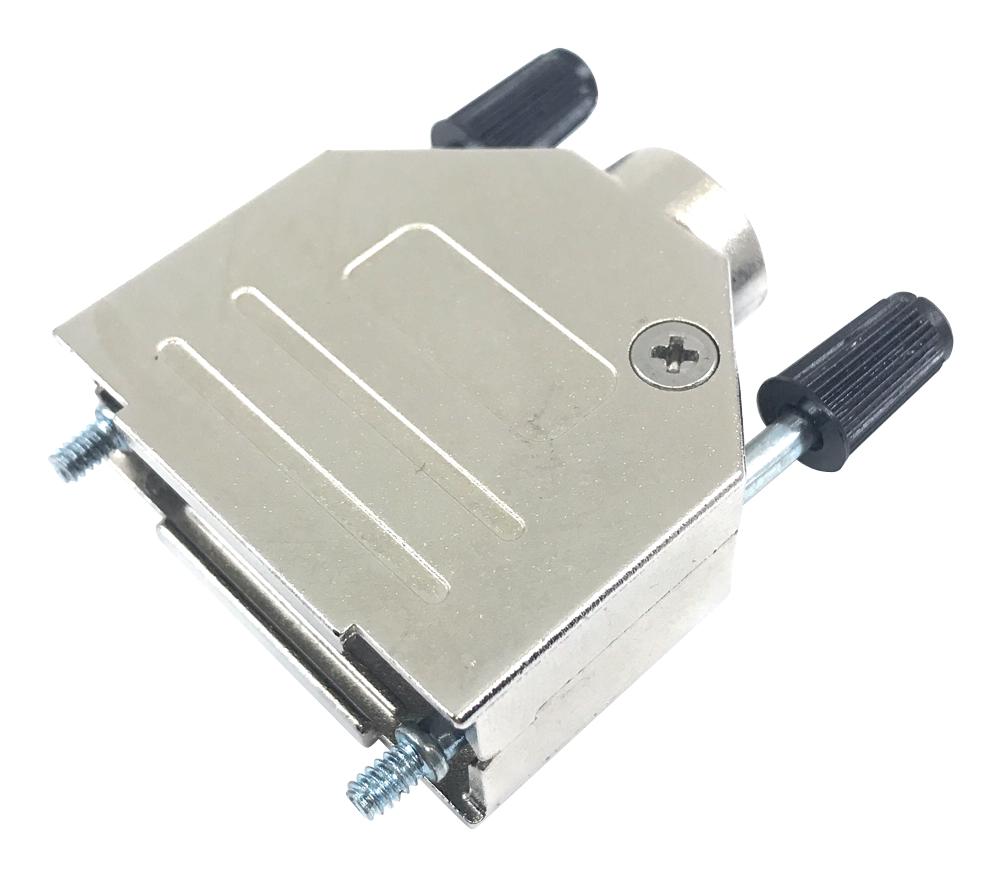

MULTICOMP PRO MP002008 D-Sub Connector with Backshell
This D-Sub connector with backshell offers reliable shielding against electromagnetic and RF interference, ensuring signal integrity in various applications. Made of zinc with nickel plating, it withstands temperatures from -40°C to 120°C. The assembled backshell features polycarbonate material UL94 VO, with cable strain relief for cables up to 17mm in diameter. Designed for easy installation, it includes long UNC 4-40 jackscrews, Taptite thread screws, and straight cable outlets. Suitable for uses requiring durable and secure connections with high attenuation over 30 MHz to 1 GHz, and excellent electrical performance.
MULTICOMP PRO MP002008 D-Sub Connector with Backshell Specifications:
- Backshell Material: Zinc, Ni-plated
- Temperature Range: -40°C to 120°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: <17mm
- Locking Screws: Long UNC 4-40, Black
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy, Gold over Nickel
- Contact Resistance: > 1000MΩ
- Withstand Voltage: 1kV for 1 min
- Insulator Resistance: > 1000MΩ
- Stamped Contacts: Class 3, 100 minimum per connector
- Dimensions: Vary per part number, approx. 34-70.9 mm in length and 38.3-52.2 mm in width
Buy the Buy Multicomp D-Sub Connector Part Number MP002008 Online
Experience the robust performance of the D-Sub connector with backshell from Multicomp. Designed for versatile electronic applications, it provides excellent RF and electromagnetic shielding, high-temperature resistance from -40°C to 120°C, and easy assembly with no special tools required. The connector’s zinc alloy shell is tin-plated for durability, while the polycarbonate backshell offers reliable cable strain relief for cables up to 17mm diameter. Ideal for ensuring long-lasting, interference-free connections in demanding environments.
Buy Multicomp D-Sub connector MP002008 now and ensure secure, shielded connections with high attenuation and easy installation for reliable electronic setups.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002008?
You can click on the BUY or RFQ button to purchase MP002008 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002008?
You can download the MP002008 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002008?
MULTICOMP PRO
