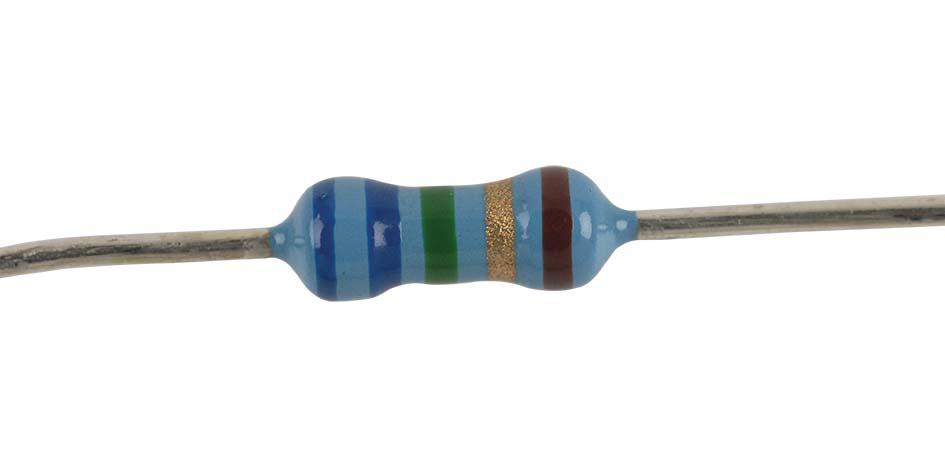

MULTICOMP PRO MCMF0W4FF665JA50 Metal Film Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features an epoxy coating over a vacuum-deposited metal film, providing excellent moisture resistance. The nichrome resistor element delivers stable performance across various environmental conditions. Additional features include EIA standard color coding, availability of non-flame types, low noise levels, low voltage and temperature coefficients, and a wide range of precision values in a compact package. Custom resistance values outside the standard range can be supplied on a case-by-case basis. Multicomp Pro products are rated 4.6 out of 5 stars, come with a 12-month limited warranty, and 96% of customers would recommend them to a friend.
MULTICOMP PRO MCMF0W4FF665JA50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: calculated from P=0.25W and resistance
- Operating Temp. Range: -55°C to +155°C
- Resistance Range: 100 to 1MΩ
- Resistance Tolerance: ±1% or ±2.5% depending on series
- Dielectric Withstanding Voltage: 400V
- Insulation Resistance: Min. 10,000 MΩ around body
- Temperature Coefficient: ±50 PPM/°C
- Construction: Ceramic body, metal film resistance, steel end caps, annealed copper leads
- Soldering Temp.: 245°C ± 3°C for 2-3 sec.
- Vibration Resistance: 55Hz, 3 planes, 2 hrs each
- Humidity Resistance: 40°C, 90-95% RH for 1000 hours
- Physical dimensions vary by model, e.g., diameter 2.5mm, length around 6.8mm, coating insulation in sky blue epoxy, with standard color coding for resistance value.
Buy the Multicomp Series MCMF Metal Film Resistor: MCMF0W4FF665JA50
Order the Metal Film Resistor online today and enjoy quick delivery, competitive pricing, and assured quality. Perfect for precision electronics, circuit design, and industrial applications, this resistor offers excellent stability, moisture resistance, and low noise operation. Whether for prototype development or large-scale manufacturing, buying online ensures instant access to a wide range of resistance values and customized solutions. Enhance your project’s reliability with our premium metal film resistors—easy to purchase, with comprehensive support and fast shipping. Experience top-tier performance directly from your trusted supplier now.
Buy Multicomp Metal Film Fixed Resistor now and experience unmatched reliability, low noise, and precise performance suitable for industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF0W4FF665JA50?
You can click on the BUY or RFQ button to purchase MCMF0W4FF665JA50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4FF665JA50?
You can download the MCMF0W4FF665JA50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF0W4FF665JA50?
MULTICOMP PRO
