MULTICOMP PRO MP002009 D-Sub Connector
The D-Sub connector with backshell is a durable, RoHS-compliant connector designed for high performance in electronic assemblies. Available in sizes 9, 15, 25, and 37, it minimizes electromagnetic and RF interference, ensuring signal integrity. Features include long jackscrews with UNC 4-40 threads for secure attachment, and it accepts round foil and braided cables. Made of zinc with nickel plating and thermally resistant polycarbonate backshell, it withstands temperatures from -40°C to 120°C. The connector has a copper alloy contact pins with gold-over-nickel plating, rated for voltages up to 1kV, with >40dB attenuation between 30 MHz and 1GHz for reliable data transmission.
MULTICOMP PRO MP002009 D-Sub Connector Specifications:
- Material: Zinc, Ni-plated (Backshell)
- Temperature Range: -40°C to 120°C (Backshell), -55°C to +105°C (D-Sub connector)
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: <17mm
- Locking Screws: Long jackscrews UNC 4-40 with black color
- Attenuation Factor: > 40 dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Gold over Nickel
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1kV for 1 min
- Stamped Contacts: Class 3, minimum 100 inserts
- Dimensions: Vary by part number, approximately 34-70.9 mm in length and 38.3-52.2 mm in width

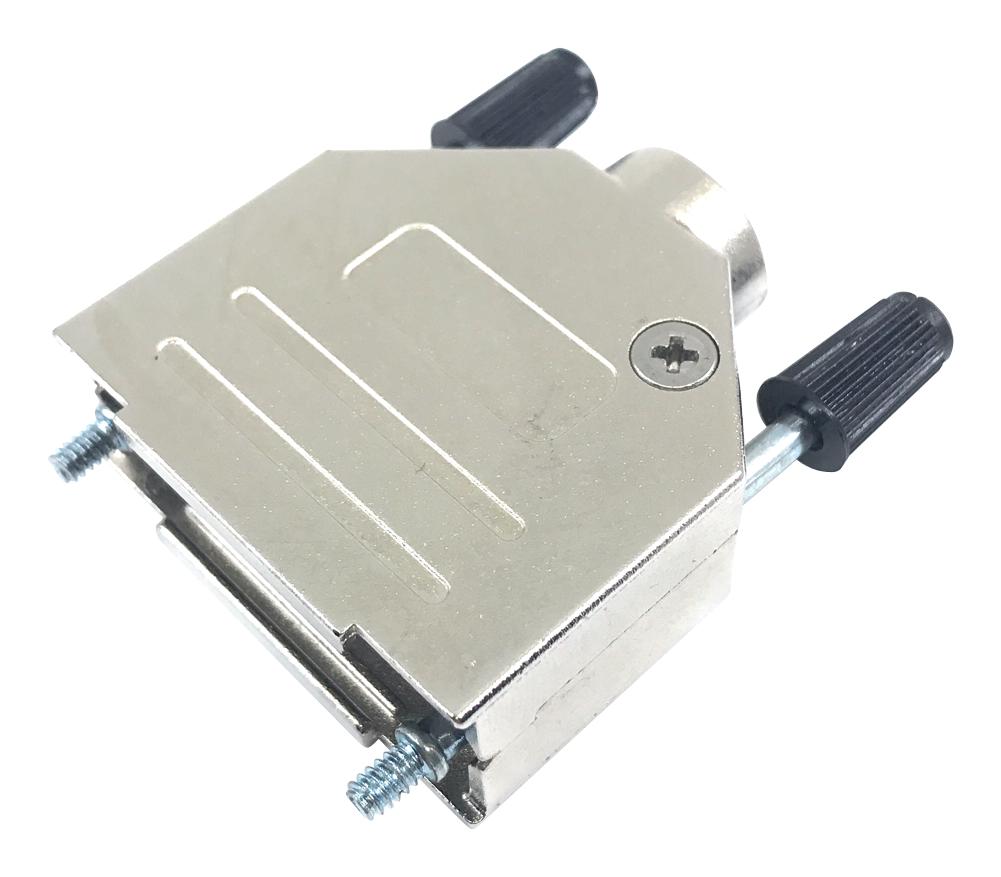

Buy the Buy Multicomp D-Sub Connectors with Backshell Part Number MP002009 Online
Enhance your electronic assemblies with the reliable, RoHS-compliant D-Sub connector with backshell. Designed for secure cable connections, it offers excellent EMI/RF interference reduction, robust construction with zinc and thermoplastic materials, and long jackscrews for easy installation. Suitable for sizes 9, 15, 25, and 37, it features gold-plated contact pins for excellent conductivity. Withstanding temperatures from -40°C to 120°C and rated for 1kV, this connector ensures high performance and durability for industrial and professional applications. Purchase online today for fast delivery and dependable quality.
Order your Multicomp Series MP002009 durable D-Sub connector with backshell today and ensure secure, high-performance connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002009?
You can click on the BUY or RFQ button to purchase MP002009 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002009?
You can download the MP002009 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002009?
MULTICOMP PRO
