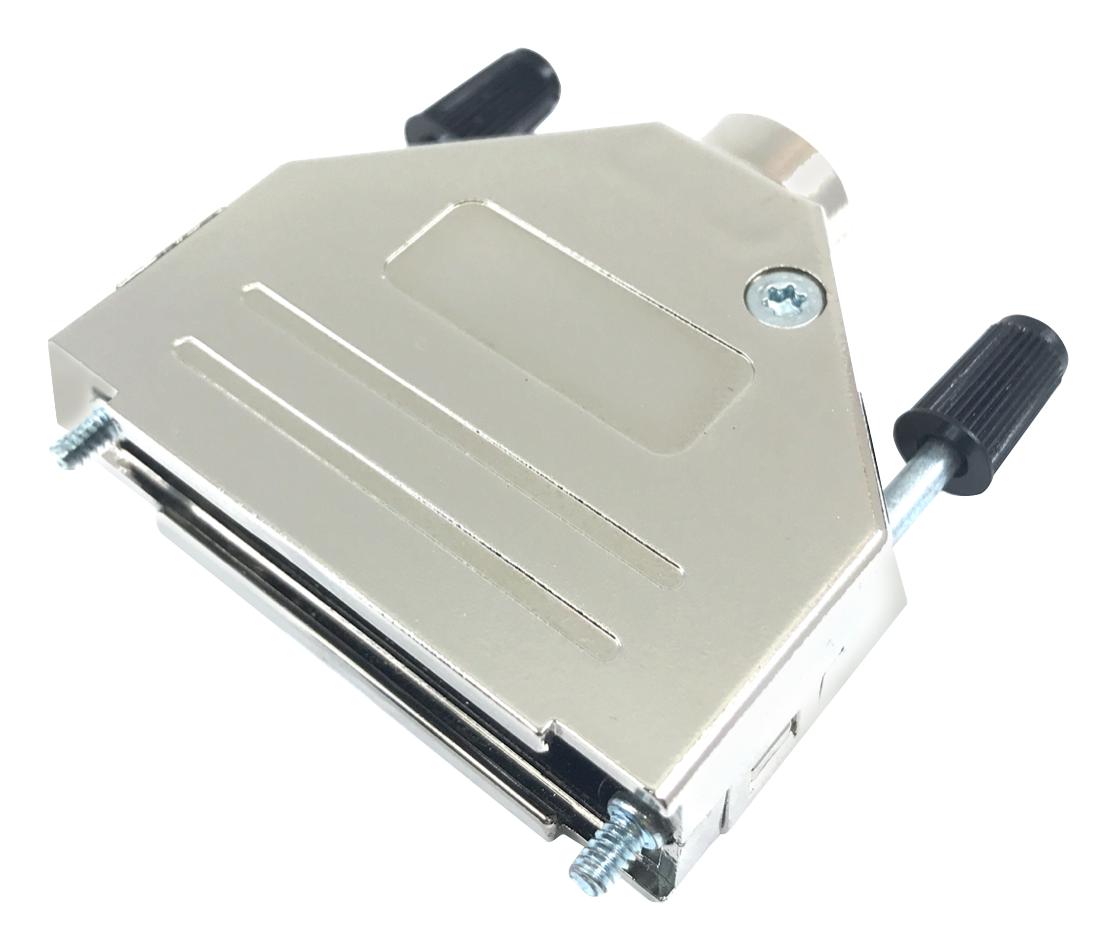

MULTICOMP PRO MP002019 D-Sub Connector with Backshell
This D-Sub connector with backshell enhances electrical performance and shielding, minimizes electromagnetic interference, and is compatible with round foil and braided cables. Made from durable materials, it features long jackscrews with UNC 4-40 threads for secure fastening, and accepts cable diameters from 3mm to 13mm. Compliant with RoHS standards, it offers excellent attenuation (>40 dB between 30 MHz and 1 GHz), high insulation resistance (>1000MΩ), and withstand voltage capacity of 1kV for one minute, ensuring reliability in industrial environments. The shell is steel, tin-plated, while the insulator is PBT UL94 V-0, making it suitable for demanding applications requiring high durability and precision.
MULTICOMP PRO MP002019 D-Sub Connector with Backshell Specifications:
- Material: ABS, Ni-plated
- Temperature Range: -40°C to 105°C
- Cable Strain Relief: Polycarbonate, UL94 V-0, 3mm to 13mm diameter
- Locking Screws: Long jackscrews UNC 4-40, black
- Attenuation Factor: >40 dB between 30 MHz and 1 GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Gold over Nickel
- Insulator Resistance: >1000MΩ
- Withstand Voltage: 1kV for 1 min
Buy the Multicomp RoHS D-Sub Connectors with Backshell for Industrial Applications
Acquire the multicom D-Sub connector with backshell online today and ensure reliable connections with excellent shielding, high durability, and easy assembly. These connectors are RoHS compliant, built with high-quality materials, and designed to withstand harsh environments. Ideal for industrial, military, and telecommunications applications, they feature secure long jackscrews, broad cable compatibility, and superior attenuation, providing optimal performance. Order now and enhance your electronic systems with trusted, high-performance connection solutions.
Buy multicomp D-Sub connectors with backshell now and experience unmatched reliability and performance in industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002019?
You can click on the BUY or RFQ button to purchase MP002019 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002019?
You can download the MP002019 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002019?
MULTICOMP PRO
