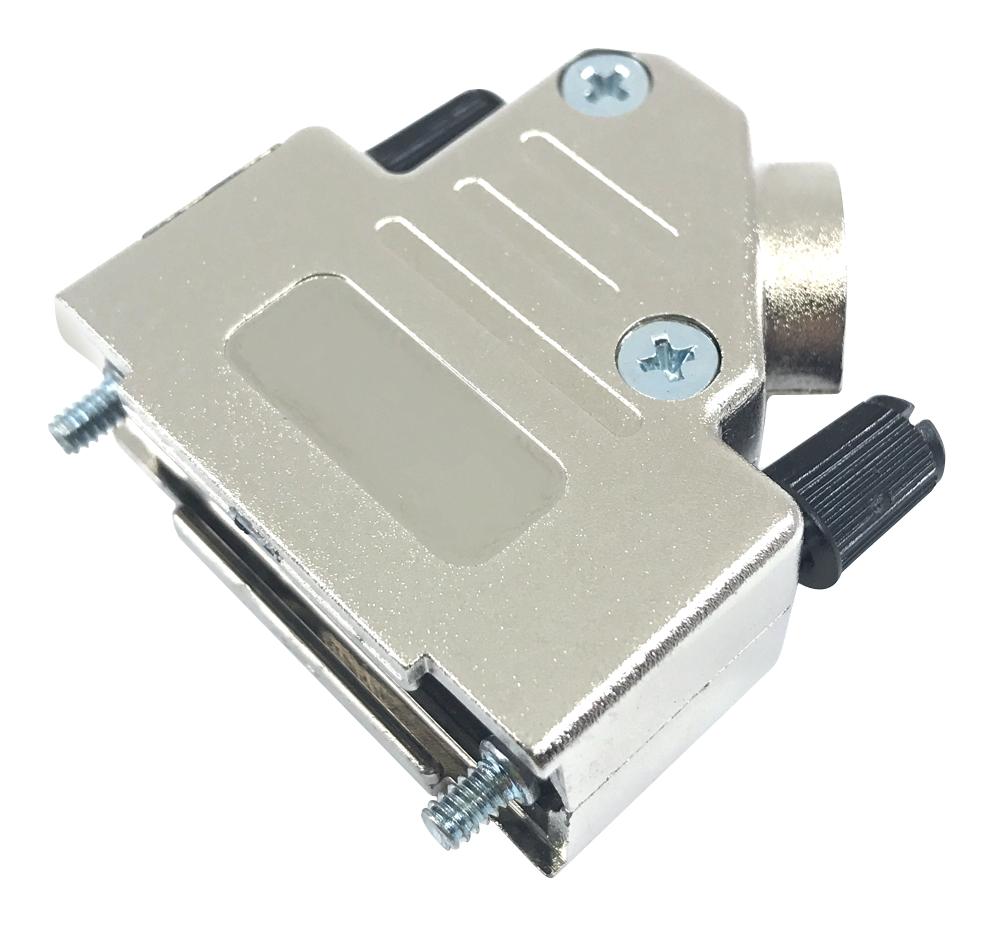

MULTICOMP PRO MP002020 D-Sub Connector with Backshell
This D-Sub connector with backshell is designed for high-reliability connections in electronic systems, featuring an angled cable outlet and robust construction. Made from ABS and nickel-plated materials, it operates within a temperature range of -40°C to 105°C, ensuring durability in harsh environments. The backshell offers effective electromagnetic interference shielding and accepts cable diameters from 3mm to 13mm, with long UNC 4-40 jackscrews for secure assembly. Compliant with VDE 0871 and FCC standards, it provides attenuation over 40 dB between 30 MHz and 1 GHz, ensuring signal integrity.
MULTICOMP PRO MP002020 D-Sub Connector with Backshell Specifications:
- Material: ABS, Ni-plated
- Temperature Range: -40°C to 105°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long jackscrews UNC 4-40
- Jackscrew Colour: Black
- Assembly Screws: Self tapping
- Cable Outlet: Angled
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Insulator Material: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Gold over Nickel
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 min
Buy the Buy multicomp D-Sub Connectors with Backshell Part Number MP002020 Online
Purchase the multicomp D-Sub connector with backshell online today for secure, high-performance connections. Featuring EMI shielding, flexible cable compatibility from 3mm to 13mm, and durable construction suitable for demanding environments. Easy to install without special tools, the connector ensures signal integrity with attenuation over 40 dB between 30 MHz and 1 GHz. Ideal for electronic systems requiring reliable, interference-free connections, this angled connector offers long jackscrews and robust materials for maximum durability and performance.
Buy multicomp MP002020 now and experience reliable EMI shielding with angled cable outlet and secure long jackscrews for robust connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002020?
You can click on the BUY or RFQ button to purchase MP002020 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002020?
You can download the MP002020 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002020?
MULTICOMP PRO
