MULTICOMP PRO MP002033 D-Sub Connector

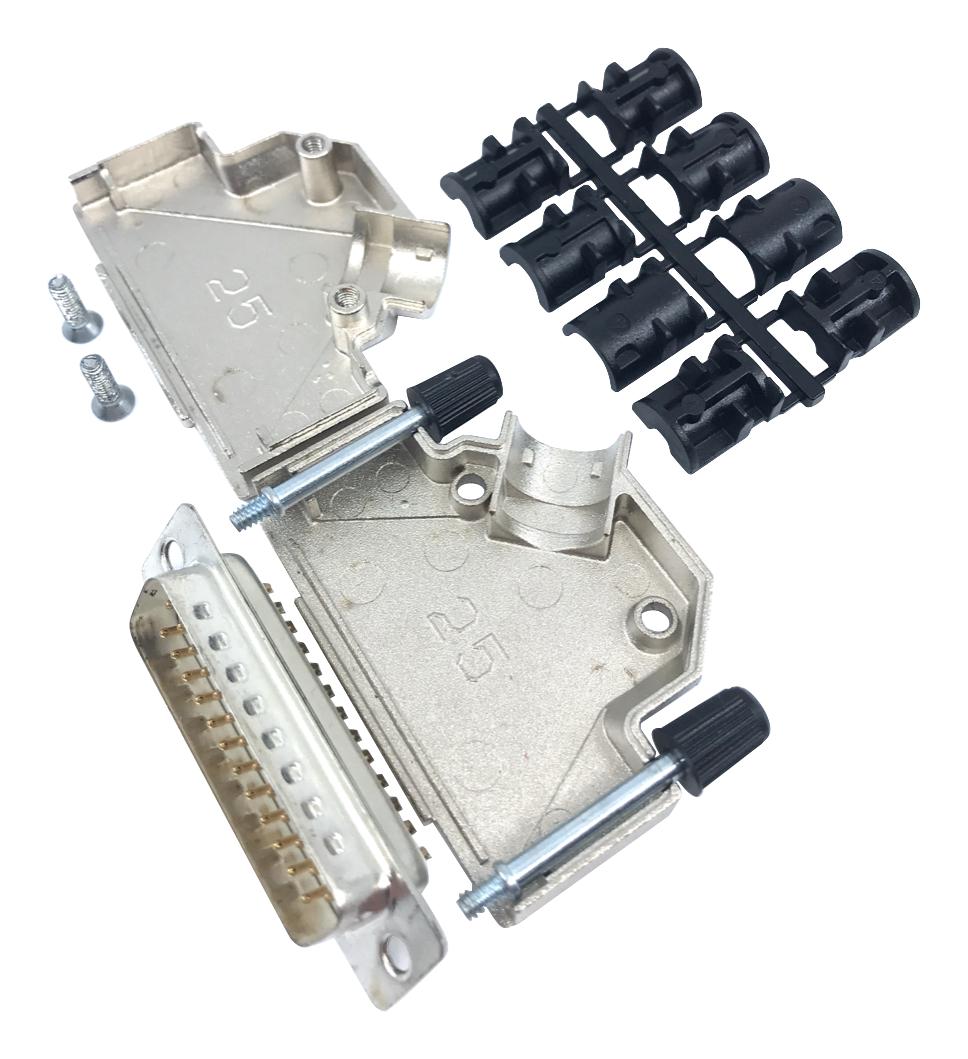

This angled D-Sub connector with backshell provides reliable shielding and interference minimization for industrial and electronic applications. Made from zinc with nickel plating, it supports cable diameters from 13 to 23 mm, suitable for round foil and braided cables. The connector features long UNC 4-40 jackscrews for secure attachment, and the backshell is constructed from UL94 V-0 polycarbonate with a zinc, nickel-coated shell. It withstands temperatures from -55°C to +105°C, has over 1000 MΩ insulator resistance, and meets safety standards including VDE, FCC, and EU directives. Ideal for secure, RF, and electromagnetic compatibility applications.
MULTICOMP PRO MP002033 D-Sub Connector Specifications:
- Material: Zinc, Ni-plated (Backshell); PBT insulator, steel shell, copper alloy contact pins with gold over nickel plating
- Temperature Range: -55°C to +105°C (connector); -40°C to +120°C (backshell)
- Cable Diameter Compatibility: 13 to 23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1 GHz
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 min
- Connector Types: DE-9, DA-15, DB-25, DC-37; Female and Male variants available
- Standards: VDE 0871, FCC 20780, 89/336/EU RoHS compliant
- Dimensions: Refer to part number table with sizes approximately 34–69.7 mm in length and 36.2–40.2 mm in width
Buy the Multicomp Reliable MP002033 – Versatile D-Sub Connector for Industrial Applications
Enhance your electronic and industrial projects with the multicomp MP002033 angled D-Sub connector. Featuring a zinc backshell, high temperature tolerance, and excellent EMI shielding, it ensures reliable performance and durability. Suitable for various cable diameters, it offers secure locking with long UNC 4-40 jackscrews and complies with safety standards such as VDE and FCC. Whether for RF, industrial, or high-interference environments, purchase online now for fast delivery, competitive pricing, and trusted quality to elevate your connectivity solutions.
Order your multicomp series MP002033 angled D-Sub connector today and ensure secure, interference-free connections with superior shielding for demanding environments.
