MULTICOMP PRO MP002037 D-Sub Connector

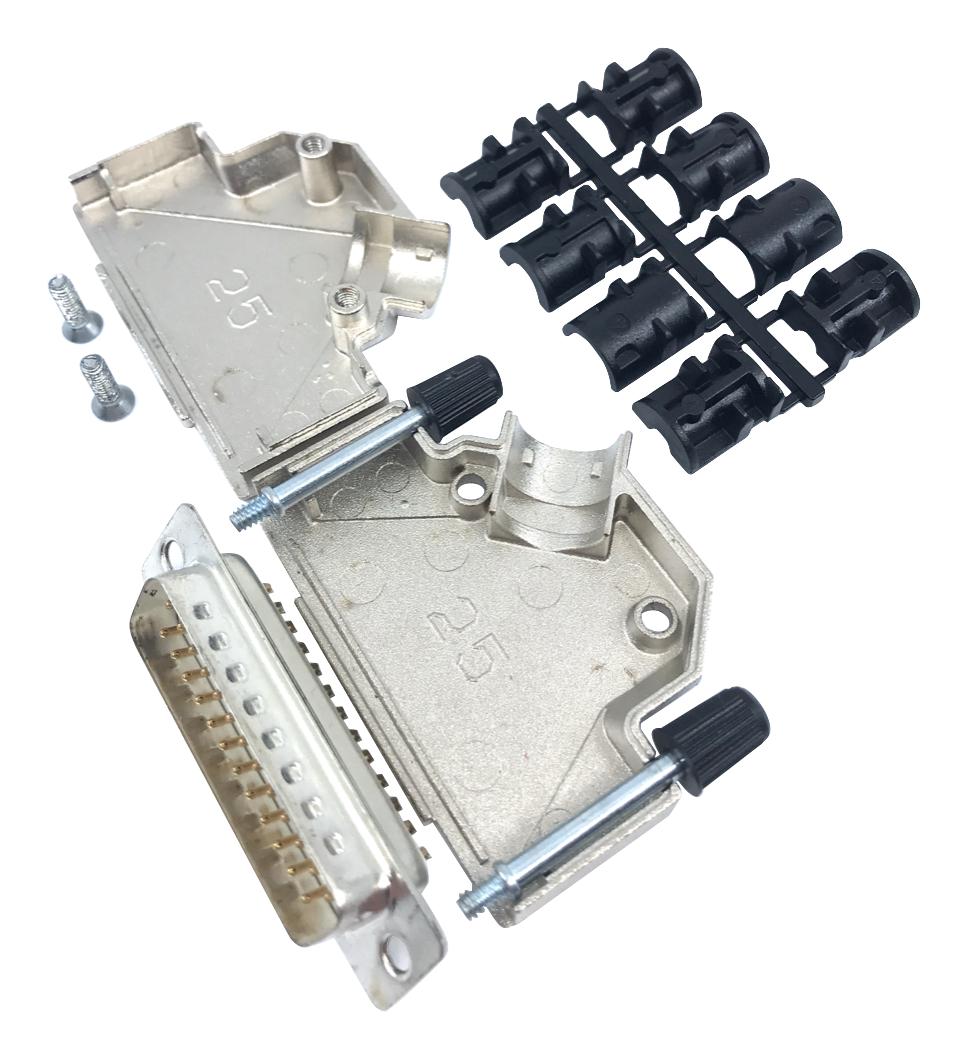

This angled D-Sub connector with backshell provides reliable electrical connection for industrial and electronic applications. Made from zinc with nickel plating, it operates within a temperature range of -55°C to +105°C, ensuring durability and stability in various environments. The connector features copper alloy contacts with gold over nickel plating for excellent conductivity and corrosion resistance. Its design accepts round foil and braided cables with diameters between 13 and 23 mm, and includes long UNC 4-40 jackscrews for secure attachment. Suitable for RF and electromagnetic interference shielding, it complies with CE and UL standards, making it ideal for industrial automation, data communication, and control systems.
MULTICOMP PRO MP002037 D-Sub Connector Specifications:
- Material: Zinc, Ni-plated
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate UL94 VO
- Cable Diameter: 13 to 23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Gold over Nickel
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 2.1 kV for 1 min
Buy the Multicomp Pro MP002037 – Reliable Angled D-Sub for Industrial Applications
Purchase the D-Sub connector with backshell today and enhance your electronic and industrial wiring setups. Designed for robustness and reliable shielding, this angled connector features long UNC 4-40 jackscrews for secure fastening and accepts cables with diameters from 13 to 23 mm. Made from zinc with nickel plating and gold-over-Nickel-plated copper contacts, it operates within a wide temperature range of -55°C to +105°C. Compliant with UL and CE standards, it is suitable for automation, control systems, and RF shielding applications, ensuring durability and high performance in demanding environments.
Order your Multicomp Pro MP002037 angled D-Sub connector with backshell today and ensure secure, interference-resistant connections for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002037?
You can click on the BUY or RFQ button to purchase MP002037 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002037?
You can download the MP002037 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002037?
MULTICOMP PRO
