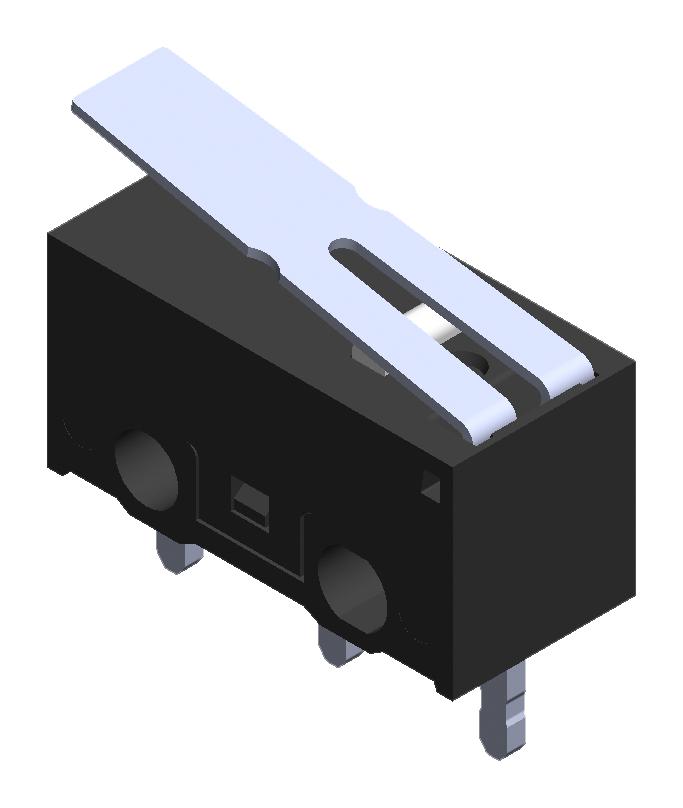

MULTICOMP PRO MP005562 Microswitch Switch
Engaging and reliable through-hole snap action microswitches designed for various electronic and household applications. These SPST, SPDT, and SPST-NC models feature long operating life, high durability, and resistance to flux. Rated for 0.1A at 30V DC and 3A at 125V AC, they undergo millions of cycles, ensuring dependable performance. Suitable for mouse, projector, communication, security, and control device applications, these switches come with different actuators, including hinge, bent, pin plunger, and simulated roller levers, with operating temperatures from -25°C to +75°C.
MULTICOMP PRO MP005562 Microswitch Switch Specifications:
- Rated for 0.1A at 30V DC and 3A at 125V AC
- Electrical Durability: 8,000 cycles MIN.
- Mechanical Durability: 1,000,000 cycles MIN.
- Contact Resistance: 100mΩ MAX.
- Insulation Resistance: 100MΩ MIN.
- Dielectric Strength: AC 1500V 1 minute between current-carrying metal parts and ground, non-current parts
- Operating Temperature: -25°C to +75°C
- Actuator types: Hinge, Bent, Pin Plunger, Simulated Roller Lever
- Physical dimensions vary per actuator, typically around 0.8 to 3.0 mm in length/height
- Mounting: Through hole with snap action, PCB terminal models available
- Certification: UL, RoHS compliant
- Suitable for electronic equipment, control panels, household appliances, communication devices, security systems, and projectors
Buy the MultiComp Series Microswitch: Model MP005562
Order the MultiComp Series Microswitch MP005562 online today and benefit from dependable operation, high durability, and versatile actuator options. Perfect for controlling electronic circuits in household appliances, security systems, projectors, and communication equipment. This reliable switch withstands millions of cycles, ensuring long-term performance. Easy to install with through-hole mounting, RoHS compliance, and rated for 0.1A at 30V DC and 3A at 125V AC. Enhance your device performance with this premium microswitch now.
Buy MultiComp MP005562 microswitch now and experience unmatched reliability and long operational life for your electronic and household devices.
