MULTICOMP PRO MP006456 metal oxide resistors

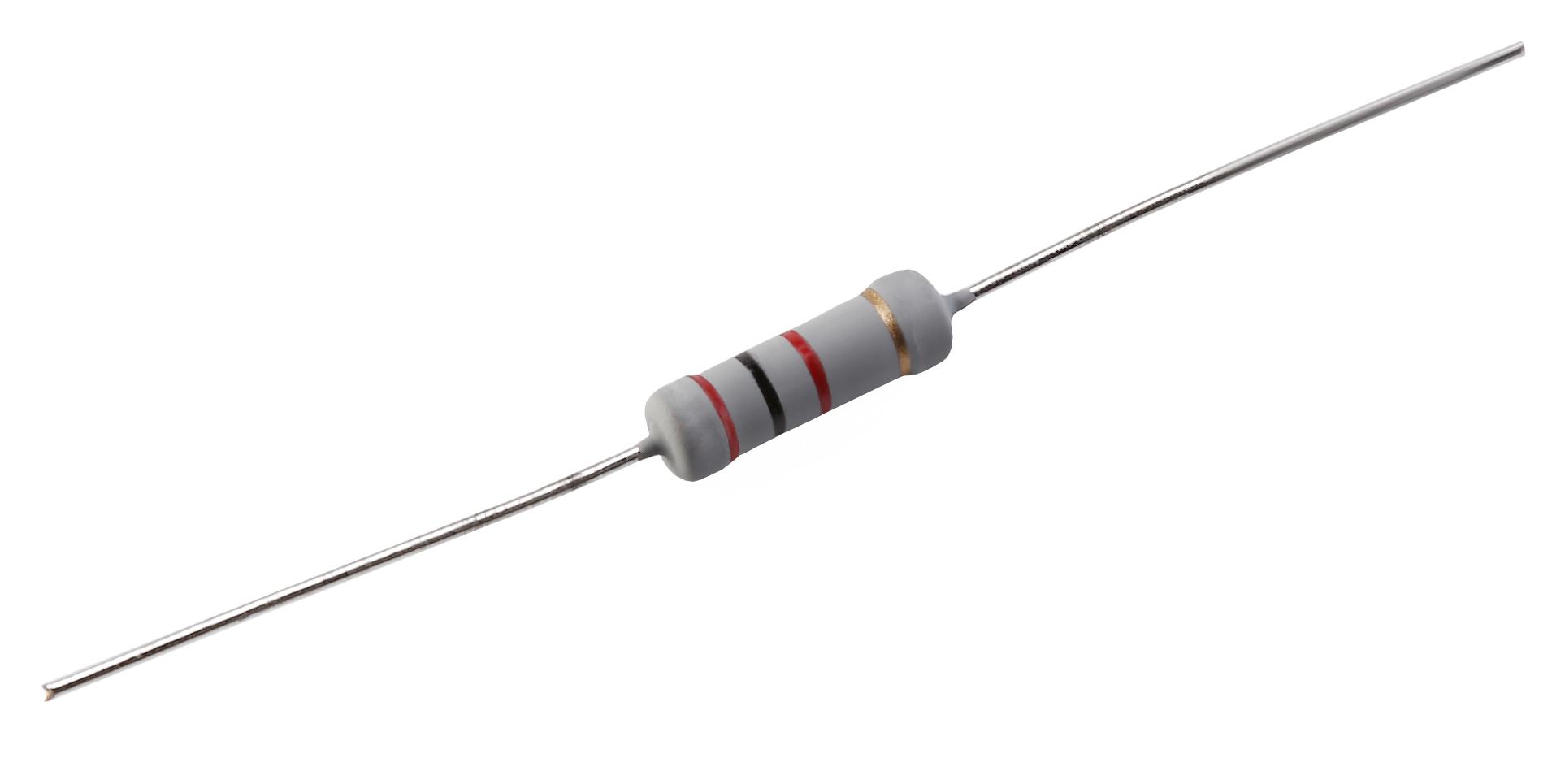

High-reliability axial leaded metal oxide film resistor rated at 1 watt, with resistance values ranging from 10 ohms to 3.9 megaohms. Designed for applications requiring excellent power handling, thermal stability, and long-term stability, these resistors feature a ceramic rod construction with tinned iron caps, non-flame resistant coating, and color coding for easy identification. Suitable for telecommunications, medical equipment, and other industrial uses, they withstand overloads up to 2.5 times rated voltage and operate efficiently across temperatures from -55°C to +105°C.
MULTICOMP PRO MP006456 metal oxide resistors Specifications:
- Power Rating: 1 W
- Resistance Range: 10Ω to 3.9MΩ
- Tolerance: ±2% or ±5%
- Temperature Coefficient: +200PPM/°C
- Maximum Operating Voltage: 500V
- Overload Voltage: 2.5×P*R or maximum listed
- Dielectric Resistance: >10000 MΩ
- Insulation Resistance: >10000 MΩ
- Working Temperature: -55°C to +105°C
- Body Color: Grey (standard), Pink (high power)
- Solderability: >95% coverage at 260±5°C for 3-4 seconds
- Endurance Test: +1.5% change after 1000 hours at rated power
- Short Time Overload: ±0.5% at 2.5×RCWV for 5 seconds
- Pulse Overload: ±1% at 4×RCWV for 10,000 cycles
Buy the Multicomp Metal Oxide Film Resistors – Reliable Axial Leaded Components for Industrial Applications
Order Multicomp axial leaded metal oxide film resistors today through our online store and ensure your projects benefit from high reliability, thermal stability, and excellent overload capacity. Designed for industrial, telecommunications, and medical applications, these resistors provide consistent performance under demanding conditions. With resistance values from 10 ohms to 3.9 megaohms, ±2% and ±5% tolerance options, and robust construction, they are perfect for precise, high-power electronic applications. Shop now for fast delivery and competitive pricing.
Buy Multicomp metal oxide film resistors now and experience unmatched reliability, thermal stability, and high surge capacity suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006456?
You can click on the BUY or RFQ button to purchase MP006456 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006456?
You can download the MP006456 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006456?
MULTICOMP PRO
