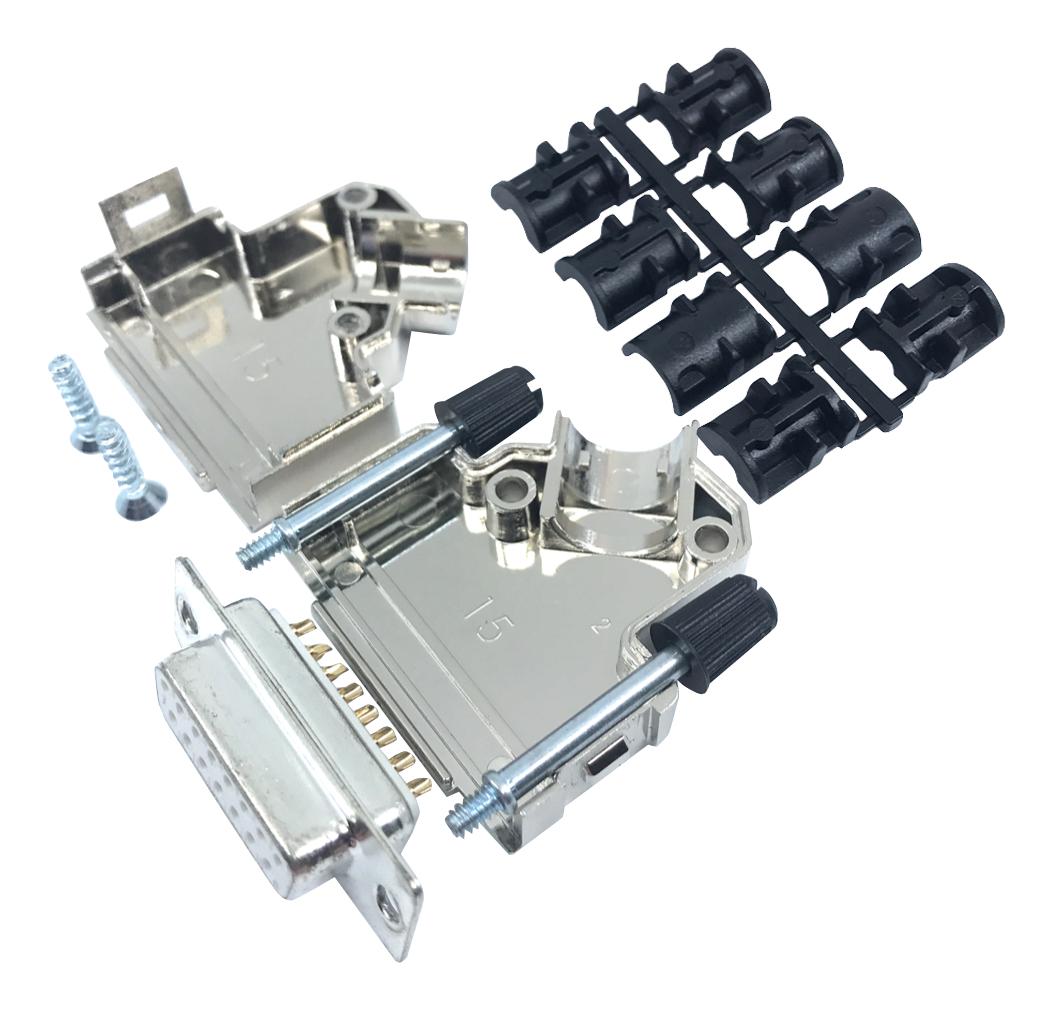

MULTICOMP PRO MP002048 D-Sub Connector with Backshell
This D-Sub connector with backshell is designed to minimize electromagnetic and RF interference, offering reliable connectivity for industrial and electronic applications. Constructed with high-quality materials, it features long jackscrews with UNC 4-40 threads for secure assembly, accepts round foil and braided cables, and is RoHS compliant. The backshell is made of ABS with Ni-plating, with a polycarbonate cable outlet that handles cable diameters from 3mm to 13mm. It withstands temperatures from -40°C to 105°C, ensuring durability in harsh environments. The connector provides over 40 dB attenuation between 30 MHz and 1 GHz to reduce signal noise effectively.
MULTICOMP PRO MP002048 D-Sub Connector with Backshell Specifications:
- Material: ABS, Ni-plated; Insulator: PBT, UL94 V-0; Shell: Steel, Tin-plated
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate, PC UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long jackscrews UNC 4-40 Thread, Black
- Attenuation Factor: > 40 dB between 30 MHz and 1GHz
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 2.1 kV for 1 minute
- Contact Pins: Copper alloy with Selective Gold over Nickel plating
- Stamped Contacts: Class 3, minimum of 100 inserts
- Cable Outlet: Angled
- Dimensions: Varies by model, typical length approximately 31 to 69.5 mm, width 36.2 to 40.2 mm
Buy the Multicomp RoHS Compliant D-Sub Connector – Reliable Backshell for Industrial Applications
Discover the high-quality multicomp D-Sub connector with backshell, designed for reliable, secure connections in industrial and electronic applications. Its robust construction features ABS and Ni-plated materials, while the angled cable outlet accommodates cables from 3mm to 13mm diameter. This connector withstands temperatures from -55°C to +105°C, offers over 40 dB attenuation, and is RoHS compliant. With long UNC 4-40 jackscrews, installation is quick and straightforward. Ensure interference-resistant, durable connectivity in demanding environments by ordering online today.
Buy multicomp D-Sub connector with backshell now and ensure secure, interference-free connections suitable for harsh industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002048?
You can click on the BUY or RFQ button to purchase MP002048 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002048?
You can download the MP002048 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002048?
MULTICOMP PRO
