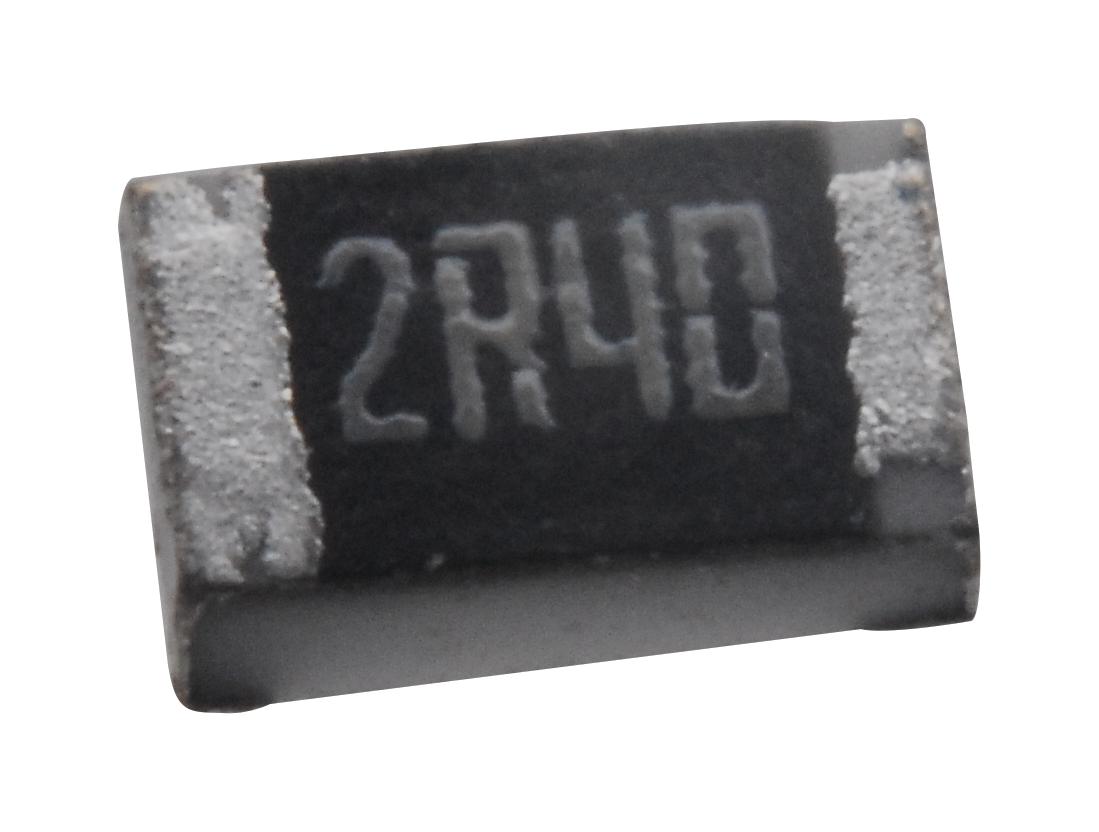

MULTICOMP PRO MC01W080512R40 thick film resistor
The Multicomp Pro MC series thick film chip resistors offer a wide resistance range from 1 ohm up to 10 megaohms, compatible with E96 and E24 series. Available in 0402, 0603, 0805, and 1206 sizes, these lightweight, compact resistors suit wave and reflow soldering, reducing assembly costs. They feature maximum voltages of 50V (0402, 0603), 150V (0805), and 200V (1206). Tolerance options include ±1%, ±2%, ±5%, with power ratings of 62.5mW, 100mW, and 125mW. The TCR varies from ±400 ppm/°C to ±100 ppm/°C across resistance values. Operating temperatures span -55°C to +155°C, with jumper options for all sizes, ensuring high reliability for industrial use. Rated 4.6/5 stars, these resistors come with a 12-month warranty and are highly recommended for quality performance.
MULTICOMP PRO MC01W080512R40 thick film resistor Specifications:
- Resistance Range: 1Ω to 10MΩ
- Sizes: 0402, 0603, 0805, 1206
- Tolerance: ±1%, ±2%, ±5%
- Power Ratings: 62.5mW, 100mW, 125mW
- Maximum Voltage: 50V (0402/0603), 150V (0805), 200V (1206)
- Temperature Coefficient: ±400 ppm/°C to ±100 ppm/°C
- Operating Temperature: -55°C to +155°C
- Suitable for wave and reflow soldering
- Features jumpers for all sizes
- Lightweight, compact design
- High reliability for industrial applications
- Rated 4.6 out of 5 stars, with a 12-month warranty
Buy the Multicomp Thick Film – Reliable Resistors for Industrial Applications
Experience high-quality performance with the Multicomp Series MC0805 thick film resistors, designed for industrial needs. With resistance values ranging from 1 ohm to 10 megaohms, these lightweight and compact resistors are ideal for wave and reflow soldering processes, helping reduce assembly costs. They offer tolerance options of ±1%, ±2%, and ±5%, with power ratings up to 125mW, and maximum voltages suited for precise circuit design. Operating across -55°C to +155°C, these reliable resistors feature jumpers for all sizes and are highly recommended for durability and performance in demanding industrial environments.
Order your Multicomp Series MC0805 resistance resistor today and ensure your projects benefit from dependable quality and precise performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC01W080512R40?
You can click on the BUY or RFQ button to purchase MC01W080512R40 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC01W080512R40?
You can download the MC01W080512R40 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC01W080512R40?
MULTICOMP PRO
