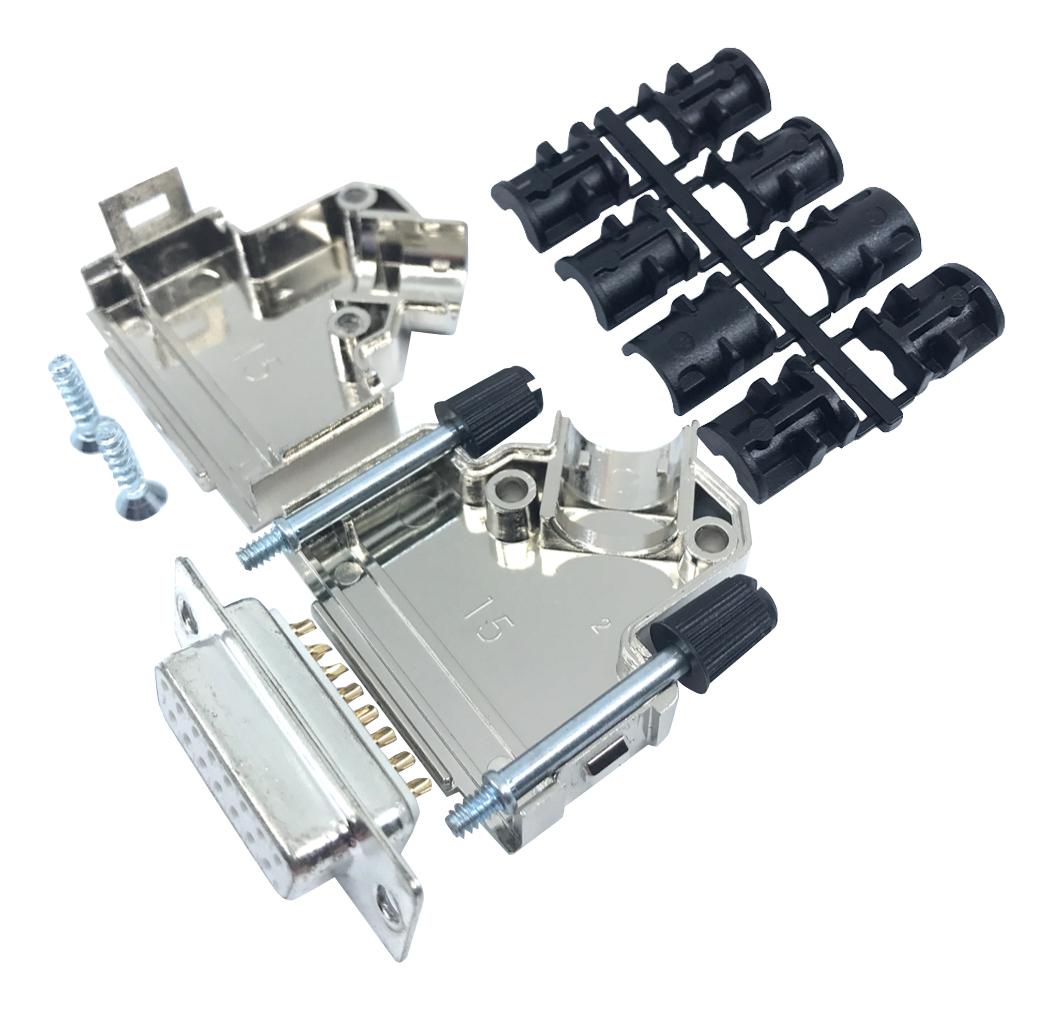

MULTICOMP PRO MP002050 D-Sub Connector with Backshell
The D-Sub connector with backshell offers reliable shielding and strain relief for industrial and electronic applications. It features an angled outlet, high-quality materials, and compatibility with various cable sizes. Suitable for minimizing electromagnetic interference, it is approved according to VDE 0871 and FCC standards, equipped with long UNC 4-40 jackscrews for secure connections. The connector operates within a temperature range of -55°C to +105°C, with a copper alloy contact and gold over nickel plating for durability and optimal conductivity, making it ideal for professional, industrial, and communications environments.
MULTICOMP PRO MP002050 D-Sub Connector with Backshell Specifications:
- Material: ABS, Ni-plated shell; PBT, UL94 V-0 insulator; steel, tin-plated shell
- Temperature Range: -55°C to +105°C (connector), -40°C to 105°C (backshell)
- Cable Strain Relief: Polycarbonate, PC UL94 VO; accepts 3mm to 13mm diameter cables
- Locking Screws: Long jackscrews UNC 4-40, black-colored
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Contact Pins: Copper alloy with selective gold over nickel plating
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 2.1 kV for 1 minute
- Assembly Screws: Self-tapping
- Cable Outlet: Angled
- Dimensions (mm): MP002050 - A: 39.3, B: 40.2
- Certification: VDE 0871, FCC 20780, 89/336/EU
- Connector Type: D-Sub with integrated backshell
- Compatibility: DE-9, DA-15, DB-25, DC-37 formats
- Application: Shielded connections, RF and EMI filtering in industrial equipment
Buy the Multicomp Pro MP002050 – Reliable D-Sub Connector with Backshell for Industrial Applications
Enhance your electronic and industrial setups with the high-quality D-Sub connector with backshell, offering excellent EMI shielding and strain relief. Designed to operate in harsh environments with a temperature range from -55°C to +105°C, it features durable materials like steel, copper alloy contacts, and UL94 V-0 insulators. Easy to assemble with self-tapping screws and long UNC 4-40 jackscrews, it ensures secure, interference-free connections. Ideal for RF, communication, and industrial automation, purchase online today for reliable performance.
Buy Multicomp Pro MP002050 now and experience unmatched reliability, secure connections, and effective EMI shielding for your industrial and electronic projects.
