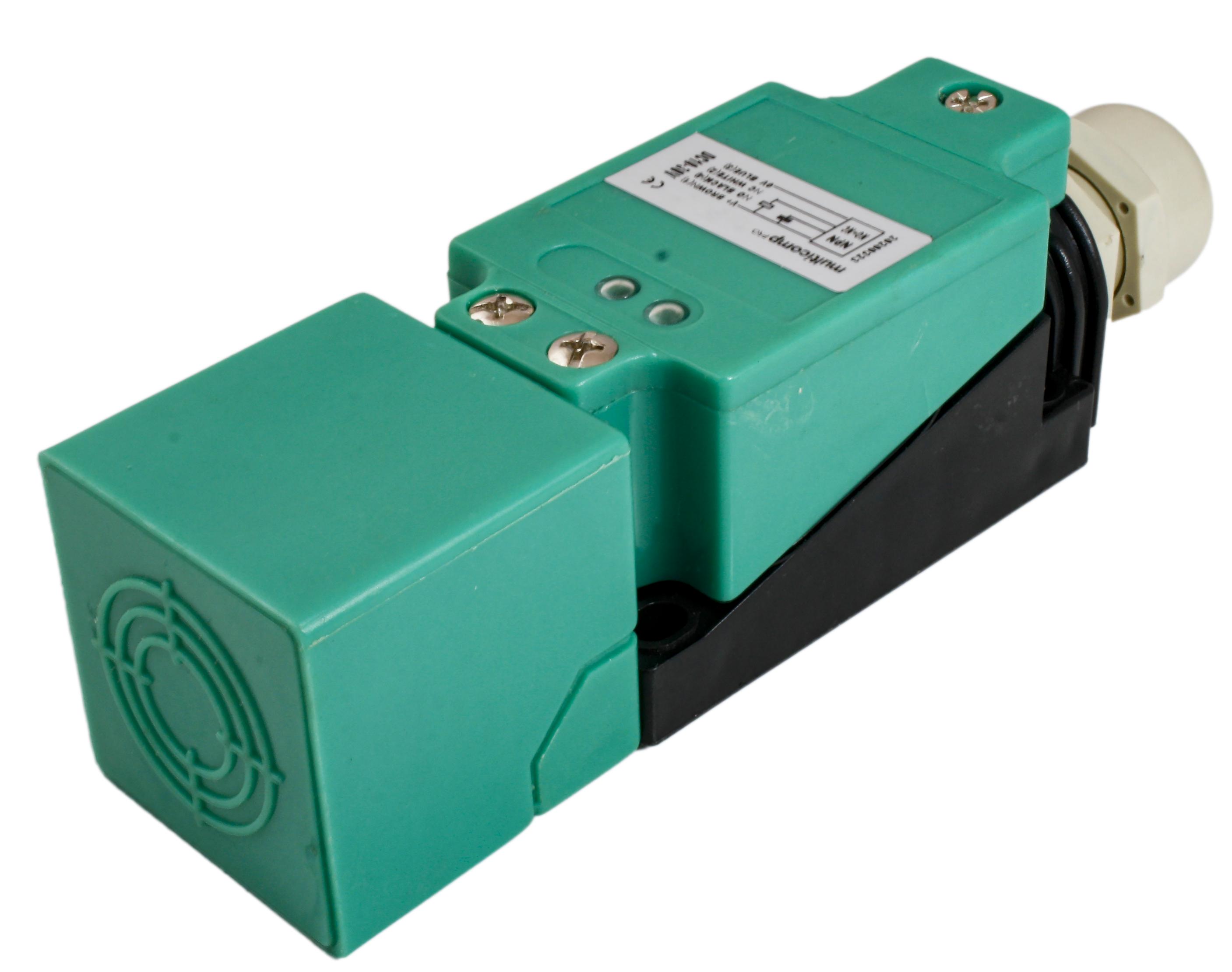

MULTICOMP PRO MP002264 Inductive Proximity Sensor
The inductive proximity sensor features a compact 40mm square plastic housing with a water-resistant IP67 rating, suitable for industrial environments. It operates with a sensing distance of 22.5mm in shielded mode and a mounting distance of 25mm, making it ideal for detecting ferrous metals. The sensor supports a wide power supply range from 10V to 30V DC and 90V to 250V AC, with various output types including NPN and PNP configurations. It includes short circuit protection, polarity reversal guard, and LED indicators for easy operation, tailored for automation, measuring, and counting applications.
MULTICOMP PRO MP002264 Inductive Proximity Sensor Specifications:
- Physical Dimensions: 40mm square housing, height 120mm
- Mounting Distance: 25mm shielded
- Sensing Distance: 22.5mm shielded
- Sensor Type: Inductive proximity
- Housing Material: Plastic
- Ingress Protection: IP67 water resistant
- Power Supply: 10V to 30V DC and 90V to 250V AC
- Current Output (DC/AC): 200mA / 300mA
- Operating Frequency: 150Hz (DC), 75Hz (DC 3/2 wires), 20Hz (AC 2 wires)
- Temperature Range: 1°C to 70°C (ambient)
- Polarity Reversal Protection: Yes
- Short Circuit Protection: Yes (3 wires), No (2 wires)
- Output Types: NPN NO / NC, PNP NO / NC, AC NO / NC
- Connection: 3 wires or 4 wires depending on configuration
- Application: Metal detection, automation, counting, industrial machinery
Buy the Multicomp Pro MP002264 – Reliable Industrial Inductive Proximity Sensor for Industrial Applications
Order the Multicomp Pro inductive proximity sensor online today to enhance your automation projects. Featuring a compact 40mm square plastic housing, IP67 water resistance, and sensing capabilities up to 22.5mm, it is ideal for industrial environments. The sensor offers versatile wiring options, overload and polarity protection, and supports various power supplies from 10V to 250V AC/DC, making it perfect for metal detection, machinery, and automation systems. Purchase now for reliable performance and easy integration into your setup.
Get Multicomp Pro MP002264 today—built for precision, durability, and reliable metal detection in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002264?
You can click on the BUY or RFQ button to purchase MP002264 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002264?
You can download the MP002264 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002264?
MULTICOMP PRO
