MULTICOMP PRO MPB22A0F11E624T1Q Illuminated Pushbutton Switch
The illuminated pushbutton switch is a durable SPST-NO and SPST-NC control component rated for 3A at 250V. Featuring stainless steel and PBT body construction, it offers IP67 and IK10 ingress protection, making it ideal for challenging industrial environments. The switch is rated for 500,000 mechanical cycles and 50,000 electrical cycles at full load, with a self-lock operation, and includes a green LED indicator indicating operational status. It has flying lead terminals, stainless steel bushing, silicone seals, and a compact design suitable for various control applications.
MULTICOMP PRO MPB22A0F11E624T1Q Illuminated Pushbutton Switch Specifications:
- Rating: Ith SA/250V AC resistive load 3A/250V AC
- Contact Resistance: 50mΩ MAX.@1A 12V DC (initial value)
- Insulation Resistance: 1,000MO min at 500V DC
- Dielectric Strength: 2,000V RMS @ sea level
- Operating Temperature: -20°C to +55°C
- Mechanical Life: Self-lock 500,000 cycles
- Electrical Life: 50,000 make-and-break cycles at full load
- Torque: 5~14Nm
- Panel Thickness: 210mm (@22.2mm)
- Operation Pressure: 1 Pole 2.5+1N
- Travel: About 3.2mm
- Ingress Protection: IP67, IK10 (Stainless Steel)
- Material: Bushing stainless steel, Base PBT (UL 94-V0), PC (UL 94-V2), Actuator PC; Stainless Steel, Inner Assembly POM/PA66, Spring Spring Steel, Sealing Silicone, O-Ring Silicone, Terminal Copper, Silver Plated, Hex Nut Nickel Plated Brass
- Wire Length: 500mm (flying leads), 150mm LED wires
- LED Voltage: 24V at 20mA, Green color
- Switch Type: SPST-NO, SPST-NC, Push On-Push Off

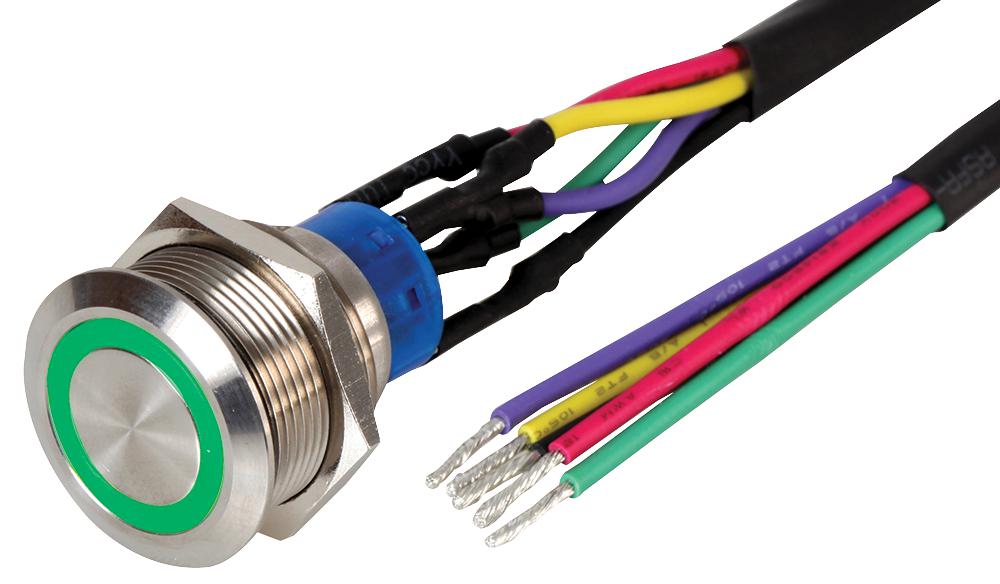

Buy the Buy Multicomp RC Metal Pushbutton Switch Part Number MPB22A0F11E624T1Q Online
Get your Multicomp Series MPB22A0F11E624T1Q illuminated pushbutton switch online today. Designed for durability with stainless steel components, IP67/IP10 protection, aerial LED indicator, and multiple contact options, this switch offers reliable operation in harsh environments. Perfect for industrial machinery, control panels, and automation systems, it features a high mechanical life cycle of 500,000 cycles and electrical endurance of 50,000 cycles. Easy to install with flying lead terminals and built-in LED status indication, it ensures seamless control functionality for your projects.
Order your Multicomp Series MPB22A0F11E624T1Q metal pushbutton switch today and enhance your industrial control panels with reliable switch performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPB22A0F11E624T1Q?
You can click on the BUY or RFQ button to purchase MPB22A0F11E624T1Q from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPB22A0F11E624T1Q?
You can download the MPB22A0F11E624T1Q datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPB22A0F11E624T1Q?
MULTICOMP PRO
