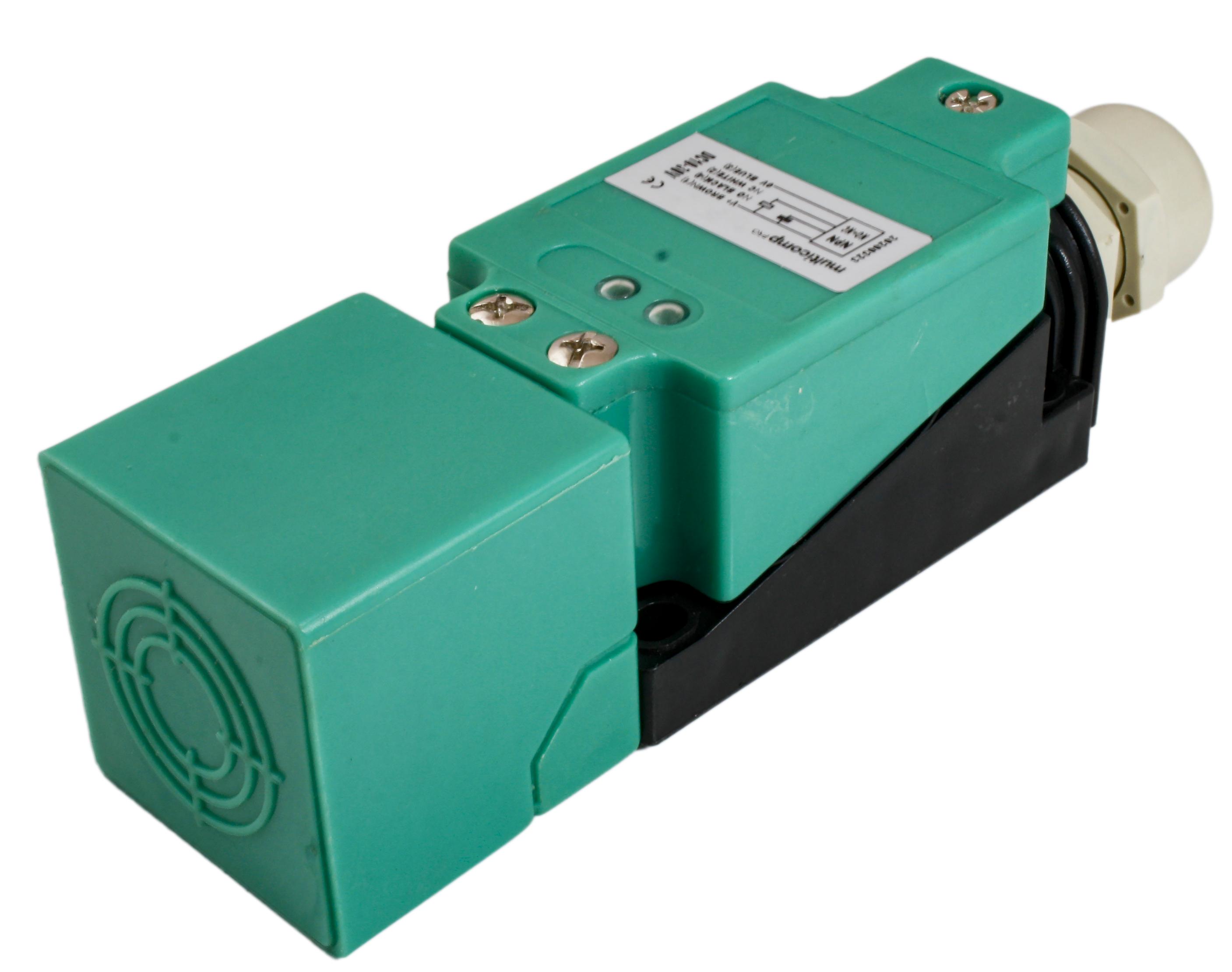

MULTICOMP PRO MP002266 Inductive Proximity Sensor
This inductive proximity sensor features a compact 40mm square plastic housing with IP67 water resistance, suitable for industrial applications. It detects ferrous metals within a sensing distance of 22.5mm, with a shielded mounting distance of 25mm. Operating on 10V-30V DC or 90V-250V AC power supplies, it offers high-frequency response up to 150Hz for DC models. The sensor is protected against polarity reversal, over-current, and short circuits, making it ideal for measuring, counting, and automation in manufacturing and process industries.
MULTICOMP PRO MP002266 Inductive Proximity Sensor Specifications:
- Housing: 40mm square plastic, IP67 water resistant
- Mounting Distance: 25mm shielded
- Sensing Distance: 22.5mm shielded
- Power Supply: 10V-30V DC or 90V-250V AC
- Frequency: 150Hz (DC), 75Hz (DC 3/2 wires), 20Hz (AC)
- Current Output: 200mA (DC), 300mA (AC)
- Ambient Temperature: 1°C to 70°C
- Protection: Against polarity reversal, over-current, short circuit
- Output Types: NPN, PNP, NO, NC, with 3 or 4-wire options
Buy the Multicomp Series Inductive Proximity Sensor: MP002266
Secure your industrial automation with the reliable Multicomp Series inductive proximity sensor MP002266. Designed with a sturdy 40mm plastic housing and IP67 water resistance, it detects ferrous metals within a precise sensing distance of 22.5mm. Compatible with multiple voltage ranges from 10V-30V DC to 90V-250V AC, it offers high-frequency switching for demanding environments. Equipped with protection against polarity reversal, short circuits, and over-current, this sensor is perfect for precise measurement, counting, and control in manufacturing, chemical, and light industry sectors. Buy online now for fast, dependable performance.
Order your Multicomp Series inductive proximity sensor MP002266 today and enhance your automation projects with reliable metal detection capabilities.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002266?
You can click on the BUY or RFQ button to purchase MP002266 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002266?
You can download the MP002266 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002266?
MULTICOMP PRO
