MULTICOMP-PRO MCL039AGW Multicolor LED

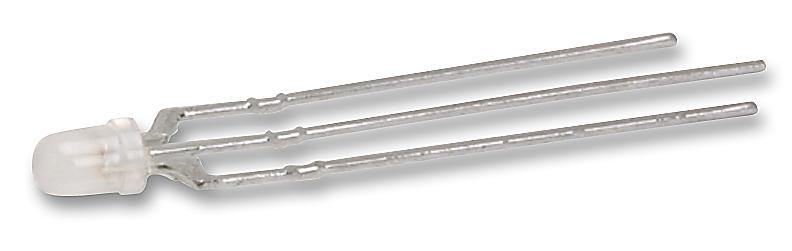

The MCL039AGW is a reliable 3mm through-hole LED featuring orange and green colors with a diffused white lens, constructed on GaAsP on GaP die. Suitable for industrial applications, it operates at a maximum reverse voltage of 5V and reverse current of 10 μA, with a viewing angle of 76°. The LED functions in temperatures ranging from -40°C to 85°C, making it ideal for various industrial and electronic display uses. Constructed with high-quality materials compliant with RoHS standards, it ensures durability and long-lasting performance in diverse environments.
MULTICOMP-PRO MCL039AGW Multicolor LED Specifications:
- Lens Type: White Diffused
- Emitted Colors: Orange (635nm), Green (568nm)
- Viewing Angle: 76°
- Peak Wavelength: 635/568nm
- Luminous Intensity: 8.2/8 med
- Reverse Voltage: 5V
- Reverse Current: 10 μA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 Seconds (2-4.6mm from body)
- Electrical/Optical Characteristics at 25°C: Forward Voltage 1.6/1.7V, Typical Luminous Intensity 8.2/8
- Peak Forward Current: 100mA at 1/10 duty cycle
- Recommended Forward Current: 20mA
Buy the Farnell MCLO39AGW – Reliable Multicolor 3mm LED for Industrial Applications
Purchase the Farnell Multicolor LED designed for industrial use today. This 3mm LED features orange and green colors with a diffused white lens for enhanced visibility. It operates across temperatures from -40°C to 85°C, ensuring reliable performance in harsh environments. The device offers a viewing angle of 76°, a peak wavelength of 635/568nm, and features RoHS compliance, making it suitable for eco-friendly applications. Order now for high-quality, long-lasting illumination solutions that meet your industrial standards and requirements.
Get Farnell MCLO39AGW today—built for precision, durability, and excellent visibility in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL039AGW?
You can click on the BUY or RFQ button to purchase MCL039AGW from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL039AGW?
You can download the MCL039AGW datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL039AGW?
MULTICOMP-PRO
