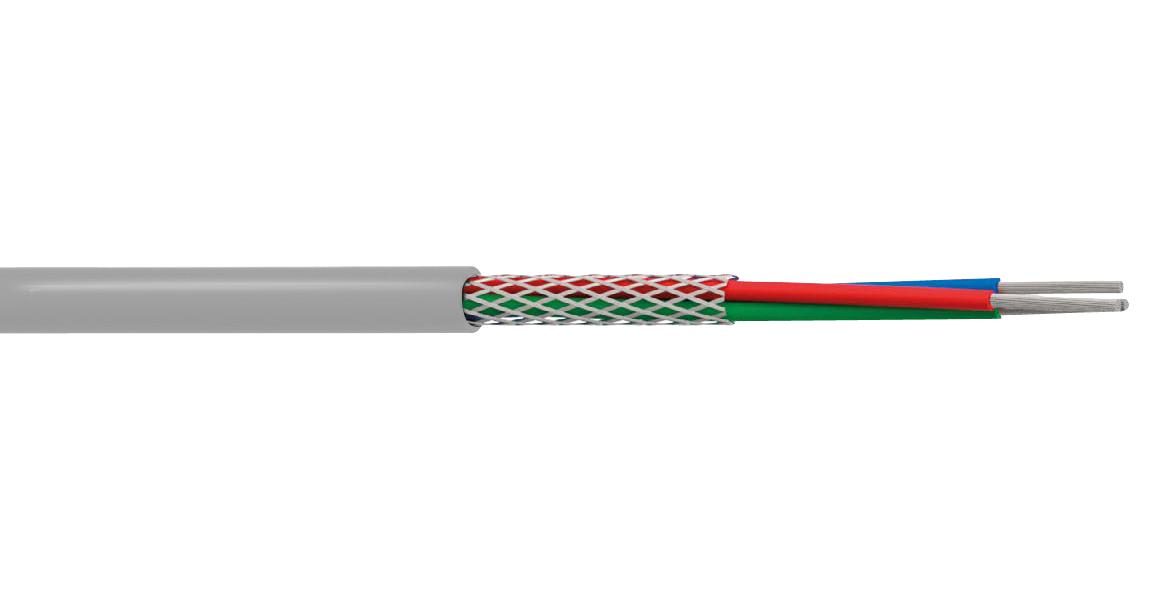

MULTICOMP PRO MP002306 Multicore Cable
These multicomp high-density multicore cables are designed for reliable wiring in electronic systems, military equipment, and aircraft. They feature flexible tinned copper conductors, PVC insulation and sheath, and are compliant with Defence Standard 61-12 Part 5. Suitable for voltages up to 440V and current of 2.5A, they withstand temperature ranges from -30°C to +70°C. Available in various colors and sizes, these cables ensure durable, safe, and efficient electrical connections in demanding environments.
MULTICOMP PRO MP002306 Multicore Cable Specifications:
- Voltage Rating: 440V r.m.s. at up to 1.6kHz
- Current Capacity: 2.5 Amps
- Temperature Range: Fixed -30°C to +70°C, Flexed -15°C to +70°C
- Conductor Material: Class 5 flexible tinned copper, 0.5mm2 (16/0.2mm)
- Insulation: PVC (Polyvinyl Chloride)
- Sheath Material: PVC
- Screen: Tinned Copper Wire Braid (TCWB)
- Minimum Bending Radius: 7.5 x overall diameter
- Outer Diameter: varies with size, approx. 5.5 mm to 13.1 mm
- Color Options: Black, Grey
- Compliance: Defence Standard 61-12 Part 5
Buy the Multicomp Series Multicore High-Density Cables: MP002306
Order Multicomp high-density multicore cables online today for secure, durable, and compliant wiring solutions in electronic and military applications. These cables feature flexible tinned copper conductors, PVC insulation and sheath, and are designed according to Defence Standard 61-12 Part 5. Perfect for critical environments requiring reliable high-voltage and current performance, they ensure safe and efficient electrical connections. Choose from various sizes and colors, with quick delivery to meet your project deadlines and technical requirements.
Buy Multicomp high-density multicore cables now and experience unmatched reliability and performance for military and electronic wiring needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002306?
You can click on the BUY or RFQ button to purchase MP002306 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002306?
You can download the MP002306 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002306?
MULTICOMP PRO
