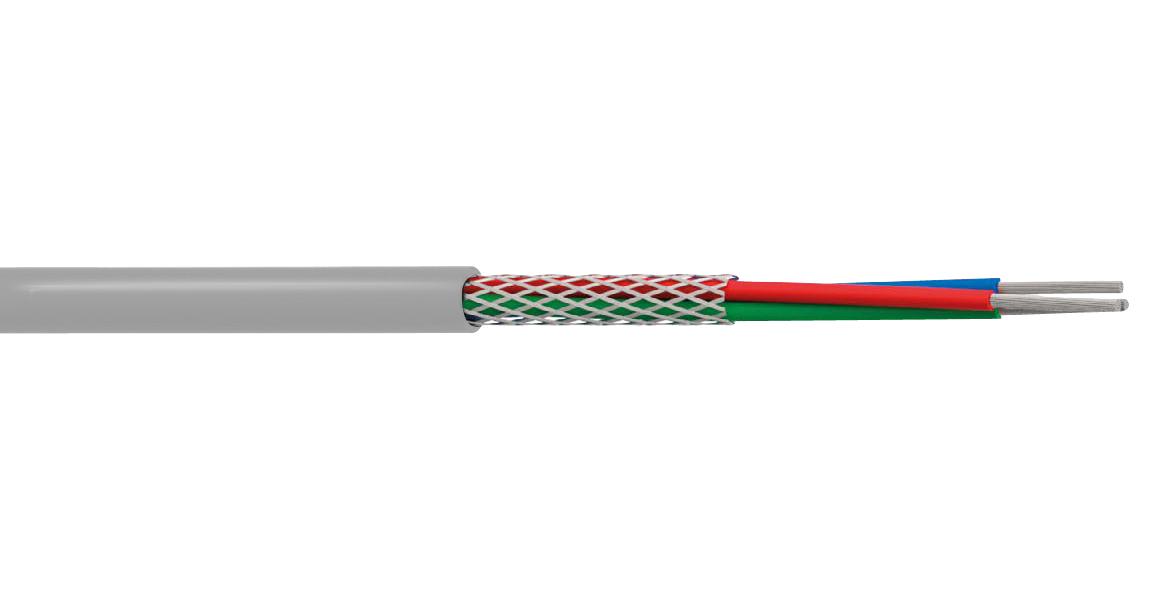

MULTICOMP PRO MP002309 Multicore Cable
These multicore flexible cables are designed for high-density wiring within electronic equipment, aircraft, and military systems. They meet Defence Standard 61-12 Part 5, featuring tinned copper conductors, PVC insulation and sheath, and a tinned copper braid shield for electromagnetic protection. Suitable for applications up to 440V rms, capable of carrying 2.5A, with fixed temperature ratings from -30°C to +70°C and flexed from -15°C to +70°C. Available in black and grey, they come in various lengths and core configurations, ensuring reliable performance in demanding environments.
MULTICOMP PRO MP002309 Multicore Cable Specifications:
- Voltage Rating: 440V rms at frequencies up to 1.6kHz
- Current Carrying Capacity: 2.5 Amps
- Temperature Rating: Fixed: -30°C to +70°C, Flexed: -15°C to +70°C
- Conductor: Class 5 flexible tinned copper, 0.5mm² (16/0.2mm)
- Insulation and Sheath: PVC (Polyvinyl Chloride)
- Screen: Tinned Copper Wire Braid
- Sheath Colour: Black, Grey
- Nominal Diameter: Varies with cable specifications
- Overall Thickness: 0.8-1.2 mm depending on cable type
- Minimum Bending Radius: 7.5 x overall diameter
- Standards: Defence Standard 61-12 Part 5
- Coverage: Multi-core, screened, PVC sheathed
- Application: Military, aerospace, industrial electronics
- Temperature Range: -30°C to +70°C
- Voltage: 440V rms, Frequency up to 1.6kHz
Buy the Multicomp Series Multicore Cable PVC Insulated: MP002309
Order the Multicomp 16-2-12A multicore cable online today for premium high-density wiring solutions suitable for aerospace, military, and industrial electronics. Featuring PVC insulation and sheath, tinned copper conductors, and shielded construction, this cable ensures reliable EMI protection and durability. With a voltage rating of 440V rms and a current capacity of 2.5A, it performs optimally in temperatures up to +70°C. Available in various lengths and colors, it is ideal for complex electronic systems requiring dependable wiring connections.
Buy Multicomp 16-2-12A now and experience unmatched reliability and performance in demanding military and industrial environments.
