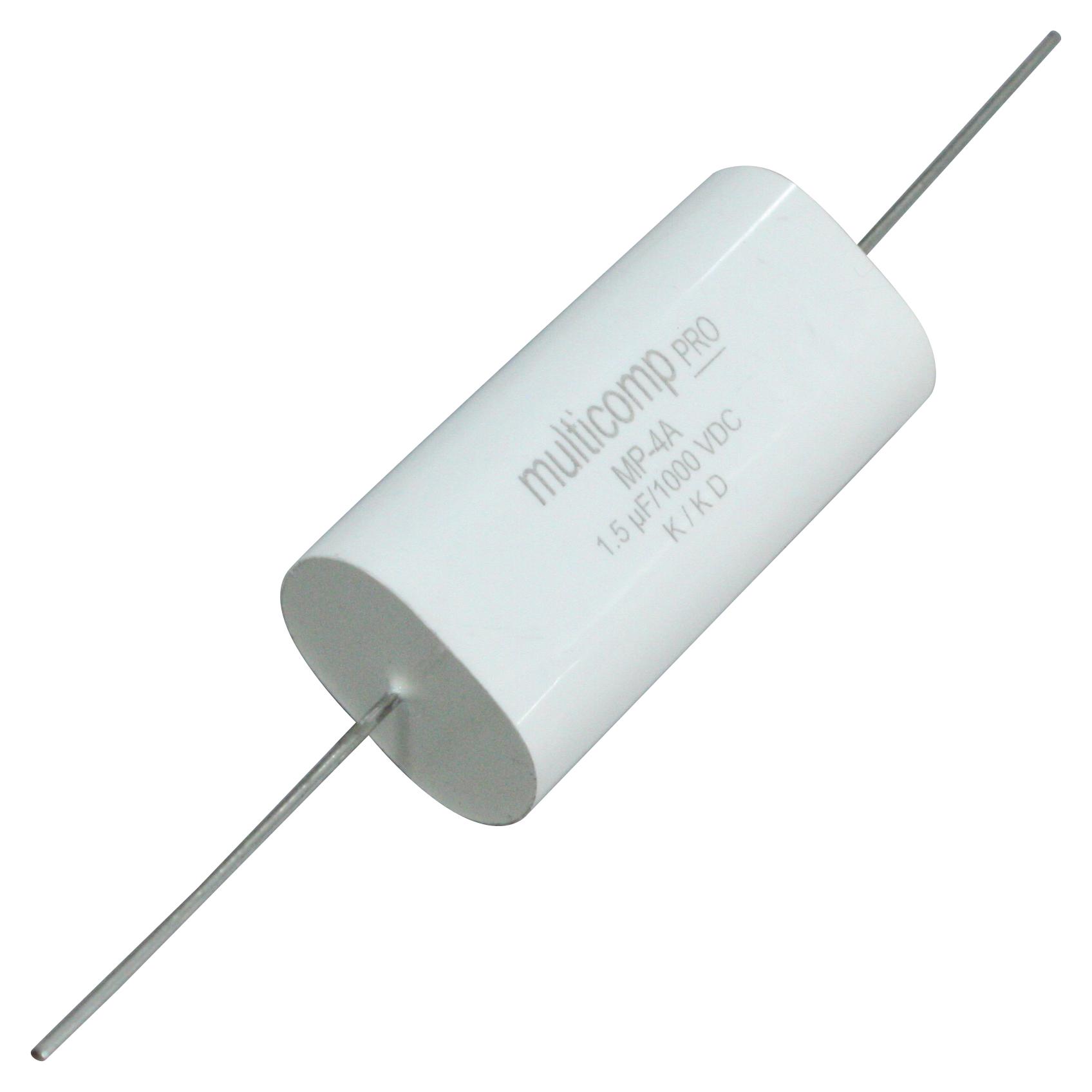

MULTICOMP PRO MP004232 Snubber Capacitor
High-performance snubber capacitors designed for high voltage, high current, and medium to high pulse applications. Featuring low-loss polypropylene dielectric, metallised polypropylene film, and extended double metallised polyester electrodes, these axial leaded capacitors are ideal for snubber circuits, speed control, and SMPS. They comply with IEC 61071 standards, have flame-retardant UL94-V0 casing, and support a wide temperature range from -55°C to +105°C. Available in various voltage ratings up to 2000 V DC with durable construction for reliable operation in demanding environments.
MULTICOMP PRO MP004232 Snubber Capacitor Specifications:
- Dielectric material: Polypropylene film
- Electrode material: Double metallized polyester and metallized polypropylene film
- Winding construction: Extended double metallised polyester electrodes with metallised polypropylene dielectric internal series connection
- Terminal: Tinned copper
- Enclosure: UL94-V0 Flame retardant casing
- Capacitance range: 0.0151-51 μF
- Rated voltage: 600 V DC, 850 V DC, 1000 V DC, 1200 V DC, 1600 V DC, 2000 V DC
- Test voltage: 2x rated V DC for 10 seconds, 2-3 kV AC
- Dissipation factor: < 0.0005 at 1kHz and +25°C
- Insulation resistance: >100,000 MΩ at 100 V DC after 2 minutes
- Temperature range: -55°C to +105°C
- Peak current and ESR ratings vary with voltage and capacitance
- Construction supports high peak current and high DV/DT values
- Support RoHS compliance, environmentally safe materials.
Buy the Multicomp Series Snubber Capacitors: MP004232
Get the Multicomp MP004232 snubber capacitor online today for high voltage and high current applications. Engineered with polypropylene dielectric and metallised film, these axial leaded capacitors are perfect for snubber circuits, speed control, and power supply management. With ratings up to 2000 V DC and a wide temperature range from -55°C to +105°C, they deliver durability and reliable performance in demanding environments. Shop now for fast delivery and expert support, enhancing your electronic projects with top-quality components.
Buy Multicomp MP004232 axial leaded snubber capacitors now and experience unmatched reliability and high voltage performance for demanding electronic applications.
