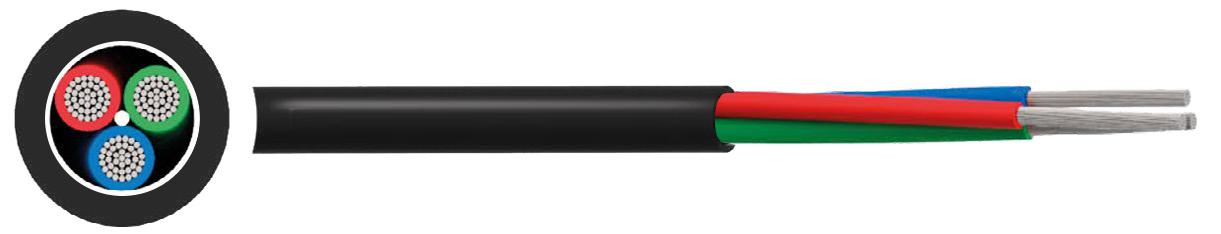

MULTICOMP-PRO MP002337 Multicore Cable
These high-quality multicore flexible cables meet Defence Standard 61-12 Part 4, designed for high-density wiring in aerospace, military, and industrial applications. Featuring stranded tinned copper conductors and PVC insulation, they offer excellent thermal stability, flexibility, and resistance to environmental stress. Suitable for use in aircraft, process control, data processing, and military equipment, these cables are available in various colors and lengths, with core identification for easy installation and maintenance. They ensure reliable electrical performance and safety in demanding operational environments.
MULTICOMP-PRO MP002337 Multicore Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 0.055mm? (7/0.1mm), 0.22mm? (7/0.2mm)
- Insulation Material: PVC
- Sheath Material: PVC
- Screen: TCWB (Tinned Copper Wire Braid) (for screened variants)
- Voltage Rating: 250V r.m.s. for 7/0.1mm cores, 440V r.m.s. for 7/0.2mm cores
- Temperature Rating: Fixed: -30°C to +70°C, Flexed: -15°C to +70°C
- Minimum Bending Radius: 7.5 x overall diameter
- Core Identification: Various color-coded cores including Red, Blue, Green, Yellow, White, Black
- Overall Diameter: Ranges from approximately 2.04 mm to 1 mm depending on configuration
- Cable Lengths: 25 m, 100 m, 500 m options available
- Standards: Defence Standard 61-12 Part 4, RoHS Compliant
- Application: Internal wiring for high-density electronic and military equipment
- Operating in aerospace, military vehicles, data processors, and process control systems
Buy the Buy Multicomp Multicore Cables Part Number MP002337 Online
Purchase Multicomp multicore cables MP002337 online today for high-density wiring needs in aerospace, military, and industrial environments. These flexible, PVC-insulated cables with tinned copper conductors ensure excellent electrical and thermal performance. Available in various lengths with color-coded cores for easy identification, they meet Defence Standard 61-12 Part 4 and RoHS compliance. Ideal for aircraft, process control, and military equipment, offering durability, safety, and reliable operation in demanding conditions. Order now for fast delivery and professional-grade wiring solutions.
Get Multicomp multicore cables MP002337 today—designed for high-density aerospace and military wiring, built for durability and reliable performance.
