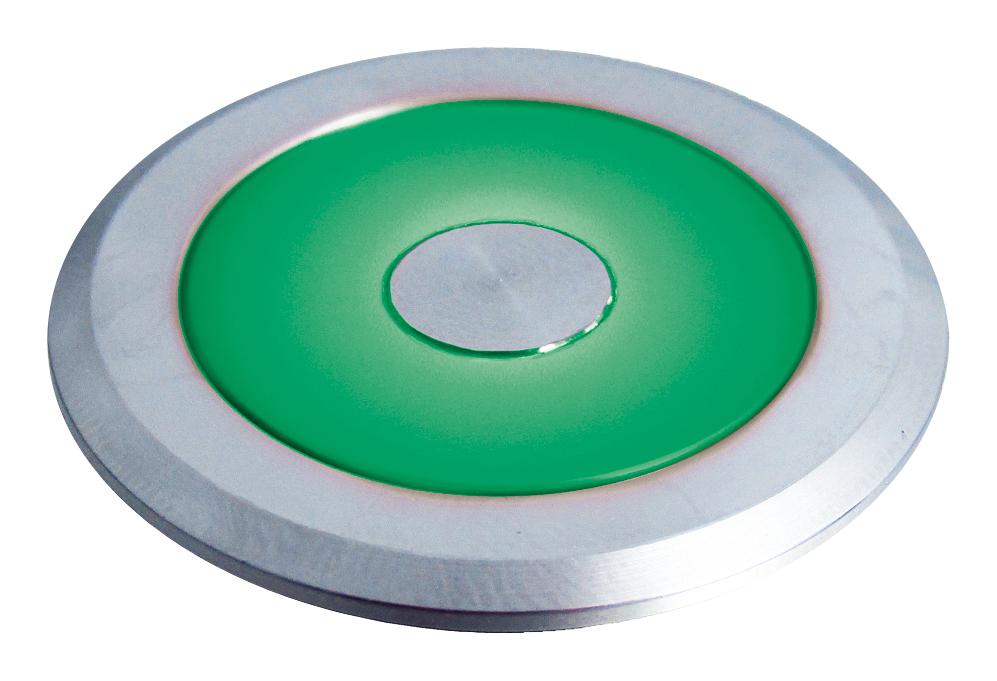

MULTICOMP PRO MC010999 Illuminated Vandal Switch
This illuminated vandal-resistant switch with metal bezel and silhouette rings is designed for industrial environments requiring durable, waterproof, and vandal-proof control components. It features multiple contact configurations, including normally open, normally closed, and combination types, with LED indicators available in green, red, or blue. Rated for 600V and 210A, it offers high dielectric strength, insulation resistance, and vibration and shock resistance, suitable for harsh conditions. Mountable via a 22mm or 30mm hole, its IP65 protection ensures reliable performance in demanding industrial applications.
MULTICOMP PRO MC010999 Illuminated Vandal Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min; Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mQ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1-25°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: Damage limits: 1,000 m/; Operating limits: 100 m/S?
- Mechanical Life: Momentary: 1,000,000; Maintained: 100,000
- Electrical Life: 100,000
- Degree of Protection: IP65
- Terminal Style: Contact Block
- Mounting Hole Diameter: 22mm / 30mm
Buy the Multicomp MC010999 – Reliable Illuminated Industrial Switch for Harsh Environments
Purchase the illuminated vandal-resistant switch online today to ensure reliable operation in demanding industrial environments. With its rugged aluminium construction, IP65 protection rating, and multiple contact configurations, this switch meets high safety and durability standards. The switch features LED indicators in green, red, or blue, along with high dielectric strength and insulation resistance, ensuring dependable performance over millions of actuations. Easy mounting via 22mm or 30mm holes makes installation straightforward, perfect for industrial control panels, automation systems, and vandal-prone areas. Order now for fast delivery and peace of mind.
Get Multicomp MC010999 today—built for durability, high voltage, and harsh industrial conditions with vandal-resistant design.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010999?
You can click on the BUY or RFQ button to purchase MC010999 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010999?
You can download the MC010999 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010999?
MULTICOMP PRO
