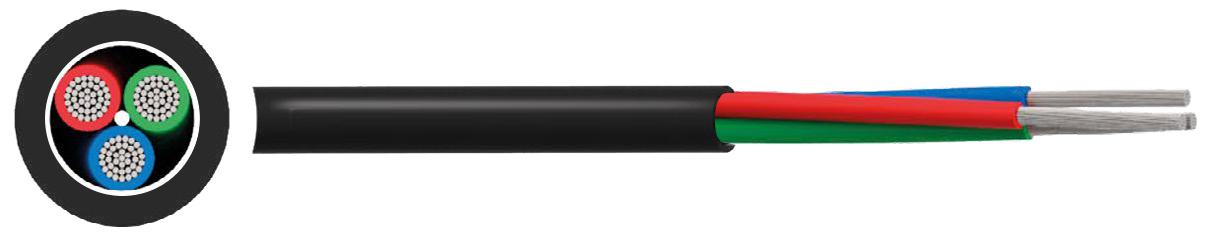

MULTICOMP PRO MP002339 Multicore Cable
These high-density multicore flexible cables conform to Defence Standard 61-12 Part 4, ideal for aerospace, military, and industrial applications. Constructed with stranded tinned copper conductors, PVC insulation and sheath, they support voltage ratings of 250V to 440V depending on conductor size. Available in various lengths and colors with conductors ranging from 7/0.1 mm to 7/0.25 mm, they feature a flexible design with minimum bending radius, optimal for complex wiring within electronic, military, and aviation systems. Suitable for environments requiring RoHS compliance and reliable electromagnetic screening.
MULTICOMP PRO MP002339 Multicore Cable Specifications:
- Voltage Rating: 250V r.m.s. at up to 1.6 kHz for 7/0.1 mm cores, 440V r.m.s. for 7/0.2 mm cores
- Conductor: Stranded tinned copper, 0.055mm² (7/0.1 mm), 0.22mm² (7/0.2 mm)
- Insulation: PVC (Polyvinyl Chloride)
- Screen: Tinned Copper Wire Braid (TCWB)
- Sheath: PVC, available in Black, Grey, Grey/Blue, Black
- Minimum Bending Radius: 7.5 x overall diameter
- Temperature Ratings: Fixed -30°C to +70°C, Flexed -15°C to +70°C
- Physical Dimensions: Nominal overall diameter varies with conductor size; detailed per part number
- Construction: Circular conductor, PVC insulated, PVC sheathed, screen options available
- Application: High-density wiring in instruments, electronics, military and aerospace systems
- Standards: Defence Standard 61-12 Part 4
- Color Options: Black, Grey, Grey/Blue, Black, Blue, White, Red, Green, Yellow, Orange, Pink, Violet
Buy the Multicomp Series Defence Standard 61-12 Multicore Cables: MP002339
Experience the reliability and high performance of Multicomp Series Defence Standard 61-12 Multicore Cables. Designed for aerospace, military, and industrial wiring, these cables feature stranded tinned copper conductors, PVC insulation and sheath, and electromagnetic screening. Available in various lengths and color options with conductors ranging from 7/0.1 mm to 7/0.25 mm, they support up to 440V and are RoHS compliant. Perfect for high-density, complex wiring systems in demanding environments—order online now and elevate your projects with trusted quality.
Order your Multicomp Series Defence Standard 61-12 Multicore Cables today and ensure reliable high-density wiring for military, aerospace, and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002339?
You can click on the BUY or RFQ button to purchase MP002339 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002339?
You can download the MP002339 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002339?
MULTICOMP PRO
