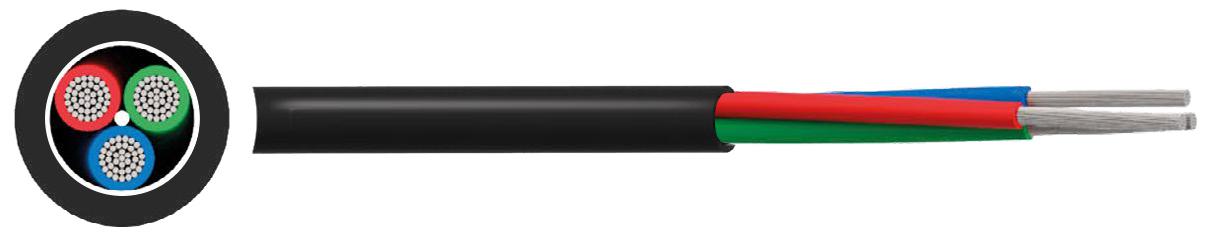

MULTICOMP PRO MP002340 multicore cables
High-density multicore flexible cables designed for robust internal wiring applications in electronic and military equipment. These PVC-insulated, sheathed cables adhere to Defence Standard 61-12 Part 4, supporting voltages up to 440V RMS at frequencies up to 1.6 kHz. They feature stranded tinned copper conductors with various cross-sections, available in multiple lengths and colors including black, grey, and optional color coding. Suitable for use in aircraft, process control systems, and military vehicles, these cables ensure reliable performance in demanding environments with a temperature rating from -30°C to +70°C.
MULTICOMP PRO MP002340 multicore cables Specifications:
- Voltage Rating: 250V RMS (7/0.1 mm cores), 440V RMS (7/0.2 mm cores)
- Conductors: Stranded tinned copper, 7/0.1 mm and 7/0.2 mm
- Insulation: PVC (Polyvinyl Chloride)
- Screen: TCWB (Tinned Copper Wire Braid) or collectively screened cores
- Sheath: PVC (Polyvinyl Chloride)
- Core Identification: Color-coded, Black, Grey options
- Nominal Thickness: 0.35 mm to 1.0 mm depending on model
- Overall Diameter: 23 mm to 28 mm depending on model
- Weight: 3.4 kg/km to 172.73 kg/km based on size and length
- Minimum Bending Radius: 7.5 x overall diameter
- Temperature Rating: -30°C to +70°C (fixed), -15°C to +70°C (flexed)
- Standards: Defence Standard 61-12 Part 4
- Application: Internal wiring in military, aerospace, and industrial electronics
Buy the Buy Multicomp High-Density Cables Part Number MP002340 Online
Order Multicomp MP002340 online today to ensure your military and aerospace electronic systems are equipped with durable, high-performance multicore cables. These PVC-insulated, sheath cables meet Defence Standard 61-12 Part 4, providing excellent flexibility, reliability, and safety for high-density wiring applications. Available in multiple lengths and colors, including black and grey. Ideal for aircraft, process control, and military vehicles, these cables support voltages up to 440V RMS, with stranded tinned copper conductors and a temperature rating from -30°C to +70°C, ensuring consistent, stable connection performance in critical environments.
Buy Multicomp MP002340 now and experience reliable performance with high-quality, PVC-insulated multicore cables designed for demanding military and aerospace environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002340?
You can click on the BUY or RFQ button to purchase MP002340 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002340?
You can download the MP002340 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002340?
MULTICOMP PRO
