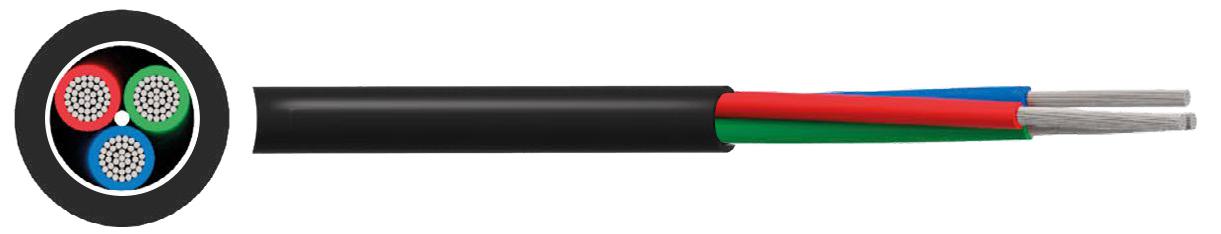

MULTICOMP PRO MP002387 Multicore Cable
These multicore flexible cables conform to Defence Standard 61-12 Part 5, designed for high density wiring in aircraft, military vehicles, and electronic systems. They feature tinned copper conductors, PVC insulation, and sheathing, with options including screened cores. Rated for 440V at up to 1.6kHz, these cables support applications requiring reliable power and signal transmission in demanding environments. Available in various core counts, colors, and lengths, they ensure excellent flexibility, durability, and consistent electrical performance in military and industrial installations.
MULTICOMP PRO MP002387 Multicore Cable Specifications:
- Voltage Rating: 440V r.m.s. at frequencies up to 1.6kHz
- Conductor: Class 5 flexible tinned copper, 0.5mm² (16/0.2mm)
- Insulation: PVC
- Screen: Tinned Copper Wire Braid (optional)
- Sheath Material: PVC, black or grey
- Maximum Resistance: 16/0.2 conductor 40.10/km at 20°C
- Current Carrying Capacity: 2.5 Amps
- Temperature Rating: Fixed -30°C to +70°C, Flexed -15°C to +70°C
- Minimum Bending Radius: 7.5 times overall diameter
- Dimensions: Nominal overall diameters between 5.5mm and 13.1mm depending on core count
- Weight: Varies by model, approx. 31.97 kg/km to 244 kg/km
- Colors: Black, Grey
- Standards: Defence Standard 61-12 Part 5
Buy the Buy Multicomp Military-Grade Multicore Cables Part Number MP002387 Online
Purchase Multicomp military-grade multicore cables online today to ensure high performance and durability in demanding environments. These versatile cables are ideal for aircraft, military vehicles, process control, and electronic equipment where reliability is critical. With PVC insulation and sheathing, tinned copper conductors, and various core options, they deliver exceptional flexibility, flame retardancy, and long-lasting electrical performance. Available in multiple lengths and color codes, order now to support your critical military and industrial wiring projects with confidence and convenience.
Buy Multicomp MP002387 now and experience reliable, high-density wiring suitable for military and industrial electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002387?
You can click on the BUY or RFQ button to purchase MP002387 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002387?
You can download the MP002387 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002387?
MULTICOMP PRO
