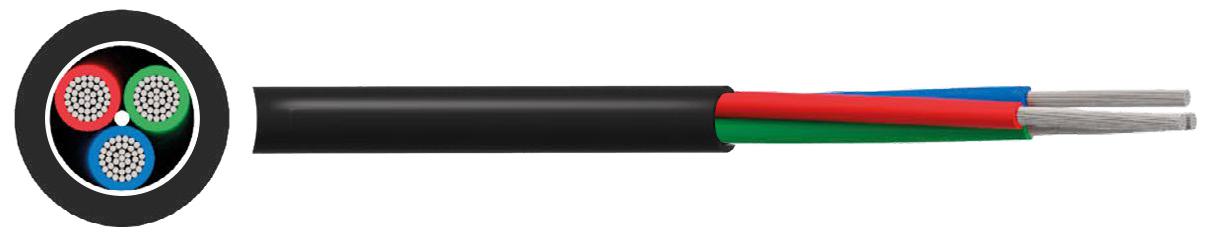

MULTICOMP PRO MP002390 Multicore Cable
These high-density multicore flexible cables are designed for reliable wiring in electronic systems, aircraft, and military vehicles. Constructed with tinned copper conductors, PVC insulation, and a PVC sheath, they comply with Defence Standard 61-12 Part 5. Available in various colors and lengths, they support a voltage of 440V RMS up to 1.6kHz, with a maximum current of 2.5 amps. The cables feature a minimum bending radius of 7.5 times overall diameter, suitable for demanding industrial and military applications, ensuring durability and safety in critical environments.
MULTICOMP PRO MP002390 Multicore Cable Specifications:
- Voltage Rating: 440V RMS at frequencies up to 1.6kHz
- Current Carrying Capacity: 2.5 Amps
- Temperature Rating: Fixed: -30°C to +70°C, Flexed: -15°C to +70°C
- Conductor: Class 5 flexible tinned copper, 0.5mm² (16/0.2mm)
- Insulation: PVC (Polyvinyl Chloride)
- Sheath Material: PVC (Polyvinyl Chloride)
- Sheath Colour: Black, Grey
- Minimum Bending Radius: 7.5 x overall diameter
- Dimensions: Nominal overall diameter varies with wire count, approx. 5.5mm to 13.1mm depending on cable type
- Construction: Conductor cabled with PVC insulation, screened cores with tinned copper wire braid
- Standards: Defence Standard 61-12 Part 5
Buy the Multicomp 16-2-12A – Reliable Multicore Cables for Industrial Applications
Purchase the Multicomp 16-2-12A multicore cable online today to benefit from high-quality, durable wiring suitable for demanding industrial, military, and electronic applications. Featuring PVC insulation and a tinned copper conductor, this cable meets strict standards and offers reliable performance at a voltage of 440V RMS. Its flexible design, various lengths, and color options make it ideal for high-density wiring in complex electronic and aerospace systems. Secure your supply chain and ensure operational safety by buying online now.
Order your Multicomp 16-2-12A multicore cable today and ensure your electronic systems and military equipment operate with dependable quality and safety.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002390?
You can click on the BUY or RFQ button to purchase MP002390 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002390?
You can download the MP002390 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002390?
MULTICOMP PRO
