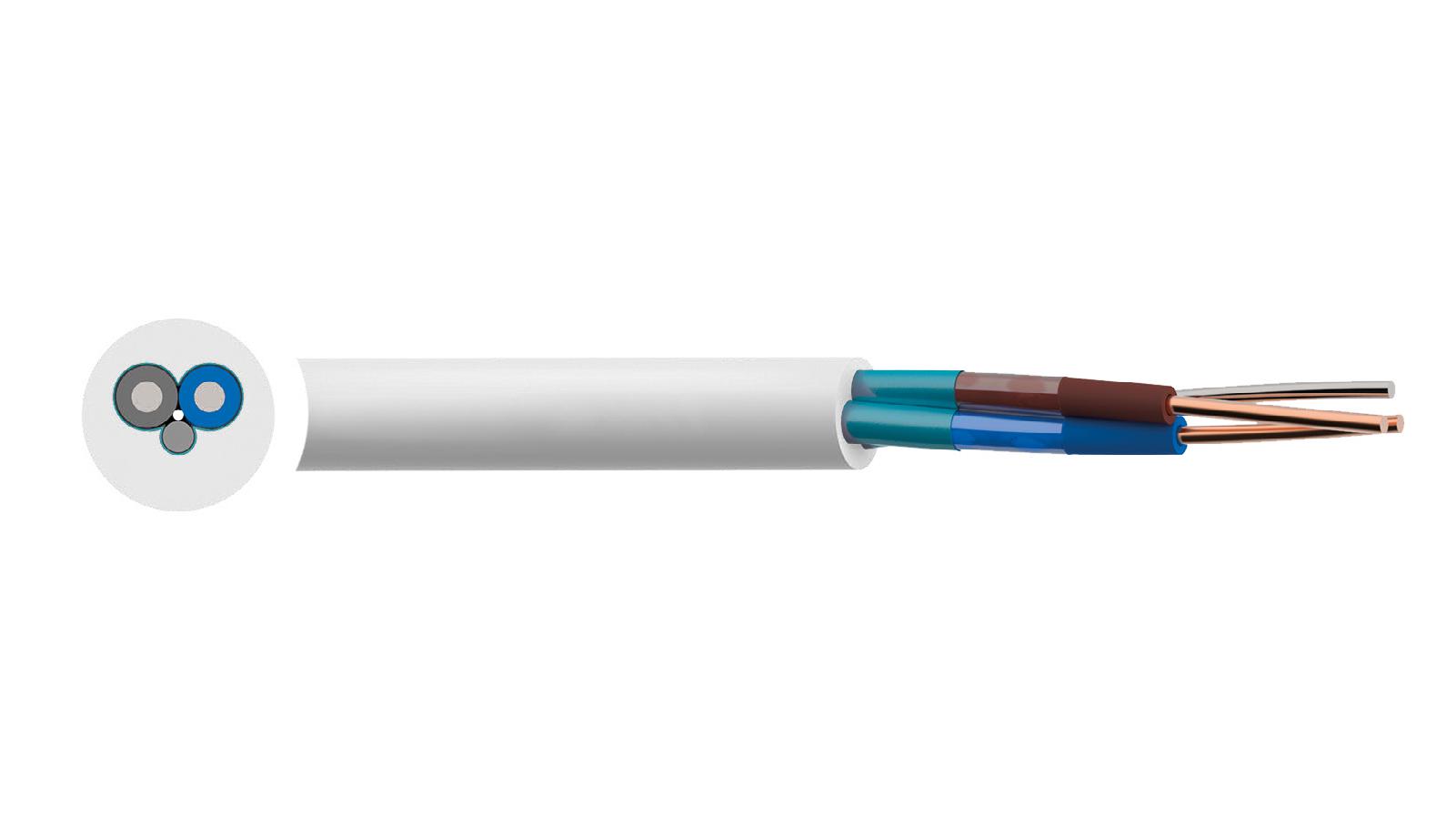

MULTICOMP PRO MP002415 Fire Resistant Multicore Cable
This fire-resistant multicore cable features solid conductors with a high-performance silicone rubber insulation, designed for use in fire detection, alarm, voice, and emergency lighting circuits. It complies with standards like BS 7629-1, BS EN/IEC 60754, and BS 6387, offering voltage ratings of 300V/500V and operating temperatures from -40°C to +90°C. The sheathing is LSZH, red and white, with multiple cores and an overall aluminium/polyester screen, delivering reliable performance in fire situations and ensuring continuous operation during emergencies.
MULTICOMP PRO MP002415 Fire Resistant Multicore Cable Specifications:
- Voltage Rating Uo/U: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: Class 1 Solid Conductor, 1.5mm² or 2.5mm²
- Insulation: High performance fire resistant silicone rubber
- Outer Sheath: LSZH (Low Smoke Zero Halogen), Red & White
- Screen: Aluminium/Polyester tape
- Cores: 2, 3, or 4 cores with corresponding color coding and bare earth
- Nominal Cross-Sectional Area: 1.5mm² to 2.5mm²
- Resistance at 20°C: 12.1 - 741 kΩ/km depending on size
- Current Capacity: 24-33 Amps depending on core count and size
- Voltage Drop: 18-30 mV/A/m in typical conditions
- Standards & Approvals: BS 7629-1, BS EN/IEC 60754-1/2, BS 6387, BASEC tested
Buy the Multicomp Classic 1.5mm – Reliable Fire Resistant Cables for Industrial Applications
Buy your Multicomp fire-resistant multicore cable online today and ensure your fire detection, emergency lighting, and alarm systems are dependable. Designed with high-performance silicone insulation and an LSZH sheath, this cable offers excellent fire resistance, stable operation at temperatures up to 90°C, and compliance with key safety standards like BS 7629-1 and BS 6387. Available in 1.5mm² and 2.5mm² sizes with multiple cores, it’s ideal for critical safety circuits where continuous operation and安全 are essential for safety compliance and reliable emergency response.
Order your Multicomp Series MP002415 fire-resistant multicore cable today and ensure your emergency systems operate reliably during critical situations.
