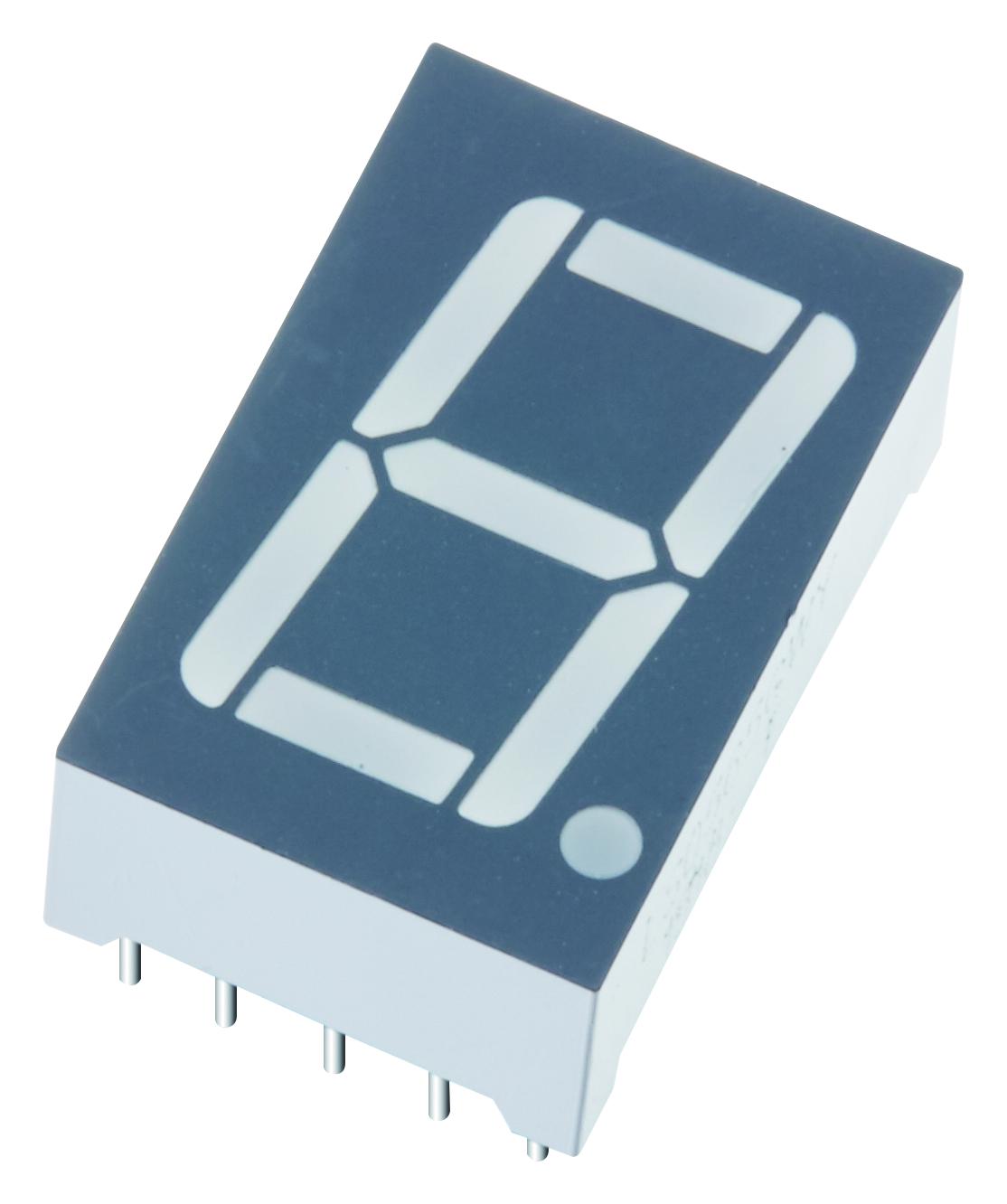

MULTICOMP PRO LS0565GWK LED Display
The green single-digit common cathode LED display measures 14.2mm (0.56 inches) in size and features GaP dice material. It emits at a peak wavelength of 568 nm, with a luminous intensity of up to 3.8 med at 20mA current, and has a viewing angle of 206½°. The device operates within -40°C to +85°C and withstands storage temperatures up to +100°C. It supports a maximum power dissipation of 85 mW and has a maximum reverse voltage of 5V. Designed for reliable performance, this LED display is ideal for digital readouts in various electronic equipment.
MULTICOMP PRO LS0565GWK LED Display Specifications:
- Dice Material: GaP
- Peak Wavelength: 568 nm
- Emitted Colour: Green
- Lens Colour: White Diffused
- Reverse Current: 10pA at VR=5V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Soldering Temperature Range: 260°C for 5 Seconds (from body)
- Luminous Intensity: 1.2 to 24 med at 20mA
- Viewing Angle: 206½ degrees
- Forward Voltage: 1.8V to 2.6V
- Forward Current: Recommended 20mA, max 100mA peak
- Power Dissipation: up to 85 mW
- Peak Forward Current (Duty 1/10 @ 1kHz): 100mA
- Absolute Max Reverse Voltage: 5V
Buy the Multicomp Series LED Display: LS0565GWK
Enhance your electronic projects with the Multicomp Series LED Display LS0565GWK. This 14.2mm green LED offers a peak wavelength of 568 nm, high luminous intensity up to 3.8 med at 20mA, and a wide viewing angle of 206½°. It features low reverse current and supports operating temperatures from -40°C to +85°C. Its compact size makes it suitable for digital readouts, measurement devices, and other applications requiring bright, reliable displays. Purchase online now for quick delivery and consistent quality.
Order your Multicomp Series LED Display LS0565GWK today and give your digital projects high-visibility LEDs with reliable performance.
