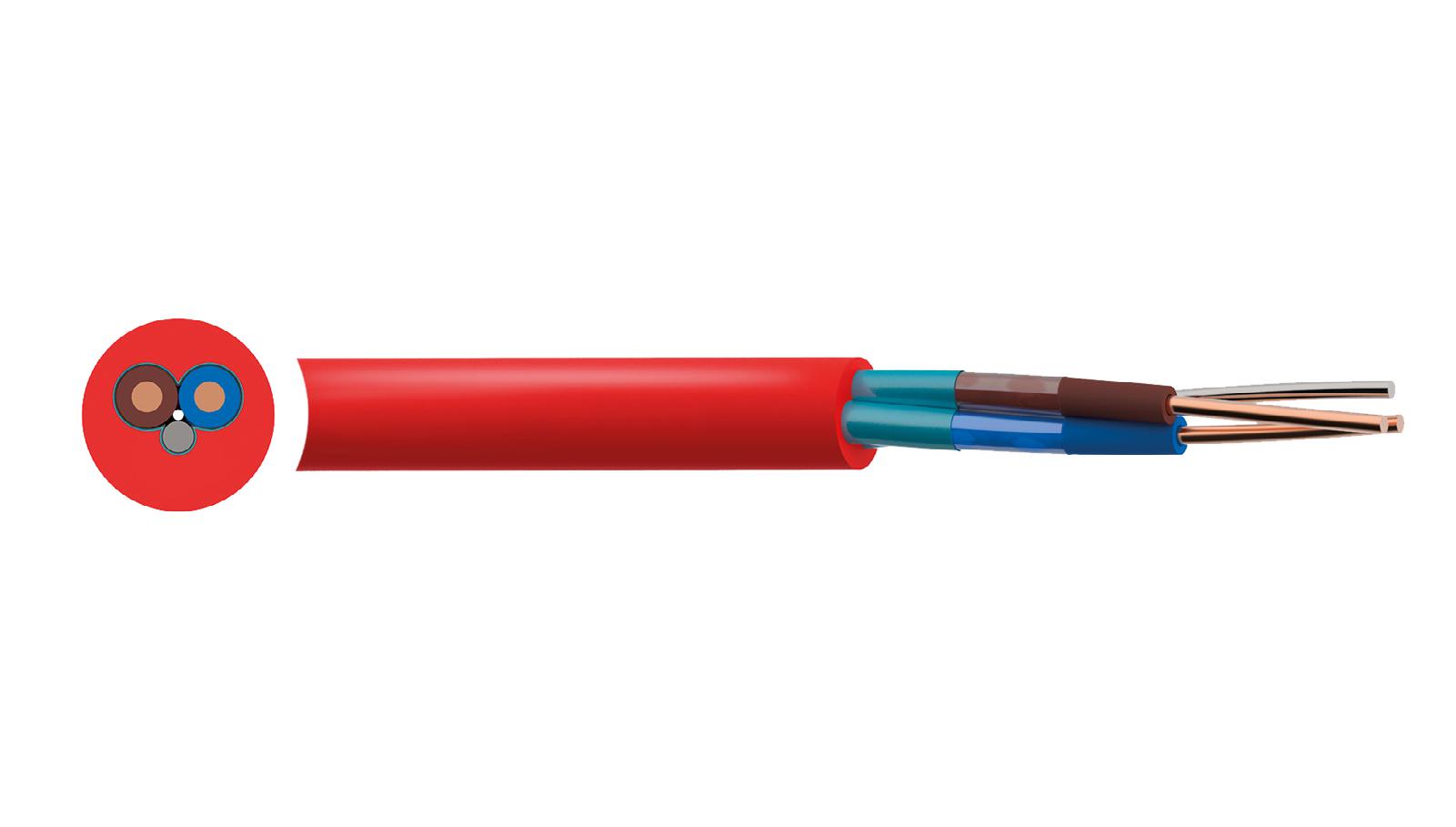

MULTICOMP PRO MP002416 fire resistant multicore cable
Enhanced fire resistant multicore cables are designed for critical fire alarm, emergency lighting, and voice alarm systems, ensuring operation during fire conditions. Built with a Class 1 solid conductor of 2.5mm² cross-sectional area, these cables feature a mica/glass fire-resistant tape insulation covered by high-performance silicone rubber. The overall screen is aluminum/polyester tape, with a tinned copper conductor for circuit protection. The outer sheath is LSZH, providing low smoke zero halogen properties. Suitable for voltage ratings up to 300V/500V, with a temperature range of -40°C to +90°C, and a minimum bending radius of 6 times overall diameter, these cables meet standards including BS 7629-1 and IEC specifications.
MULTICOMP PRO MP002416 fire resistant multicore cable Specifications:
- Voltage Rating Uo/U: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: Class 1 Solid Conductor, 2.5mm²
- Insulation: Mica/Glass fire resistant tape with silicone rubber cover
- Overall Screen: Aluminum/Polyester Tape
- Circuit Protective Conductor: Tinned copper
- Outer Sheath: LSZH (Low Smoke Zero Halogen)
- Core Identification: 2 cores - Blue, Brown + Bare Earth
- Sheath Colour: Red & White
Buy the Multicomp Series Fire Resistant Cables: MP002416
Order the Multicomp Series fire resistant multicore cable MP002416 online today to ensure reliable operation in fire detection, emergency lighting, and voice alarm systems. Crafted with a 2.5mm² solid conductor and coated in high-performance silicone rubber insulation, this cable guarantees safety and durability. The LSZH outer sheath minimizes smoke output, making it ideal for building safety applications. With established standards compliance and excellent technical characteristics, purchasing this cable online ensures quick delivery for urgent safety installations and maintenance.
Get Multicomp Series MP002416 today—built for fire safety and long-lasting performance in critical emergency systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002416?
You can click on the BUY or RFQ button to purchase MP002416 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002416?
You can download the MP002416 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002416?
MULTICOMP PRO
