A Premier B2B Part Search
MULTICOMP PRO MP002442 USB Sealed Connector
The MP USB sealed metal connector range features robust, high-quality connectors and adapters designed for demanding environments. These panel-mount connectors are environmentally sealed to IP68 standards, ensuring protection even when unmated or with the sealing cap removed. They are fully rear potted for additional security and available with either DIP terminations or pre-wired with USB plugs or sockets. The connectors fit a 16mm panel cut-out and include a metal dust cap for the C4 screw. They feature threaded mating, gold-plated contacts for reliable connectivity, and are suitable for various applications such as audio, automation and process control, and communications and networking.
MULTICOMP PRO MP002442 USB Sealed Connector Specifications:
- IP Rating: IP68
- Panel Thickness Recommendation: 0.8mm to 8mm
- Recommended Torque: 19 to 20Kgf-cm
- Connector Material: Copper Alloy
- Finish: Ni Plated
- Dust Cap Material: Metal
- Operating Environment: Demanding, IP68 sealed
- Suitable For: Audio, Automation, Networking
- Mounting Type: Panel mount with threaded connection
- Contact Finish: Gold plated
- Panel Cut-Out Diameter: 16mm

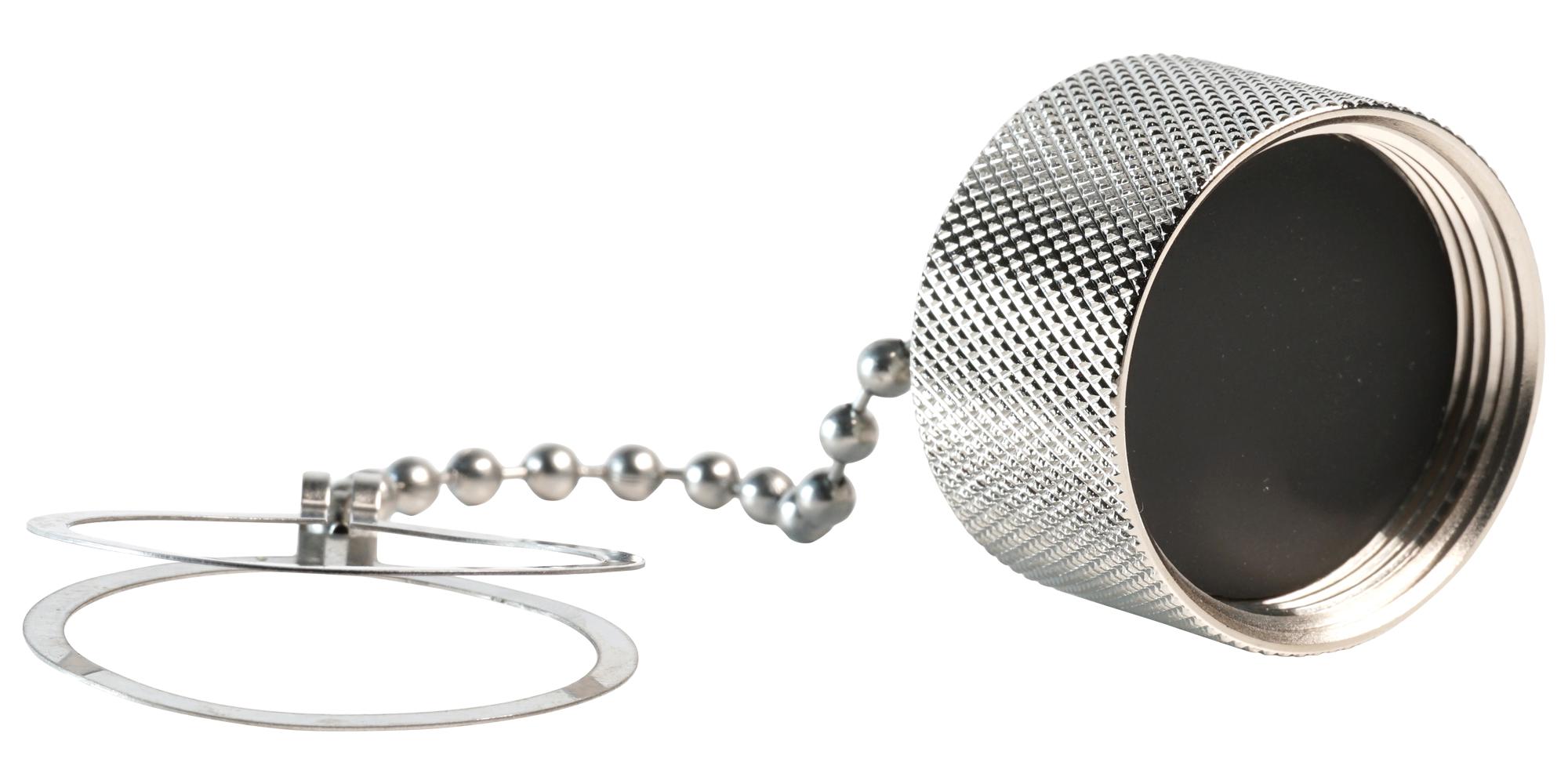

- Includes: Metal dust cap for C4 screw
Buy the Buy multicomp USB Type A Sealed Connector Part Number MP002442 Online
Secure your electronic projects with the reliable multicomp sealed USB connector MP002442. Designed for demanding environments, it features IP68 protection, threaded mating for secure connection, and gold-plated contacts for excellent conductivity. Suitable for audio, automation, and communication applications, this robust panel-mount connector includes a metal dust cap and is compatible with a 16mm panel cut-out. Perfect for outdoor installations or industrial settings, it ensures dependable performance and easy installation, making it an ideal choice for professionals needing durable, high-quality USB connectivity solutions.
Order your multicomp series MP002442 IP68 sealed USB metal connector today and enhance the reliability of your critical electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002442?
You can click on the BUY or RFQ button to purchase MP002442 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002442?
You can download the MP002442 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002442?
MULTICOMP PRO
