MULTICOMP PRO MP002417 fire resistant multicore cable

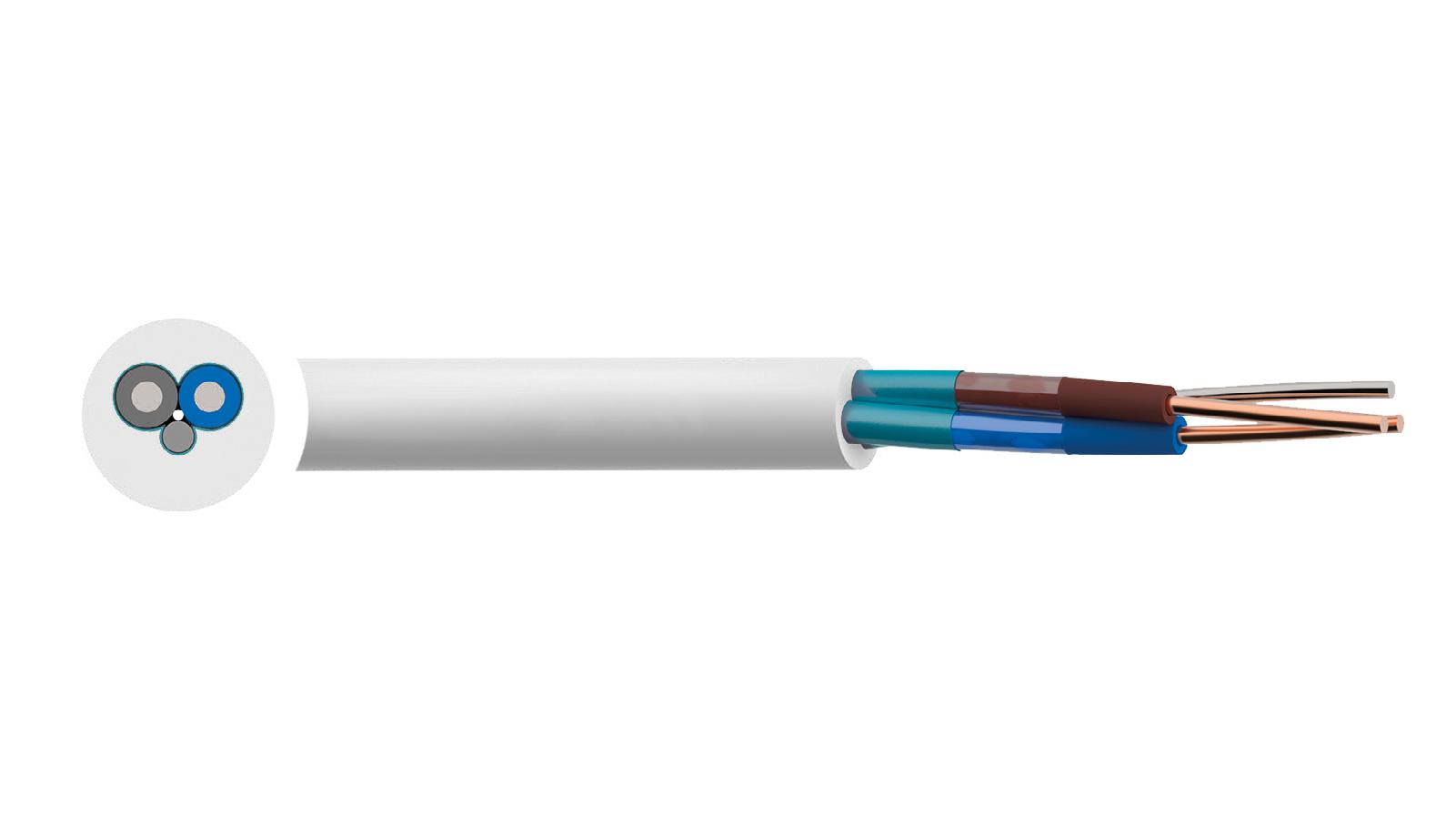

This multicore fire-resistant cable with a 2-core configuration and white color features solid conductors and high-performance silicone rubber insulation. Designed to meet rigorous standards for fire detection, alarm systems, emergency lighting, and voice alarm circuits, the cable continues to operate during a fire for enhanced safety. Its construction includes an aluminum/polyester tape screen, tinned copper protective conductor, and LSZH outer sheath. Suitable for critical applications, it ensures reliable performance in challenging environments with a voltage rating of 300V/500V and temperature tolerance from -40°C to +90°C, along with a minimum bending radius of 6 times the overall diameter.
MULTICOMP PRO MP002417 fire resistant multicore cable Specifications:
- Voltage Rating Uo/U: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: Class 1 Solid Conductor, 2 cores
- Insulation: Mica/Glass fire resistant tape covered by high performance fire resistant silicone rubber
- Overall Screen: Aluminum/Polyester Tape
- Outer Sheath: Low Smoke Zero Halogen (LSZH)
- Core Identification: 2 cores - Blue, Brown + Bare Earth
- Sheath Colour: White
- Nominal Cross Sectional Area: 1.5mm²
- Nominal Overall Diameter: approximately 9.3 mm
- Conductor Resistance at 20°C: 12.1 ohm/km
- Approximate Weight: 130 kg/km
- Current Rating for 2 Core: 22 Amps
- Voltage Drop in conduit: 30 mV/Alm
- De-Rating Factors: Based on ambient temperature from 25°C to 65°C
Buy the Multicomp 2-Core Fire Resistant Cable – Reliable Fire Safety for Building Systems
Secure your building’s fire safety with our high-quality, fire-resistant multicore cable. Designed for fire alarm, emergency lighting, and voice alarm circuits, it ensures continuous operation in fire conditions. Its solid conductor design, silicone rubber insulation, aluminum/polyester screen, and LSZH outer sheath provide durability, safety, and compliance with safety standards. Perfect for critical safety systems, this cable offers reliable performance with a 300V/500V voltage rating, a temperature range of -40°C to +90°C, and flexible installation options. Shop online now for quick, secure delivery and peace of mind in fire safety excellence.
Order your Multicomp 2-Core Fire Resistant Cable today and ensure your fire detection and emergency systems operate reliably during critical situations.
