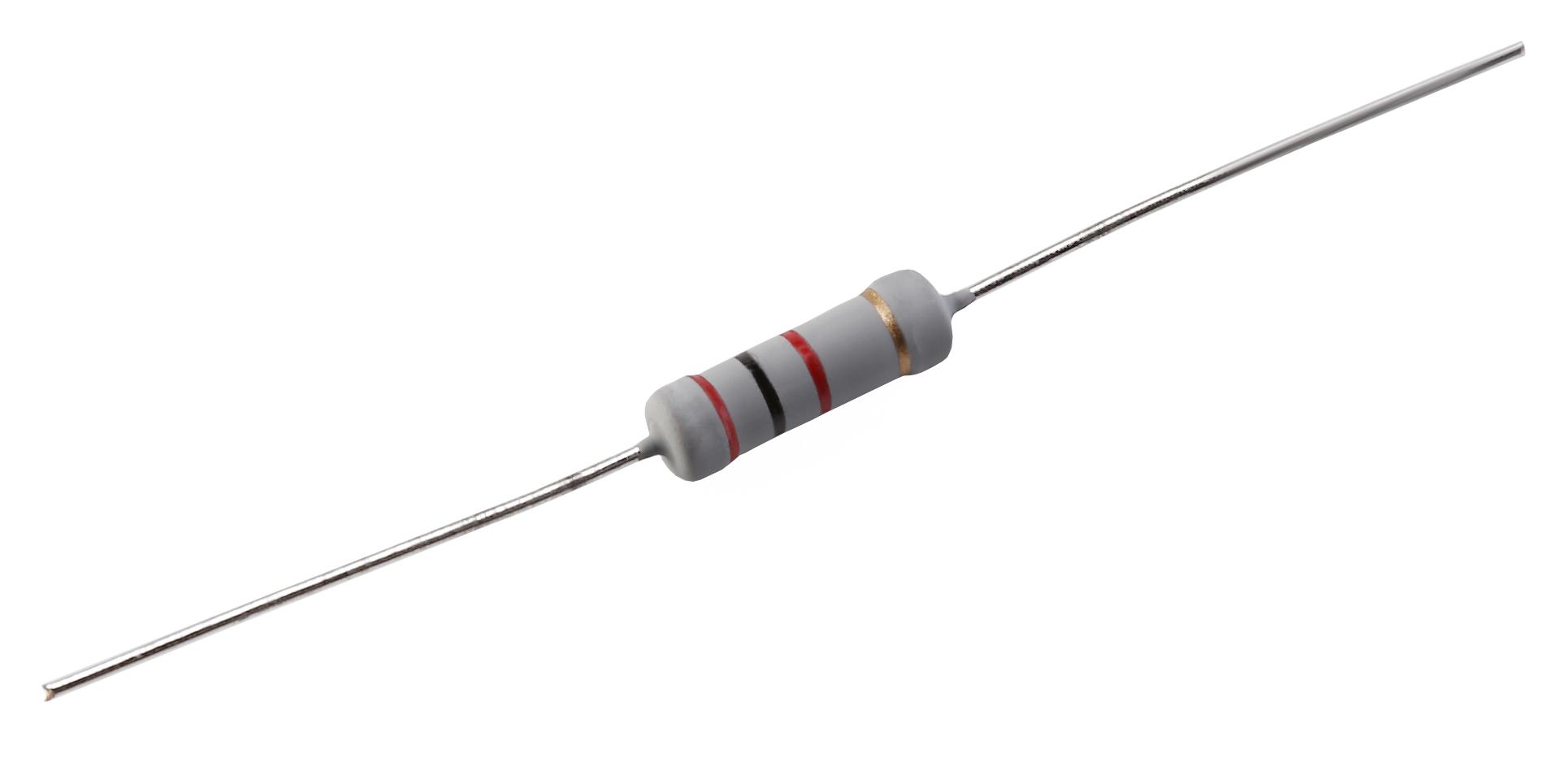

MULTICOMP PRO MP006426 metal oxide resistor
Introducing axial leaded metal oxide film resistors, designed for precision and durability in electronic circuits. These 1W resistors feature resistance values from 1Ω to 10MΩ, with tolerance levels of ±2% and maximum operating voltage of 60V, making them ideal for high-reliability applications. Known for outstanding stability, high surge capacity, and excellent performance under overload and thermal stress, these resistors are suitable for telecommunications, medical equipment, and industrial electronics. The resistors feature color-coded bodies for easy identification, with high insulation resistance and robust construction ensuring durability in various environments.
MULTICOMP PRO MP006426 metal oxide resistor Specifications:
- Power Rating: 1W
- Resistance Range: 1Ω to 10MΩ
- Tolerance: ±2%
- Temperature Coefficient: +200PPM/°C
- Maximum Operating Voltage: 60V
- Dielectric Resistance: >10000MΩ
- Endurance: ±1.5% at 70°C for 1000 hours
- Overload Voltage: 2.5×RCWV or max listed voltage
- Solderability: 95% min. coverage at 260°C for 3.4 seconds
- Temperature Range: -55°C to +200°C
- Environmental Resistance: withstand damp heat, insulation tests, and solvent exposure
- Color Code: body for resistance identification
- Insulation Resistance: >10000MΩ
- Terminal Strength: tensile load 2.5kg for 10 seconds
- Storage Temperature: -55°C to +85°C, humidity < 80%
Buy the Multicomp Series Metal Oxide Film Resistors: MP006426
Purchase the high-quality Multicomp MP006426 axial leaded metal oxide film resistor online today. Designed for high reliability, accuracy, and stability, this resistor is perfect for telecom, medical, and industrial electronics. With resistance values from 1Ω to 10MΩ and tolerance of ±2%, it offers excellent overload capacity and thermal stability. Its robust construction ensures durability under demanding conditions. Easily integrate these resistors into your projects for optimal performance, quick procurement, and reliable operation, all available at your fingertips.
Get Multicomp MP006426 today—built for precision and long-lasting durability in electronic assembly.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006426?
You can click on the BUY or RFQ button to purchase MP006426 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006426?
You can download the MP006426 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006426?
MULTICOMP PRO
