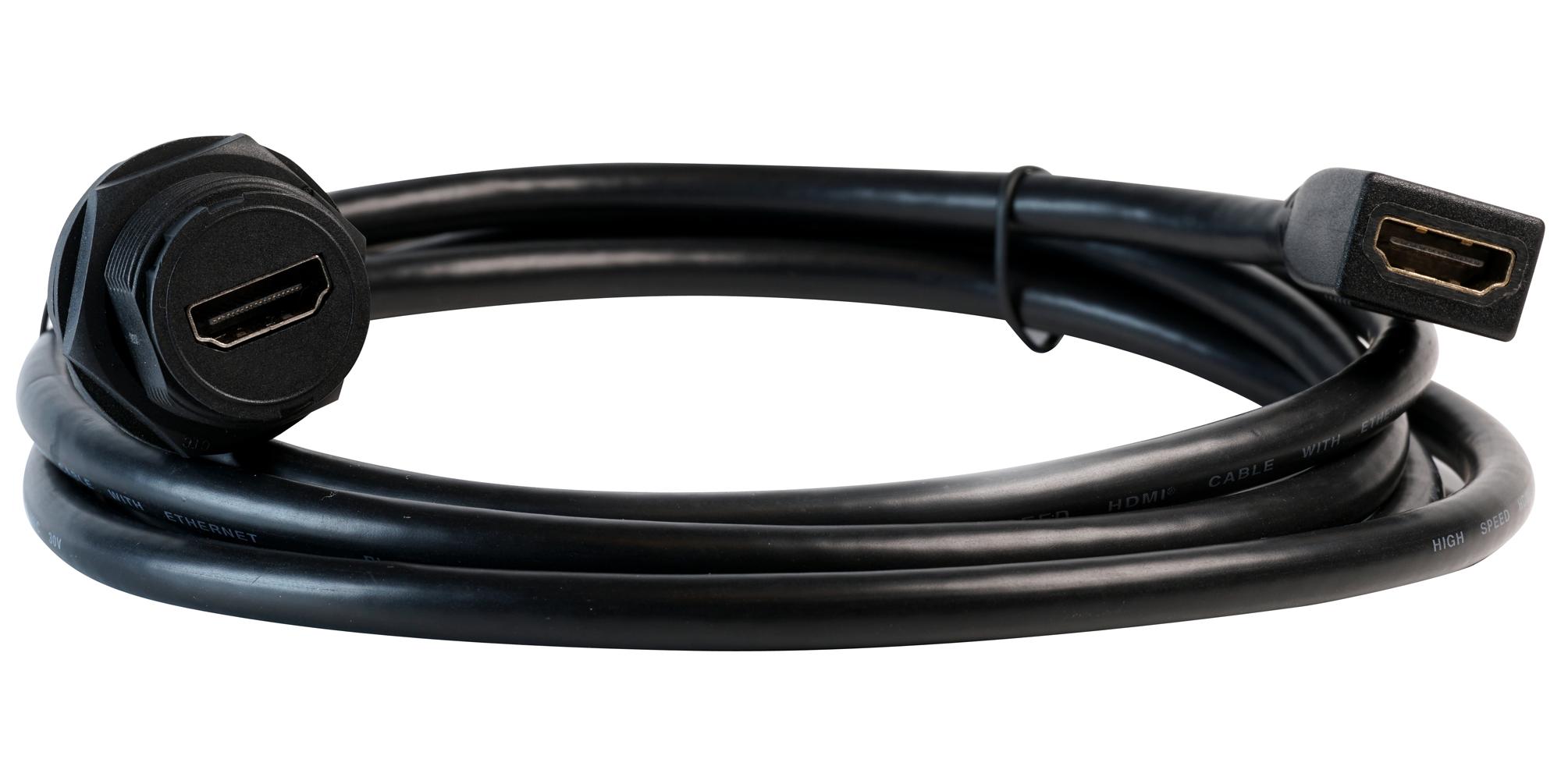

MULTICOMP PRO MP002465 HDMI Sealed Connector
The MP plastic-sealed HDMI connectors are durable, high-quality panel-mount components designed for challenging environments. These connectors meet IP67 standards, providing excellent protection against dust and water ingress. Fully rear potted for enhanced security, they are available in variants with DIP terminations or pre-wired with HDMI plugs or sockets. Features include a 20.75mm mounting cut-out, bayonet quick-mate mechanism, and gold-plated contacts for superior conductivity. Suitable for automation, industrial, marine, medical, and professional AV applications, ensuring reliable connectivity in demanding setups.
MULTICOMP PRO MP002465 HDMI Sealed Connector Specifications:
- IP Rating: IP67
- Panel Thickness: 0.8mm to 6mm
- Recommend Torque: 119 to 20Kgf-cm
- Housing Material: Thermoplastic, Colour: Black
- Contacts: Copper Alloy, Finish: Au Plated
- Shell: Copper Alloy, Finish: Ni Plated
- Cable Diameter: OD=7.3mm
- Dimensions: Mounting hole diameter 20.75mm
- Connector Type: HDMI 19P Female IDC or HDMI Plug male
- Cable Length Options: 300mm, 2m
- Construction: Fully rear potted, sealed for IP67 protection
- Features: Bayonet quick-mate, gold-plated contacts, environmentally sealed
Buy the Multicomp PRO MP002465 U+2013 Reliable HDMI Sealed Connectors for Industrial Applications
Secure high-quality, IP67-rated HDMI connectors online with Multicomp PRO MP002465. These robust, environmentally sealed connectors are ideal for industrial, marine, medical, and professional AV applications. Fully rear potted for enhanced durability, they feature gold-plated contacts for excellent conductivity, a quick bayonet lock for easy mating, and support panel thicknesses from 0.8mm to 6mm. Available in cable assembly options up to 2 meters long, ensuring reliable, secure connections even in demanding environmental conditions. Order now for dependable high-performance connectivity.
Order your Multicomp PRO MP002465 IP67 HDMI Receptacle to Receptacle cable assembly today and ensure rugged, dependable HDMI connections in tough industrial environments.
