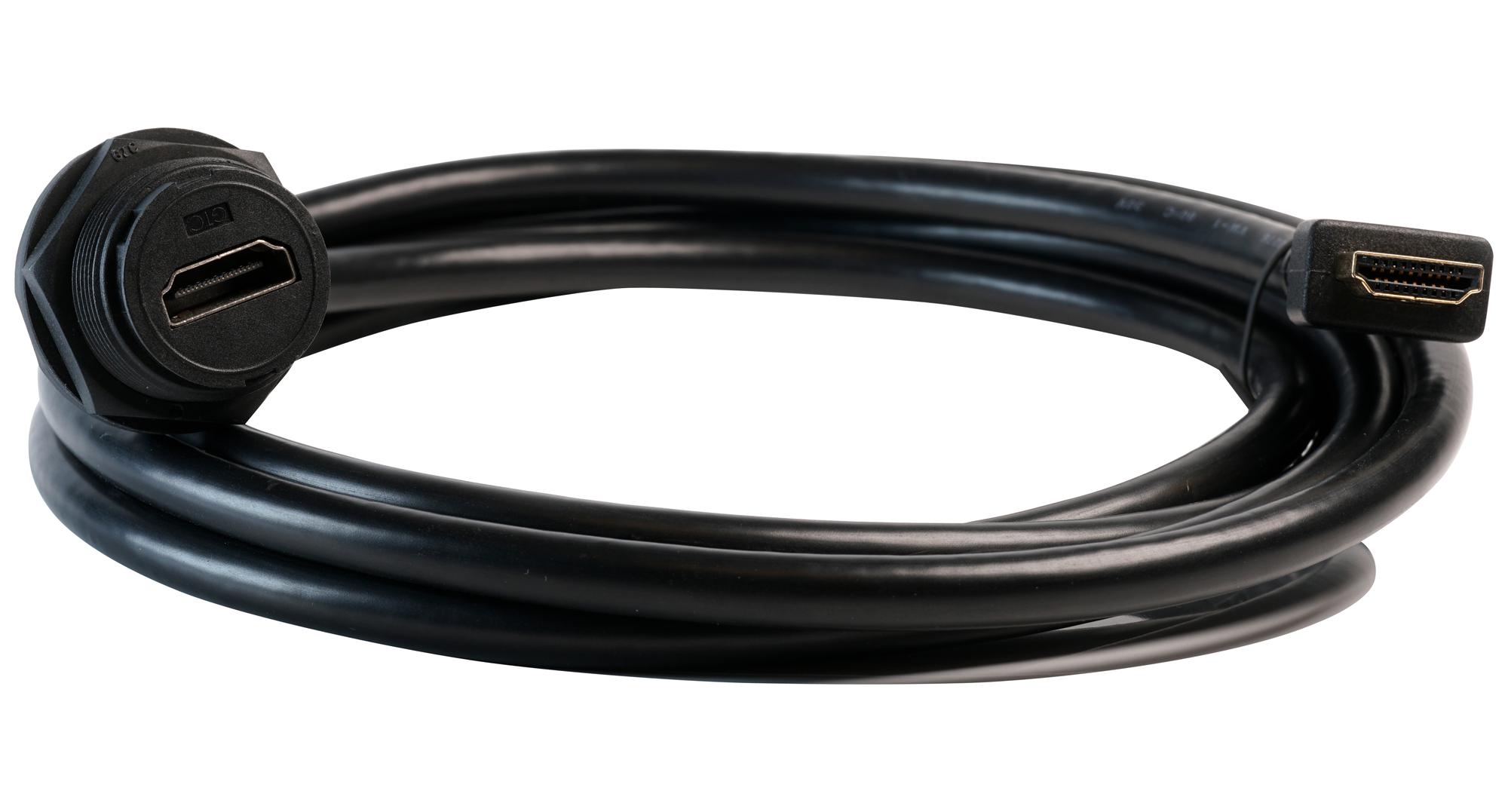

MULTICOMP PRO MP002467 HDMI Connector
The MP plastic sealed HDMI connectors are durable, environmentally sealed, IP67-rated, and designed for demanding environments. They feature a bayonet coupling with rear potting, ensuring protection even when unmated or without caps. Available with DIP or pre-wired HDMI plugs and sockets, these connectors are ideal for automation, process control, audio, industrial, marine, medical, and multimedia applications. They fit a 20.75mm cut-out, provide reliable gold-plated contact connections, and are engineered for long-lasting performance in harsh conditions.
MULTICOMP PRO MP002467 HDMI Connector Specifications:
- IP Rating: IP67
- Panel Mount: 20.75mm cut-out
- Material: Thermoplastic housing, Copper alloy contacts with gold plating
- Finish: Nickel-plated shell, Au plated contacts
- Cable OD: 7.3mm
- Connector Type: Receptacle to Receptacle or Plug to Receptacle
- Wiring Options: DIP or pre-wired with HDMI plugs or sockets
- Sealing: Fully rear potted, seal intact even when unmated
- Recommended Panel Thickness: 0.8mm to 6mm
- Torque: 119 to 20Kgf-cm
Buy the Buy multicomp HDMI Connector Part Number MP002467 Online
Order the multicomp HDMI Connector MP002467 online today for reliable, rugged connectivity suitable for industrial, medical, marine, and professional video applications. Featuring IP67 sealing and gold-plated contacts, this connector offers superb protection against dust and water ingress. Its bayonet lock mechanism ensures a secure fit, while rear potting enhances durability even when unmated. With options for DIP or pre-wired configurations and compatibility with a 20.75mm panel cut-out, this connector is an essential component for demanding electronic systems requiring secure, long-lasting HDMI connections.
Get multicomp HDMI MP002467 today—designed for industrial-grade, long-lasting durability and secure environmental sealing in demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002467?
You can click on the BUY or RFQ button to purchase MP002467 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002467?
You can download the MP002467 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002467?
MULTICOMP PRO
