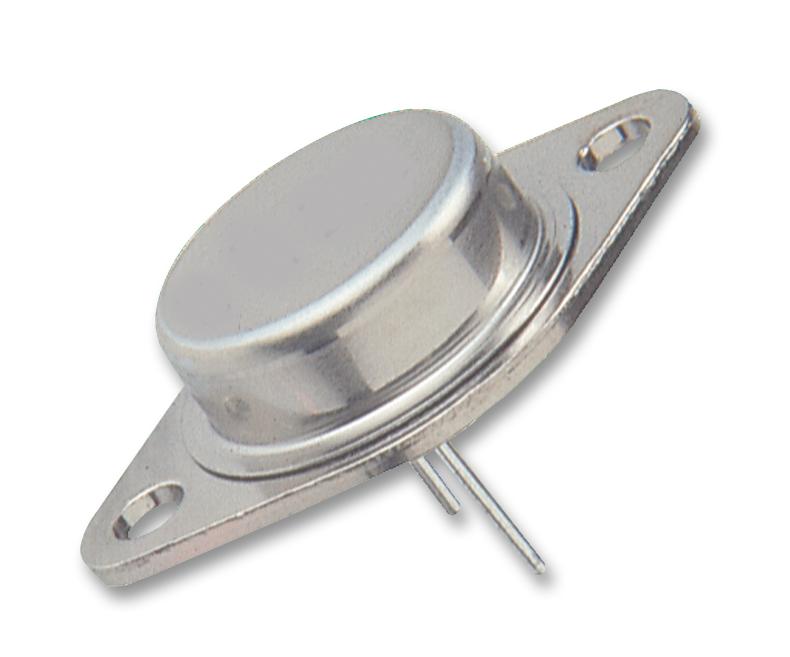

MULTICOMP PRO 2N6308 High Power Transistor
The 2N6308 is a high-voltage silicon NPN power transistor designed for inverter circuits, switching regulators, and line-operated amplifiers. It features a collector-base voltage of 700V, collector-emitter voltage of 350V, emitter-base voltage of 8V, and a maximum continuous collector current of 8A. With a low saturation voltage of 1.5V at 3A and a minimum gain-bandwidth product of 5 MHz at 0.3A, it offers reliable performance in switching power supplies and industrial electronics. Its maximum junction temperature is +200°C, and it dissipates up to 125W, making it suitable for high-power switching applications.
MULTICOMP PRO 2N6308 High Power Transistor Specifications:
- Collector-Base Voltage: 700V
- Collector-Emitter Voltage: 350V
- Emitter-Base Voltage: 8V
- Continuous Collector Current: 8A
- Base Current: 4A
- Total Device Dissipation: 125W at 25°C
- Operating Junction Temperature Range: -65°C to +200°C
- Maximum Storage Temperature Range: -65°C to +200°C
- Current Gain-Bandwidth Product: 5 MHz at 0.3A
- Collector-Emitter Saturation Voltage: 1.5V at 3A
- Voltage Rating: 350V collector-emitter, 700V collector-base, 8V emitter-base
- Thermal Dissipation Derate: 0.714 mW/°C above 25°C
- Switching Rise Time: 0.6 μs
- Fall Time: 0.4 μs
Buy the Buy Multicomp Power Transistor Part Number 2N6308 Online
Purchase the Multicomp 2N6308 high-voltage silicon NPN power transistor online today to power your industrial and electronic projects. It offers a maximum collector-emitter voltage of 350V, a collector-base voltage of 700V, and a continuous collector current of 8A, providing dependable high-power switching performance. Perfect for inverters, switching regulators, and high-voltage applications, this transistor combines durability with high efficiency. Buy now to get reliable operation in demanding industrial and consumer electronic systems and ensure your projects meet high standards of quality and performance.
Order your Multicomp high-voltage power transistor 2N6308 today and ensure your high-power switching circuits operate with reliability and efficiency.
