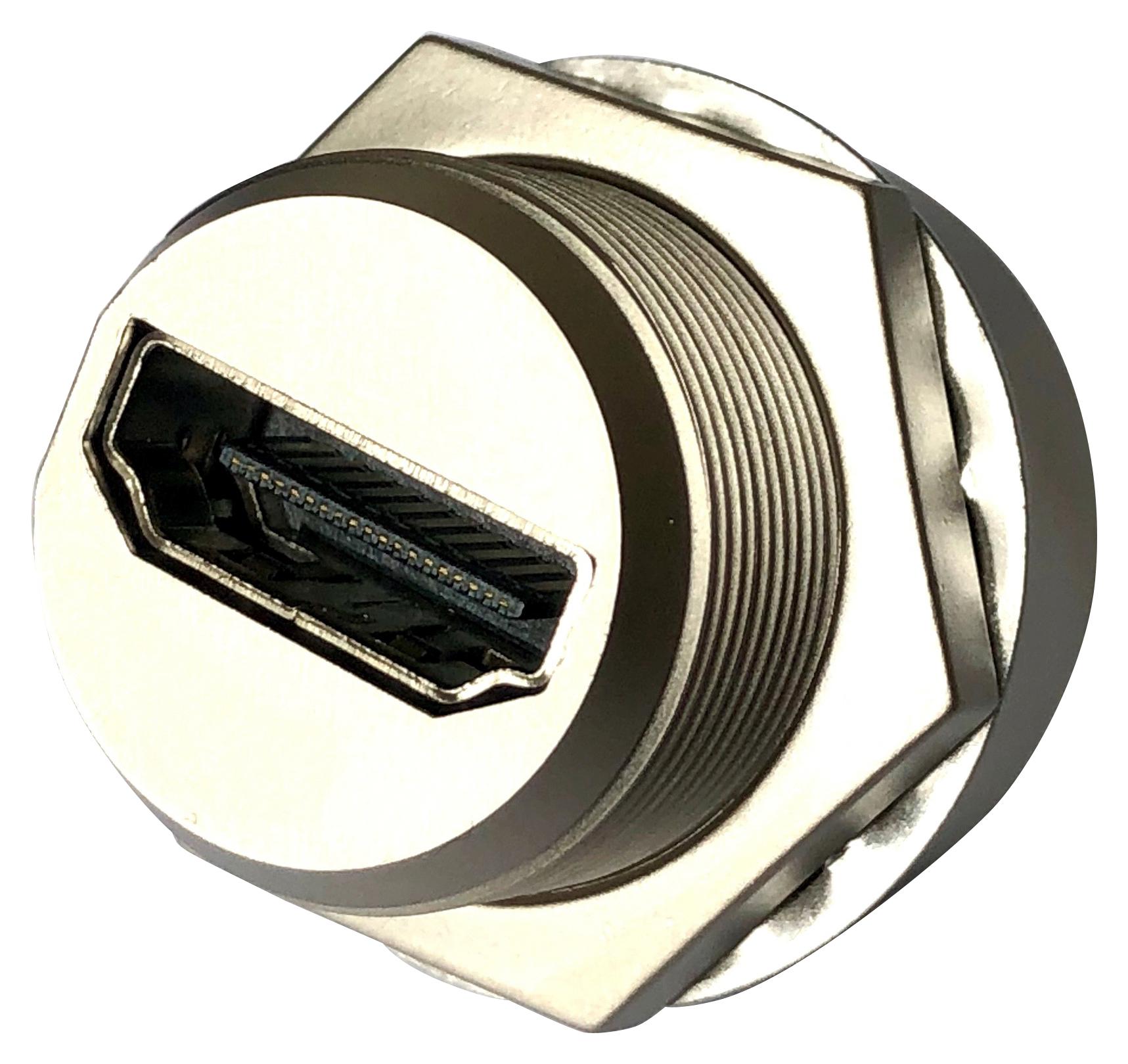

MULTICOMP PRO MP002468 HDMI Connector
The MP metal sealed HDMI series connectors are robust, metal-built connectors designed for demanding environments. They are environmentally sealed to IP68 standards, ensuring protection against water and dust ingress. These panel-mount connectors feature a fully rear potted design, providing additional protection even when unmated or when the sealing cap is not connected. Available with either DIP terminations or pre-wired with HDMI plug or socket, they are suitable for automation, process control, industrial, marine, and medical applications. The connectors fit a 20.75mm cut-out, have threaded mating for secure connection, and feature gold-plated contacts for enhanced conductivity and corrosion resistance.
MULTICOMP PRO MP002468 HDMI Connector Specifications:
- IP Rating: IP68
- Panel Thickness Recommendation: 0.8mm to 4.5mm
- Material: Zinc Alloy housing with Ni Plated finish
- Seal Material: Silicone, Red
- Contacts: Copper Alloy, Au Plated
- Shell Material: Copper Alloy, Ni Plated
- Cable Compatibility: UL20276, OD=6.8mm
- Mounting: Panel mount with threaded connection
- Operating Environment: Industrial, Marine, Medical
- Size: Fits a 20.75mm panel cut-out
- Additional features: Fully rear potted, sealed design, corrosion-resistant gold contacts
Buy the Multicomp Series IP68 HDMI Connector: MP002468
Secure your system with the reliable and robust HDMI Connector from Multicomp. Designed for industrial and demanding environments, this IP68-rated, metal-sealed connector offers excellent protection against water and dust ingress. Its fully rear potted design, threaded mounting, and gold-plated contacts guarantee stable, corrosion-resistant connections suitable for automation, marine, and medical applications. Easy to install with a 20.75mm panel cut-out, it ensures long-term durability and high-performance connectivity, making it a perfect choice for critical projects requiring sealed, high-quality HDMI connections.
Order your Multicomp Series MP002468 HDMI Connector today and ensure your equipment is protected with reliable, durable, and sealed connections for harsh environments.
