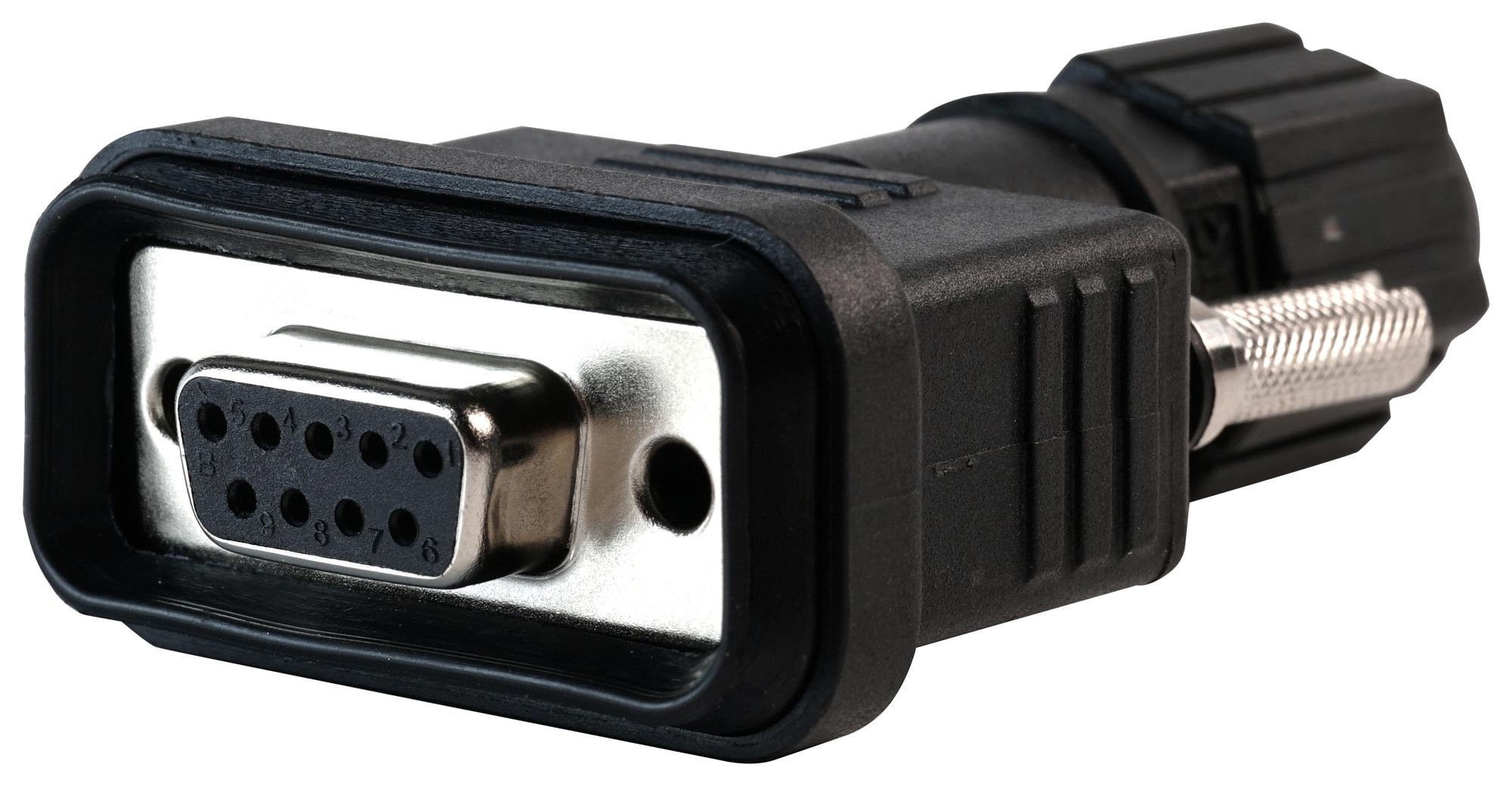

MULTICOMP PRO MP002478 Sealed D-Sub Connectors
The MP sealed D-Sub series connectors are rugged, environmentally sealed panel-mount options with IP67 rating, fully rear potted for enhanced protection. Designed for industrial, automation, and communication systems, they are available in 9-pin and high-density 15-pin configurations, featuring solder or pre-wired terminations, screw-type mating, and gold-plated contacts. These connectors excel in harsh environments, ensuring reliable connectivity in audio, process control, networking, and automation applications. Their durable construction supports long-term operation and resistance to dust, water, and mechanical stress.
MULTICOMP PRO MP002478 Sealed D-Sub Connectors Specifications:
- IP Rating: IP67
- Configuration: 9P and 15P options
- Contacts: Copper Alloy, Gold Plated
- Housing Material: Thermoplastic, Black
- Shell Material: Cold Roll Steel, Ni Plated
- Sealing: EPDM rubber pads and gaskets
- Screw Type: 4-40, Stainless Steel
- Suitable Cable OD: 4mm to 8mm
- Gland Nut Torque: 9 to 10 Kgf-cm
- Cover Torque: 6 to 7 Kgf-cm
- Application: Rugged industrial environments, automation, networking, audio, and process control systems
Buy the Multicomp Pro MP002478 – Reliable Sealed Connectors for Industrial Applications
Purchase the dependable Multicomp Pro sealed D-Sub connectors online today, engineered for harsh industrial environments. With IP67 sealing, gold-plated contacts, and a durable thermoplastic housing, these connectors ensure reliable connections in automation, networking, and communication systems. Their rugged construction with rear potted design protects against dust, water, and mechanical stresses, making them suitable for long-term industrial use. Easy to install with screw-type mating and compatible with cables from 4mm to 8mm, ensuring versatile applications and secure, long-lasting performance in demanding conditions.
Get Multicomp Pro MP002478 today—built for rugged environments and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002478?
You can click on the BUY or RFQ button to purchase MP002478 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002478?
You can download the MP002478 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002478?
MULTICOMP PRO
