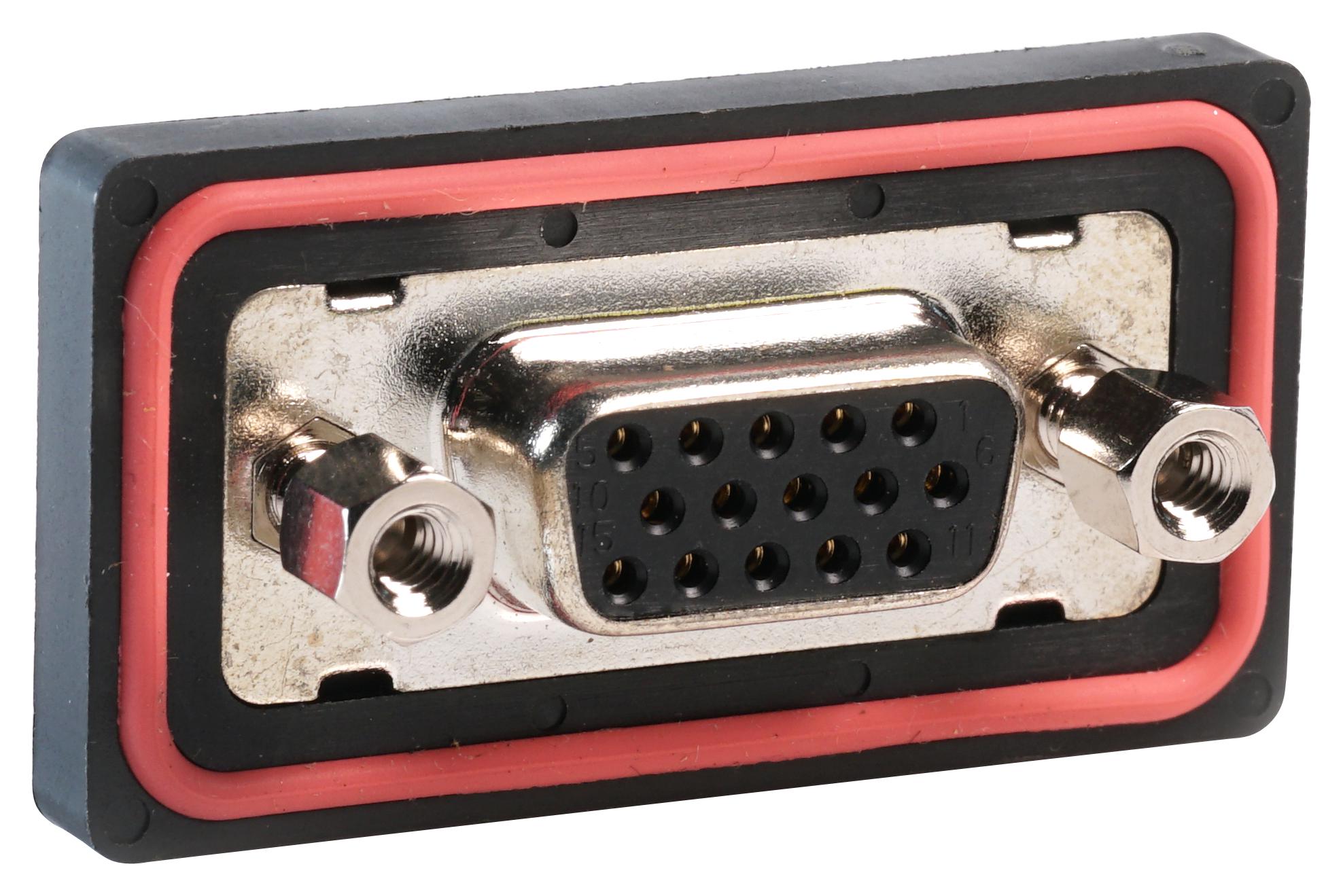

MULTICOMP PRO MP002480 Sealed D-Sub Connector
The MP sealed D-Sub series connectors are designed for demanding environments, offering environmental sealing and rugged construction. These panel-mount connectors are fully rear potted, providing protection even when unmated or with the sealing cap removed. Available in standard 9-pin and high-density 15-pin configurations, they feature screw mating and gold-plated contacts for reliable connections. Suitable for use in audio, automation, process control, and communications applications.
MULTICOMP PRO MP002480 Sealed D-Sub Connector Specifications:
- IP Rating: IP68
- Panel Thickness: 0.8mm to 2mm
- Recommend Torque: 12.5 to 3 Kgf-cm
- Housing Material: Thermoplastic, Black
- Contacts: Copper Alloy, Gold Flash or Au Plated
- Shell Material: Cold Rolled Steel, Ni Plated
- Seal Material: EPDM, Black
- Suitable Cable OD: 4mm to 8mm
- Recommend Cover Torque: 6 to 7 Kgf-cm
- Recommend Gland Nut Torque: 9 to 10 Kgf-cm
- Operating Voltage: 5A
- Dimensions vary based on pin configuration and model
Buy the Buy Multicomp MP002480 Part Number MP002480 Online
Discover reliable, sealed D-Sub connectors perfect for demanding environments, featuring environmental sealing, gold-plated contacts, and rugged construction. These panel-mount connectors are fully rear potted, offering high protection even when unmated or with the sealing cap removed. Available in 9-pin and 15-pin configurations, they ensure secure screw mating for dependable data and signal transmission. Ideal for applications in automation, audio, process control, and communication systems, these connectors combine durability with ease of installation, ensuring excellent performance under harsh conditions.
Get Multicomp MP002480 today—built for precision and long-lasting durability in demanding environments.
