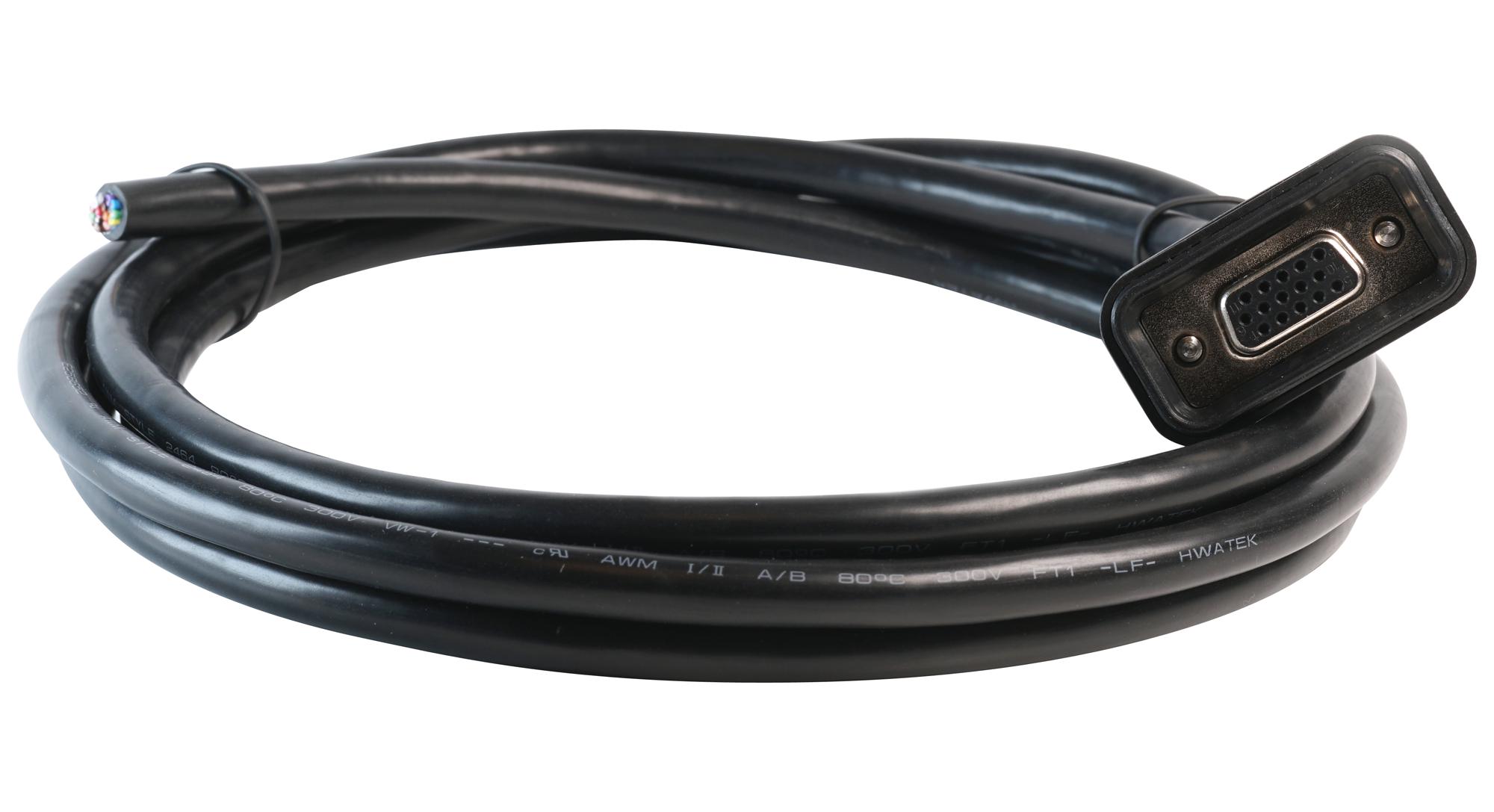

MULTICOMP-PRO MP002482 D-Sub Connector
The MP sealed D-Sub series connectors are rugged, environmentally protected panel-mount connectors suitable for demanding applications. Fully rear potted for reliability, these connectors come in 9-pin and 15-pin configurations with screw-mating and gold-plated contacts. Designed for environments requiring IP67 and IP68 ratings, they are ideal for audio, automation, processing, and communication systems, providing high durability and secure connections in challenging conditions. They are available with advanced sealing features, suitable for demanding industrial and networking applications, ensuring long-lasting performance and environmental protection.
MULTICOMP-PRO MP002482 D-Sub Connector Specifications:
- IP Rating: IP67 and IP68
- Suitable Cable OD: 4mm to 8mm
- Housing: Thermoplastic, Black
- Contacts: Copper Alloy, Gold or Au Plated
- Shell: Cold Roll Steel, Ni Plated
- Seal: EPDM, Black
- Gasket: EPDM, Black
- Screw: #4-40, Copper Alloy, Ni Plated
- Dimensions: Millimetres, detailed per model
- Panel Thickness: 0.8mm to 2mm
- Recommend Panel Screw Length: 5.0mm for under 12mm, 6.0mm for 12–20mm thickness
- Gland Nut Torque: 9 to 10 Kgf-cm
- Cover Torque: 6 to 7 Kgf-cm
- Solder Contacts: Au or Gold Flash Plated
- Suitable for high-density 9P and 15P configurations
- Applications include automation, communication, and networking
Buy the Buy Premier Farell D-Sub Connectors Part Number MP002482 Online
Order the Premier Farell D-Sub connector MP002482 now to ensure reliable, environmentally sealed connections for your industrial, automation, or communication systems. Featuring IP67/IP68 ratings, gold-plated contacts, and rugged construction, this connector offers high durability in demanding environments. Fully rear potted and available in 9P and 15P configurations, it is designed for easy mounting and secure connections. Perfect for applications requiring robust, long-lasting performance where environmental protection and reliable signal integrity are critical. Purchase online for fast, secure shipping.
Get Premier Farell D-Sub MP002482 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002482?
You can click on the BUY or RFQ button to purchase MP002482 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002482?
You can download the MP002482 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002482?
MULTICOMP-PRO
