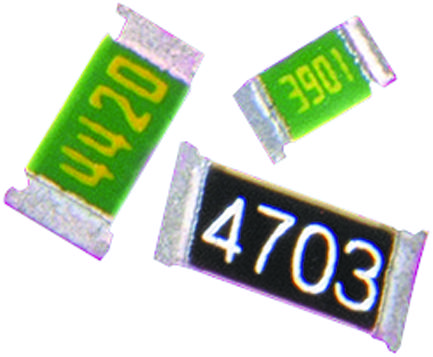

MULTICOMP-PRO MCTC0525B8451T5G High Power Chip Resistor
This high-power chip resistor offers excellent pulse withstand performance with a tolerance of ±0.1%. It features a maximum working voltage of 100V, an industry-standard temperature coefficient of ±25ppm/°C, and an operational temperature range from -55°C to 155°C. Suitable for demanding electronic applications, it is rated 0.125W at 70°C, with resistance options from 109 to 1MQ based on E-24 and E-96 series. The construction includes high-purity alumina substrate, Sn outer terminations, Ni barrier middle layer, and Ag resistive element, making it ideal for precision electronics in various industries.
MULTICOMP-PRO MCTC0525B8451T5G High Power Chip Resistor Specifications:
- Case Size: 0805
- Power Rating at 70°C: 0.125W (1/8W)
- Max. Working Voltage: 150V
- Max. Overload Voltage: 300V
- Dielectric Withstanding Voltage: 500V
- Resistance Range: 109 to 1MQ
- Resistance Tolerance: ±0.1%
- Temperature Range: -55°C to +155°C
- Ambient Temperature: Up to 270°C
- Temperature Coefficient: ±25ppm/°C
- Construction: High purity alumina substrate, Sn outer termination, Ni barrier middle, Ag resistive element
- Dimensions: Length 40.1mm, Width 0.55mm, Height 0.30mm
- Marking: Resistance value with industry standard codes
Buy the Buy Multicomp Resistance Part Number MCTC0525B8451T5G Online
Enhance your electronic assemblies with our high power chip resistor, rated 0.125W at 70°C, featuring great pulse withstand and high accuracy. With resistance options between 109Ω and 1 MΩ, it provides excellent stability from -55°C to +155°C. The resistor includes a high purity alumina substrate, Sn outer terminations, Ni barrier middle layer, and Ag resistive element, ensuring optimal performance in demanding applications. Trust in its industry-standard temperature coefficient of ±25ppm/°C and minimal resistance change after overload, perfect for precision circuits.
Order your Multicomp Resistor MCTC0525B8451T5G today and ensure your electronic projects benefit from reliable pulse resistance and high accuracy.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCTC0525B8451T5G?
You can click on the BUY or RFQ button to purchase MCTC0525B8451T5G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTC0525B8451T5G?
You can download the MCTC0525B8451T5G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCTC0525B8451T5G?
MULTICOMP-PRO
