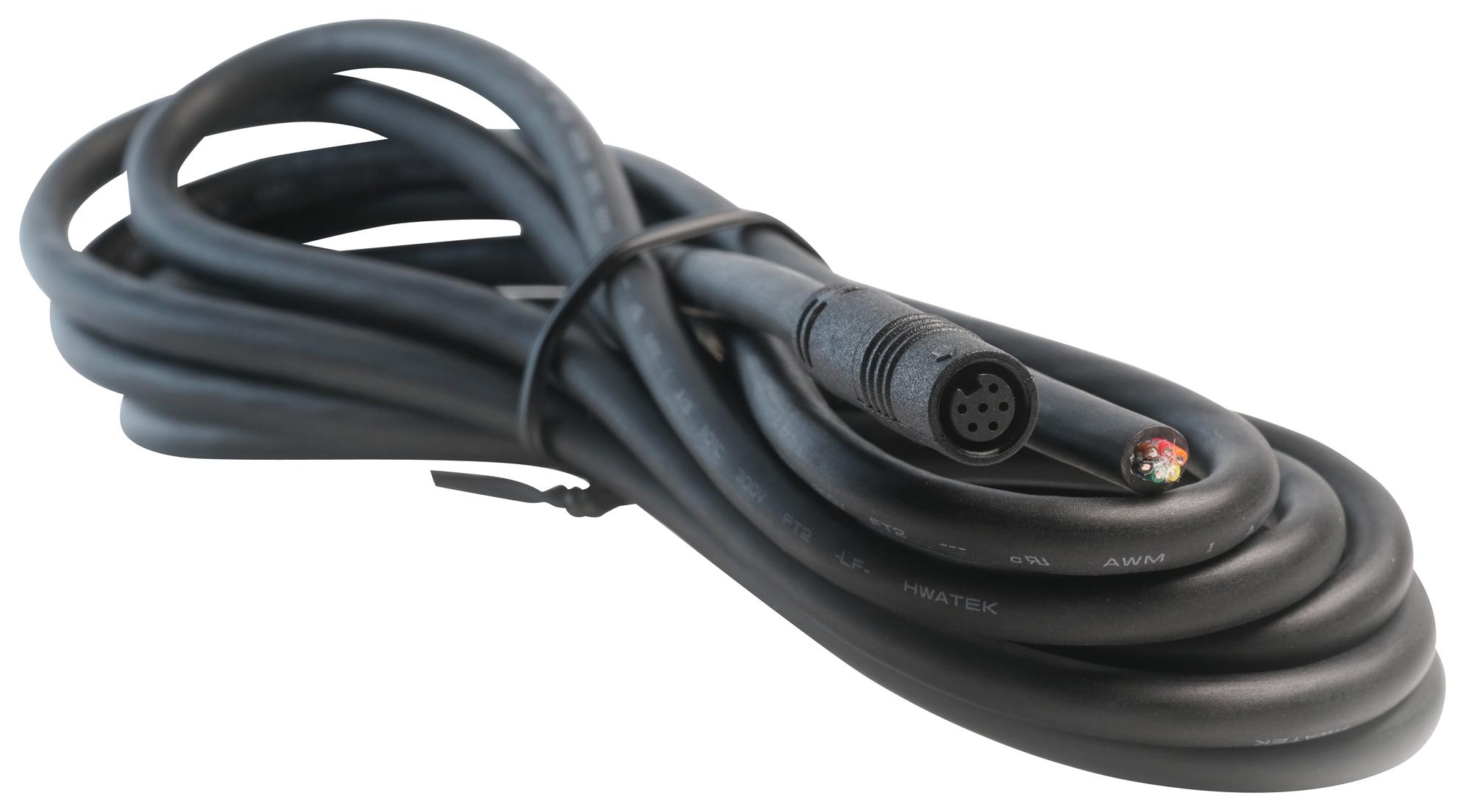

MULTICOMP-PRO MP002490 M6 Snap-In Connector
The MP M6 Snap-In Series features compact, IP67-rated connectors with an 8.5mm diameter for quick, secure connections in tight spaces. Designed for robustness, these connectors support cable-to-panel or cable-to-cable interfaces, offering quick snap-in assembly. They come in 3 and 6 pole variants, with either solder or pre-wired terminations. Suitable for demanding environments, these connectors are ideal for automation, process control, security, marine, and medical applications, ensuring reliable and sealed connections in harsh conditions.
MULTICOMP-PRO MP002490 M6 Snap-In Connector Specifications:
- IP Rating: IP67
- Diameter: 8.5mm
- Panel Cut-Out: 6.1mm
- Housing Material: Thermoplastic, black
- Contacts Material: Copper Alloy, Au plated
- Cable Compatibility: UL20549 24AWGx6C+A or 24AWGx3C+Al/My
- Over Mold Material: TPU, black
- Rated Voltage: Not specified, suitable for industrial use
- Environmental Resistance: Sealed against dust and water
- Application: Cable-to-cable or cable-to-panel connections, automation, medical, marine, security
- Dimensions: 8.5mm diameter, suitable for 0.8-2mm panel thickness
- Torque Recommendation: 5 to 6 Kgf-cm
Buy the Buy Multicomp M6 Snap-In Connector Part Number MP002490 Online
Order the Multicomp M6 Snap-In Connector MP002490 online now and enjoy fast, secure, and sealed connections for industrial, medical, and marine applications. Designed for ease of installation with quick snap-in coupling, these connectors provide environmental sealing rated IP67, ensuring reliable performance in harsh conditions. Crafted from durable thermoplastic with gold-plated contacts, they fit panel thicknesses of 0.8mm to 2mm and support 6P configurations for versatile use. Enhance your setup with these high-quality, corrosion-resistant connectors, available for immediate purchase with fast delivery and excellent support.
Get Multicomp MP002490 today—built for precision, durable sealing, and reliable connections in demanding industrial and medical environments.
