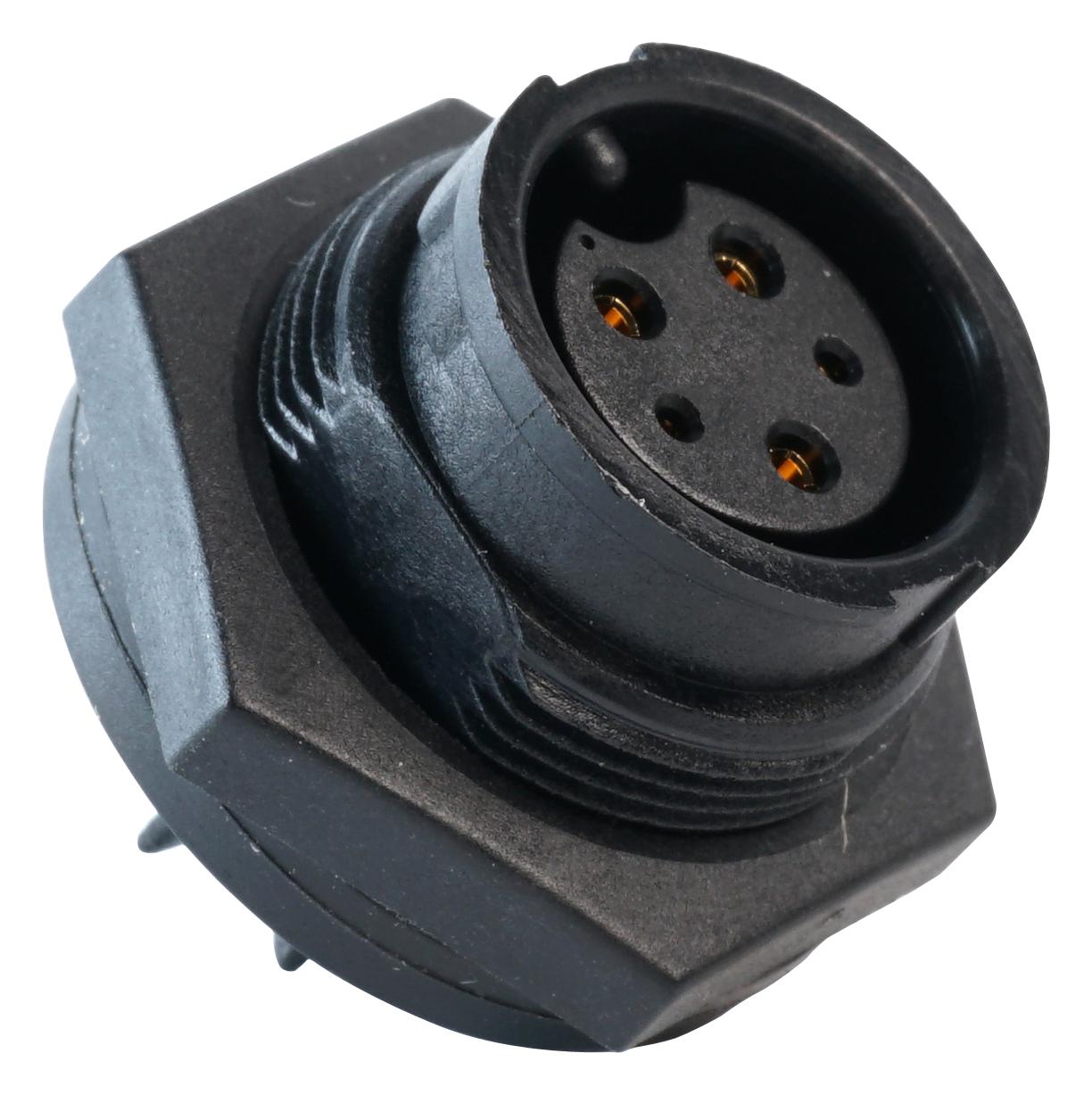

MULTICOMP PRO MP002506 Hybrid Connector
The MP hybrid series offers a compact, versatile connection solution combining power and signal functions in an environmentally sealed IP67 housing. Suitable for limited space panels, these connectors feature rear potting for protection when unmated or without caps. They are available in C2 and C3 sizes supporting solder, crimp, or pre-wired terminations, with a secure bayonet coupling mechanism. Ideal for automation, marine, medical, and security sectors, providing durability and reliable connectivity in harsh environments.
MULTICOMP PRO MP002506 Hybrid Connector Specifications:
- IP Rating: IP67
- Material: Thermoplastic housing, Copper Alloy contacts with Au plating, Silicone and PVC seals
- Cable Diameter Compatibility: 5mm to 6mm, OD=6.9mm, OD=8mm
- Panel Mounting: Supports panel thickness of 0.8mm to 4mm
- Torque Recommendations: 6 to 7Kgf-cm or 9 to 10Kgf-cm depending on model
- Connection Method: Solder, crimp, or pre-wired terminations
- Dimensions vary by model, supporting panel cut-outs of 16mm (C2) or 20.75mm (C3)
- Environmental Seal: Sealed to IP67 for protection against dust and water
- Mechanical: Bayonet coupling for secure connection
- Application: Automation systems, process control, marine, medical, security industries
Buy the Buy Multicomp Hybrid Connectors Part Number MP002506 Online
Discover the high-quality Multicomp hybrid connector MP002506, designed for versatile power and signal connections. Its robust IP67 sealing ensures protection from dust and water, making it ideal for industrial, marine, medical, and security applications. The connector supports multiple termination methods—solder, crimp, or pre-wired—for convenient installation. With secure bayonet coupling and durable materials, it guarantees long-lasting performance even in demanding environments. Purchase online today to enhance your connectivity solutions with this reliable, compact device.
Get Multicomp MP002506 today—built for flexibility, durability, and reliable power-signal integration in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002506?
You can click on the BUY or RFQ button to purchase MP002506 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002506?
You can download the MP002506 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002506?
MULTICOMP PRO
