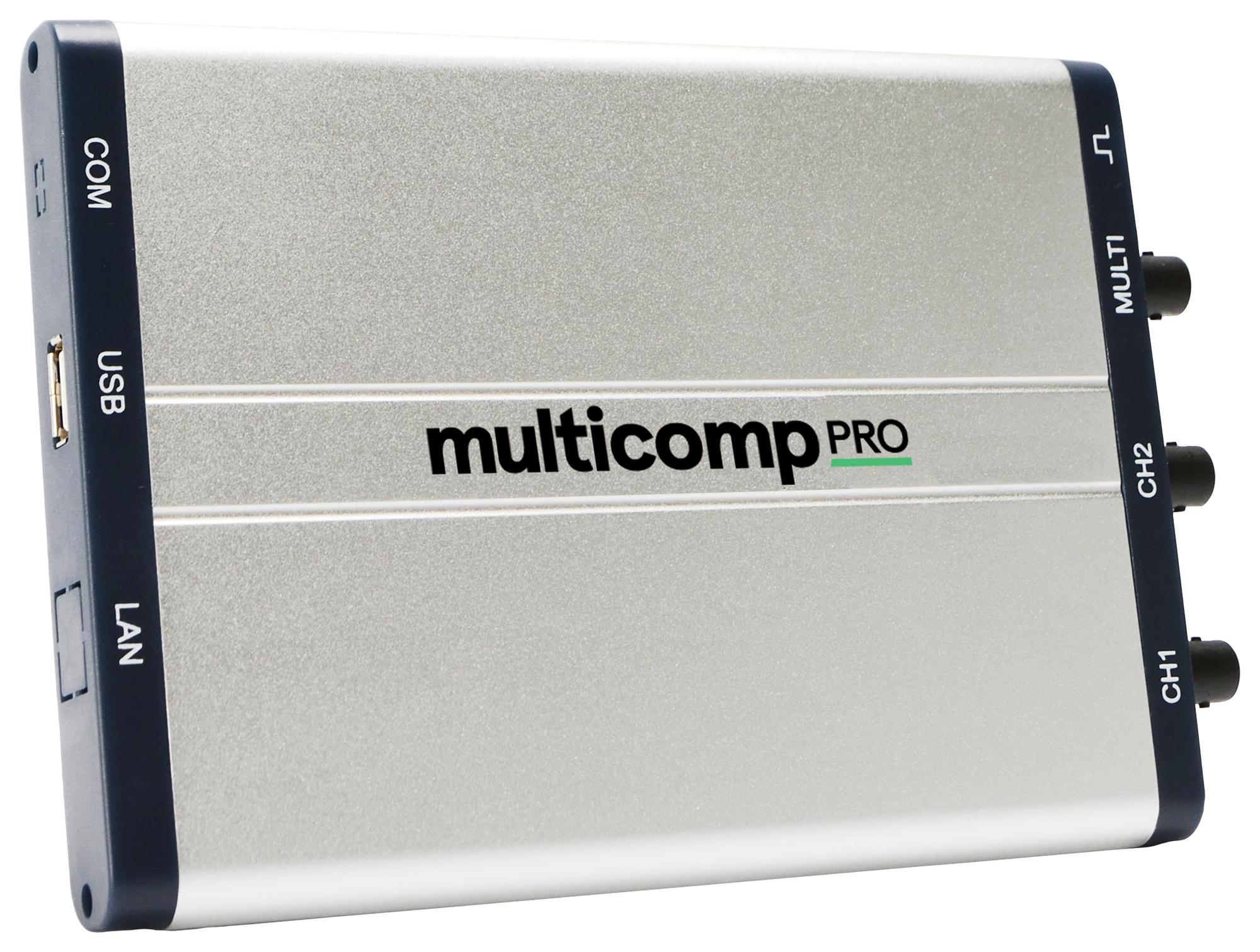

MULTICOMP PRO MP720018US dual channel oscilloscope
The MP720018 is a dual-channel, 60 MHz, 8-bit PC-based oscilloscope with a 10 million record length, featuring an intuitive UI, multiple trigger options, USB and LAN control, and ultra-portable design. It supports X-Y and FFT modes, displays waveforms simultaneously, with a horizontal scale from 2 ns/div to 100 s/div and sensitivity from 2 mV/div to 5 V/div. Trigger types include edge, pulse, video, slope, and alternate, with auto, normal, and single modes, plus high-precision sampling and quick connectivity. It includes essential accessories and offers reliable performance for laboratory or field use.
MULTICOMP PRO MP720018US dual channel oscilloscope Specifications:
- Bandwidth: 60MHz
- Channels: 2 analogue, 1 external trigger
- Sample Rate: 1GSa/s
- Record Length: 10 million samples
- Horizontal Scale: 2 ns/div to 100 s/div (step by 1, 2, 5)
- Input Impedance: 1 MΩ + 2%, in parallel with 5 pF
- Input Coupling: DC, AC, GND
- Vertical Sensitivity: 2 mV/div to 5 V/div
- Trigger Types: Edge, Pulse, Video, Slope, Alternate
- Trigger Mode: Auto, Normal, Single
- Acquisition Modes: Sample, Peak Detect, Average
- Interface: USB 2.0, LAN (optional)
- Power Supply: 5.0V/1A
- Dimensions: 190mm x 120mm x 18mm
- Device Weight: 0.3 kg
- Accessories: USB cable, CD-ROM, manual, probes, probe adjust tool
- Warranty: 12 months
Buy the Farnell Series Dual Channel Oscilloscope: MP720018US
Discover the Farnell Series MP720018US dual-channel oscilloscope, designed for professional testing and measurement tasks. With 60 MHz bandwidth, 10 million record length, and multiple trigger options, it offers excellent signal analysis capabilities. Its ultra-portable design, USB and LAN interfaces, and easy-to-use UI make it ideal for lab or field applications. Support for FFT and X-Y modes, along with high sampling rates, ensures precise results. Purchase online now and elevate your measurement setups with reliable, advanced features.
Order your Farnell Series MP720018US dual-channel oscilloscope today and enhance your testing with its high bandwidth and portable design.
