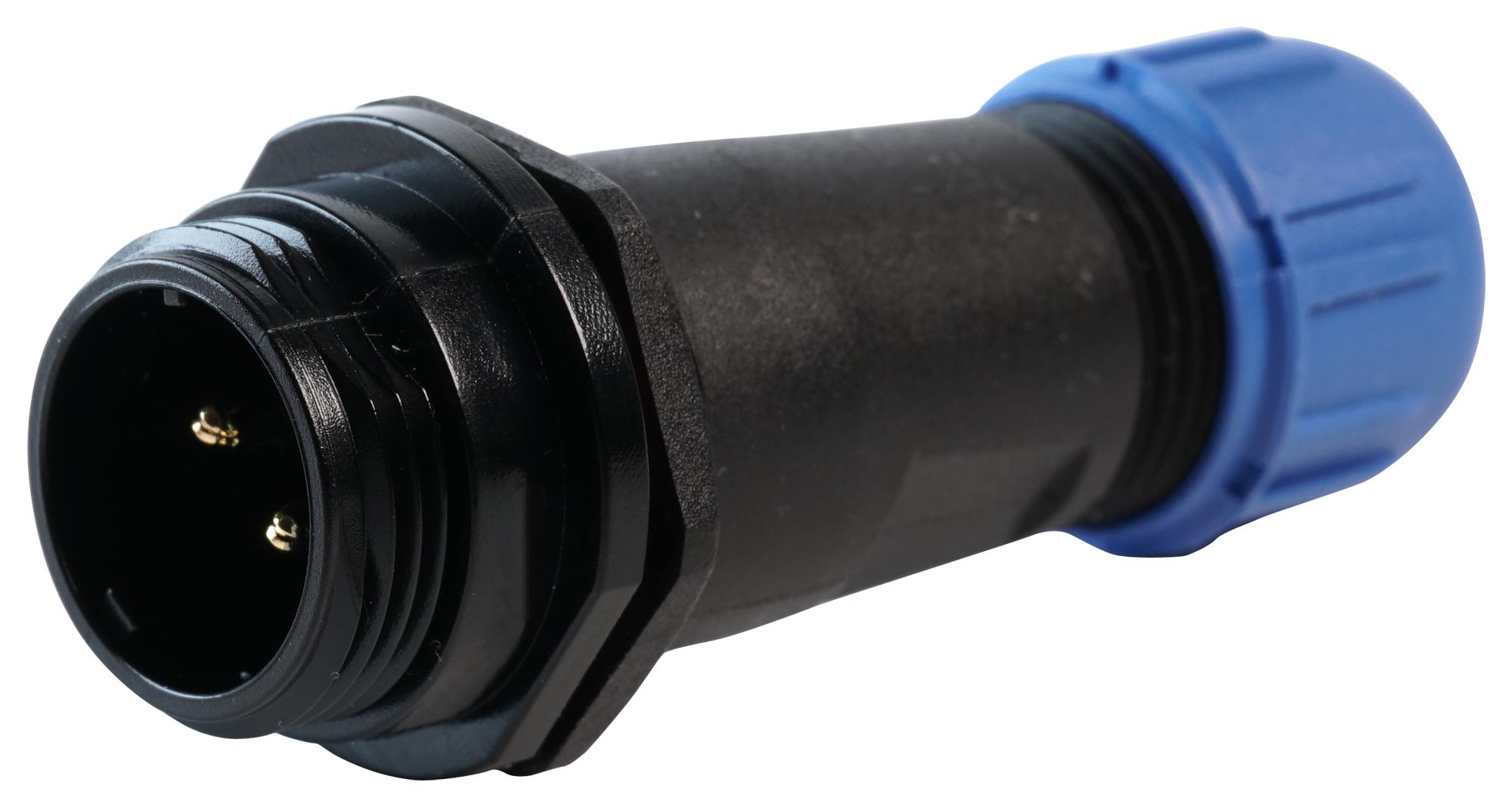

MULTICOMP PRO MP002519 waterproof connector
The MP-T13 IP68 series comprises highly durable, weatherproof connectors designed for industrial automation, security, and medical applications. Featuring threaded coupling, solder termination, and an IP68 rating, these connectors ensure secure, waterproof connections in harsh environments. Available in panel, cable, and inline configurations, they support 2, 3, 4, 5, and 7 poles with maximum temperature resistance up to 260°C for insert materials. The connectors are suitable for indoor and outdoor use, fitting 13mm cut-outs, with a maximum of 500 mating cycles, and are made from brass with gold-plated contacts.
MULTICOMP PRO MP002519 waterproof connector Specifications:
- IP Rating: IP68
- Material: Shell - Reming Nat Nut, Back Shell, Compressing Nut; Insert - PPS, Max. Temperature 260°C; Contact - Brass with gold plating
- Termination: Solder
- Number of Contacts: 2, 3, 4, 5, 7
- Rated Current: 13A (2-pole), 5A (3- and 4-pole), 5A (5-pole), 5A (7-pole)
- Rated Voltage: 250V (2- and 3-pole), 200V (4-pole), 180V (5-pole), 125V (7-pole)
- Test Voltage: 1500V (2- and 3-pole), 1500V (4-pole), 1000V (5- and 7-pole)
- Contact Resistance: 2.5 mΩ (2- and 3-pole), 5 mΩ (4-, 5-, and 7-pole)
- Dimensions: Suitable for 13mm cut-outs; Cable Outer Diameter Range: 4mm to 6.5mm / 5mm to 8mm
- Environmental Rating: IP68, Operating Temperature: -40°C to +85°C
- Mating Cycles: 500
Buy the Multicomp IP68 - Reliable Waterproof Connectors for Industrial Applications
Enhance your industrial setup with our waterproof connector, designed for durability and reliable performance in challenging environments. Featuring IP68 sealing, solder termination, and versatile mounting options, this connector is perfect for automation, medical, and security applications. Easy to install and compatible with a wide range of cables, it supports up to 7 poles and withstands harsh conditions with a temperature range of -40°C to +85°C. Purchase online today for dependable, weatherproof connectivity when you need it most.
Order your Multicomp Series MP002519 IP68 waterproof connector today and ensure secure, waterproof connections in your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002519?
You can click on the BUY or RFQ button to purchase MP002519 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002519?
You can download the MP002519 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002519?
MULTICOMP PRO
