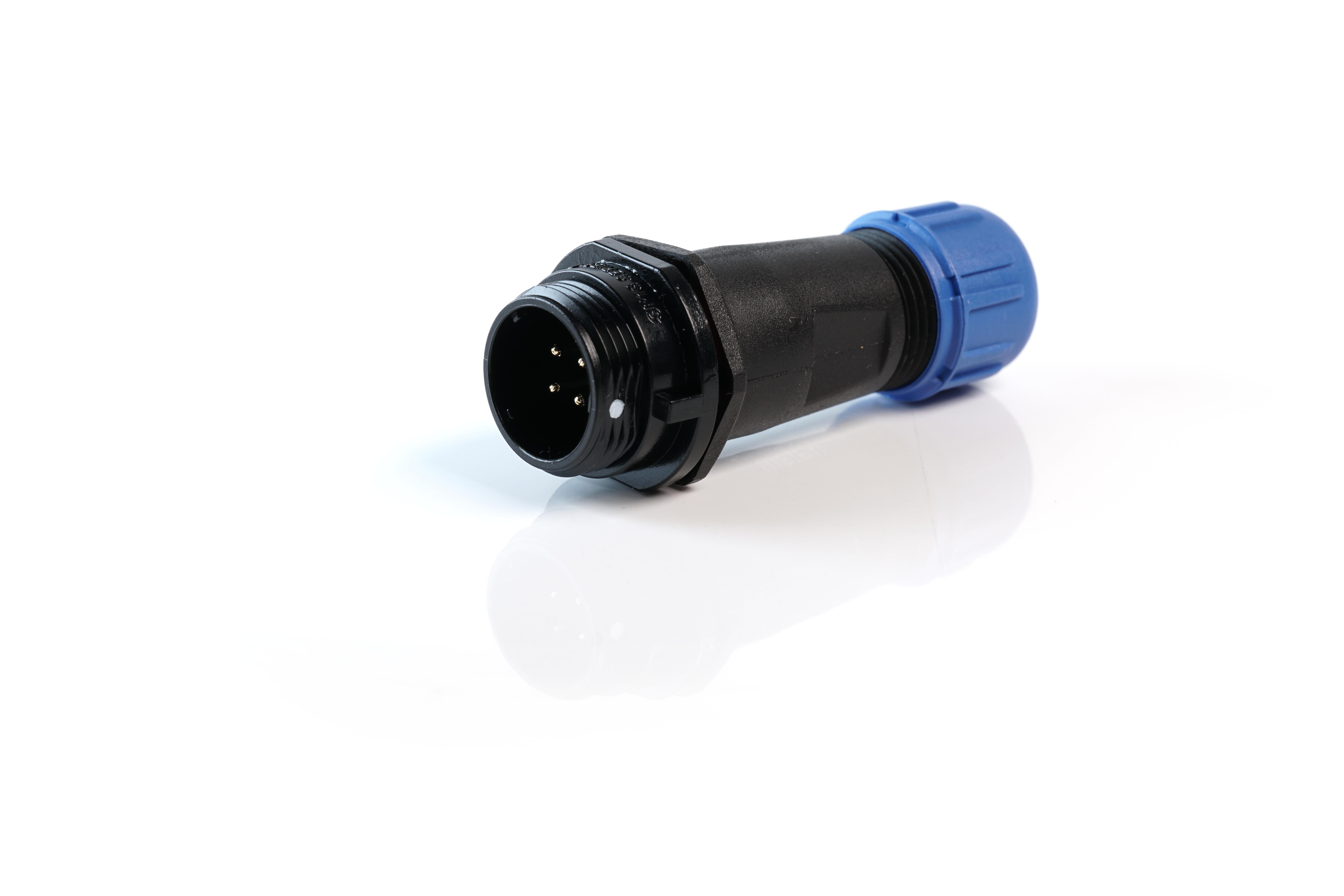

MULTICOMP PRO MP002522 Circular Connector
The MP-T13 IP68 series connectors are durable, weatherproof connectors designed with threaded couplings and an IP68 rating, ensuring protection against dust and water in various environments. They are available in panel mount, cable mount, and in-line configurations, suitable for cable-to-panel or cable-to-cable connections. These connectors feature a 13mm panel cut-out, solder termination, and are available in 2, 3, 4, 5, and 7 pole versions. An IP68-rated cap is also available for additional protection. Ideal for indoor and outdoor applications such as automation, medical devices, security systems, test and measurement, and industrial automation.
MULTICOMP PRO MP002522 Circular Connector Specifications:
- Material and Specifications Compliant
- Coupling: Threaded
- Shell Material: PC, Brass with gold plating contact
- Insert Material: PPS, Max. Temperature 260°C
- Fire Resistance: V-0
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000 MΩ
- Contact Resistance: 2.5 mΩ
- Rated Current: 13A for 2P, 5A for 3, 4, 5, 7P versions
- Rated Voltage: 250 V for 2P, 200-125 V for others
- Contact Diameter: 1.6mm for 2P, 1mm for 3P, 1mm for 4P and 5/7P
- Wire Size: 2/14 AWG for 2P, 0.75/18 AWG for others
- Cable Diameter Range: 4mm to 8mm
- Dimensions: Suitable for 13mm panel cutout, with locking nut
Buy the Buy Multicomp IP68 Circular Connectors Part Number MP002522 Online
Enhance your projects with the reliable and weatherproof Multicomp Circular Connectors. Designed for durability with IP68 protection, these connectors feature threaded coupling, solder termination, and support multiple poles ranging from 2 to 7. Suitable for outdoor and indoor applications in automation, security, and industrial systems, they provide secure connections with high mating cycles. Available in panel, cable, and inline configurations, they are ideal for critical connections in tough environments. Purchase online today for fast, dependable delivery.
Order your Multicomp Series MP002522 IP68 circular connector today and ensure reliable, weatherproof connections for industrial and outdoor applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002522?
You can click on the BUY or RFQ button to purchase MP002522 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002522?
You can download the MP002522 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002522?
MULTICOMP PRO
