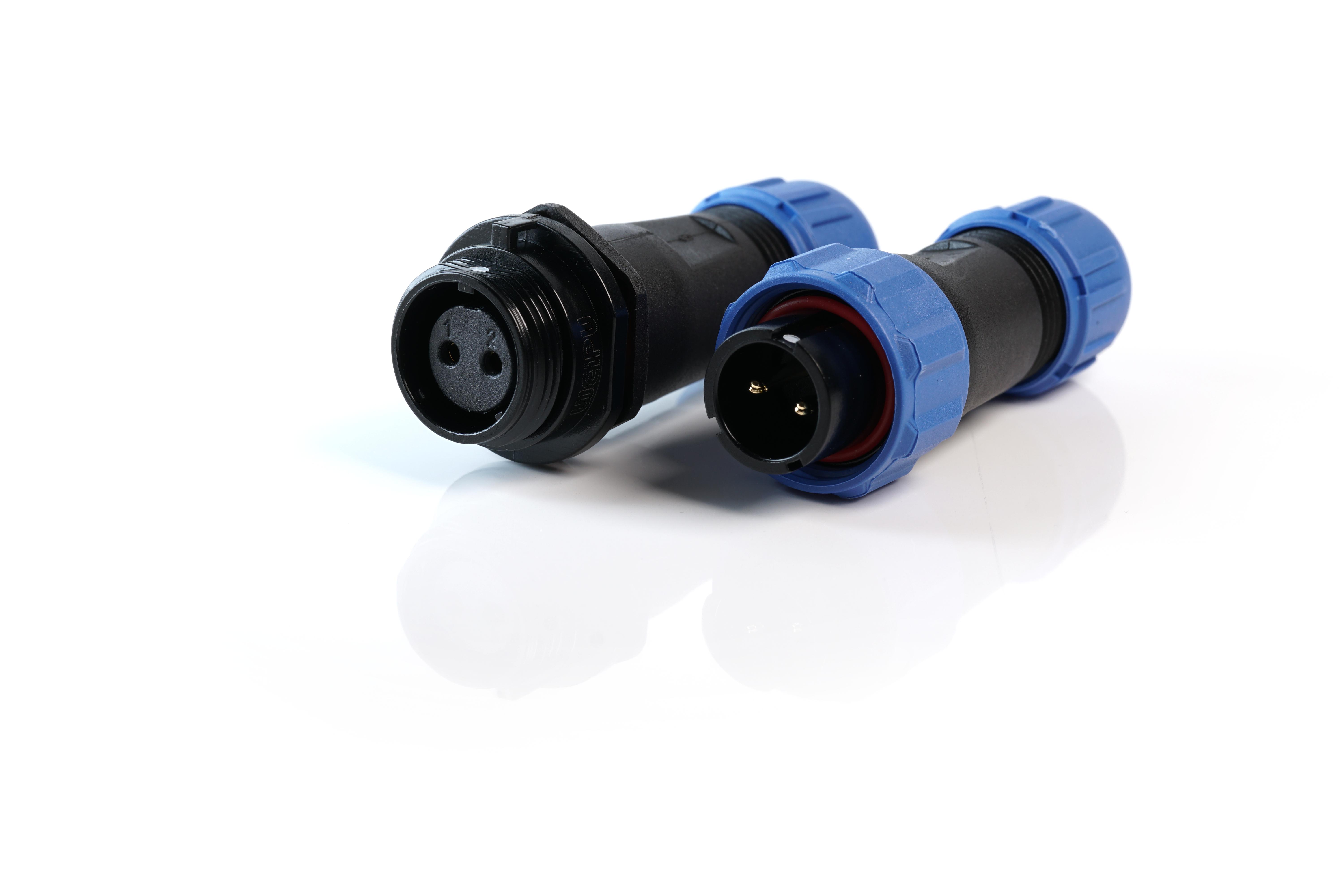

MULTICOMP-PRO MP002530 IP68 Connector
The MP-T13 IP68 series offers robust and weatherproof connectors with threaded coupling and IP68 protection, suitable for harsh environments. Designed in three configurations—panel mount, cable mount, and inline cable mount—they connect cables to panels or other cables securely. These connectors feature solder terminations, are rated for 13mm panel cut-outs, and include an IP68-rated dust cap for environmental sealing. Available in configurations with 2, 3, 4, 5, and 7 poles, they are ideal for automation, medical, security, and industrial applications requiring high durability and reliable electrical connections.
MULTICOMP-PRO MP002530 IP68 Connector Specifications:
- Rating: IP68 for dust and water resistance
- Shell Material: PC with V-0 fire resistance
- Insert Material: PPS, max temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder
- Number of Contacts: 2, 3, 4, 5, 7
- Rated Current: 13A (2 contacts), 5A (3,4,5,7 contacts)
- Rated Voltage: 250V (2,3), 200V (4), 180V (5), 125V (7)
- Test Voltage: 1500V for 1 min
- Contact Resistance: 2.5mΩ (2,3), 5mΩ (4,5,7)
- Cable Outer Diameter Range: 4mm to 8mm
- Coupling: Threaded
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000MΩ
Buy the Multicomp Series IP68 Connector: MP002530
Secure your electrical connections with the IP68-rated Multicomp Series connector MP002530, designed for harsh environments. Its threaded coupling ensures a tight seal, preventing dust and water ingress, ideal for outdoor, industrial, and automation applications. Available in multiple configurations with 2, 3, 4, 5, and 7 poles, this connector provides durable soldered contacts and a weatherproof design. Easy to install in panel, cable, or inline mount setups, it guarantees a high-performance, reliable connection that withstands extreme conditions. Purchase online today to upgrade your project’s durability.
Order your Multicomp Series IP68 connector MP002530 today and ensure reliable, weatherproof connections for your industrial or outdoor projects.
