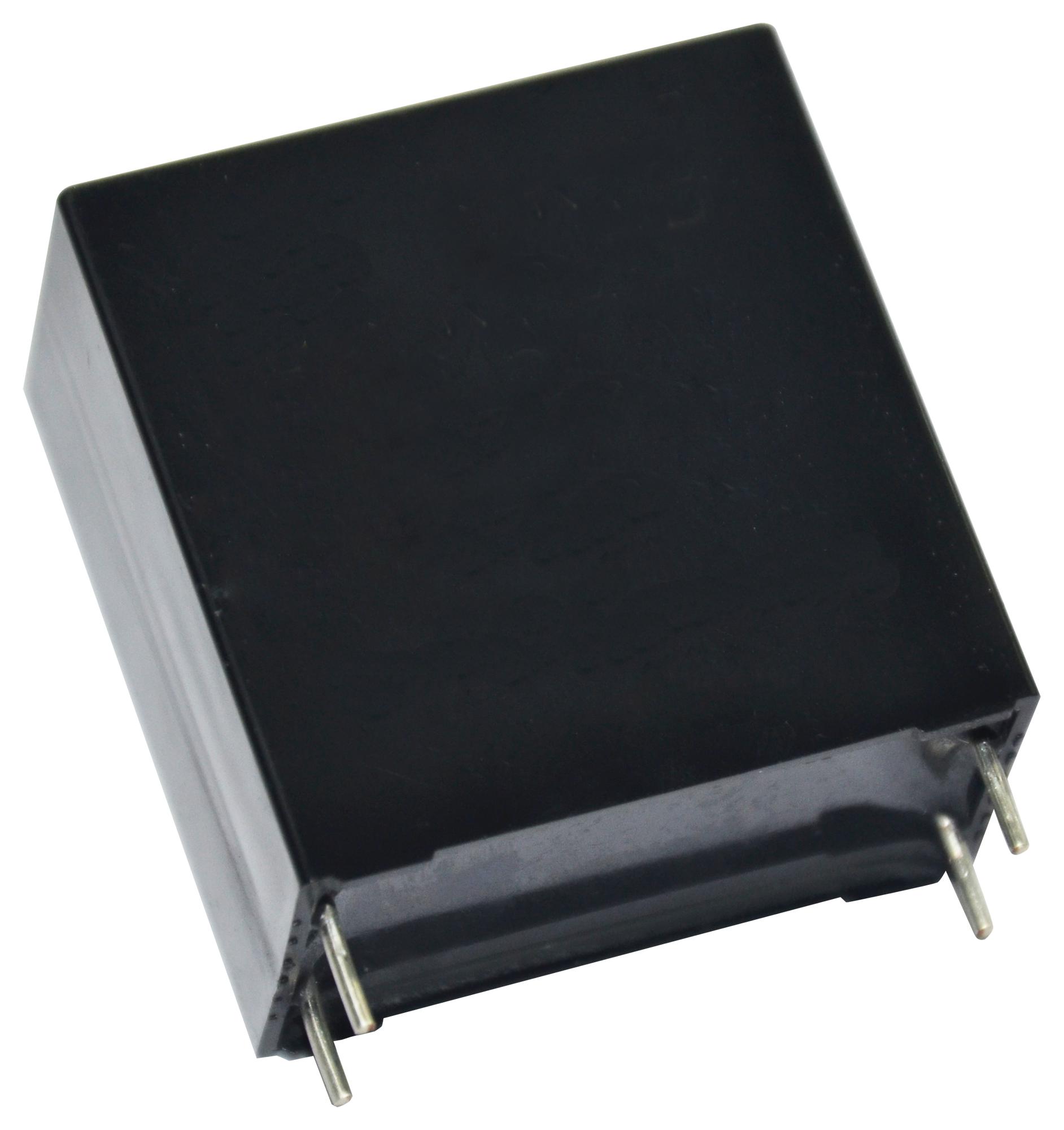

MULTICOMP PRO MPDPB1K1W80K4Q050 DC-Link Film Capacitor
The MPDPB1K1W80K4Q050 is a high-performance DC-link film capacitor designed for industrial applications, including frequency converters, power supplies, and solar inverters. Its metallized polypropylene film construction ensures excellent electrical properties, with an operating temperature range from -40°C to +105°C and rated voltages up to 1.1kV DC. The capacitor features a compact radial leaded design with a capacitance of 8uF and a lifetime expectancy of 100,000 hours at rated voltage. Ideal for demanding filtering and energy storage tasks in power electronics.
MULTICOMP PRO MPDPB1K1W80K4Q050 DC-Link Film Capacitor Specifications:
- Construction: Metallized polypropylene film
- Rated Voltage: 600V DC, 700V DC, 800V DC, 1100V DC
- Capacitance Range: 8uF to 80uF
- Capacitance Tolerance: ±10% (K)
- Operating Temperature: -40°C to +105°C
- Climatic Category: 40/105/56
- Insulation Resistance: 210000s at 20°C, 100V DC, 1min
- Self-Inductance: <1nH per mm of lead spacing
- Peak Current: 1=C.dV/dt
- Expected Lifetime: 100,000 hours at Un, 70°C
- Dimensions: Ww: 58-42.5mm, H: 50-37mm, T: 30-35mm, Lead Dia.: 1.2mm
- Material: Resin-filled plastic case (UL94 V-0)
- Standard: GB/T17702, IEC 61071
Buy the Multicomp DC-Link Capacitors – Reliable Power Film for Industrial Applications
Enhance your power electronics with Multicomp DC-Link film capacitors, engineered for high reliability and efficiency in industrial settings. These radial leaded capacitors provide excellent filtering for frequency converters, solar inverters, and high-end power supplies. With a robust metallized polypropylene construction, high voltage ratings up to 1.1kV, and a lifetime of 100,000 hours at rated voltage, they ensure long-term performance in demanding environments. Their compact design and precise specifications make them the ideal choice for professional engineers seeking quality and durability.
Buy Multicomp DC-Link film capacitors now and enjoy dependable high-voltage filtering, energy storage, and long-lasting performance in industrial power systems.
