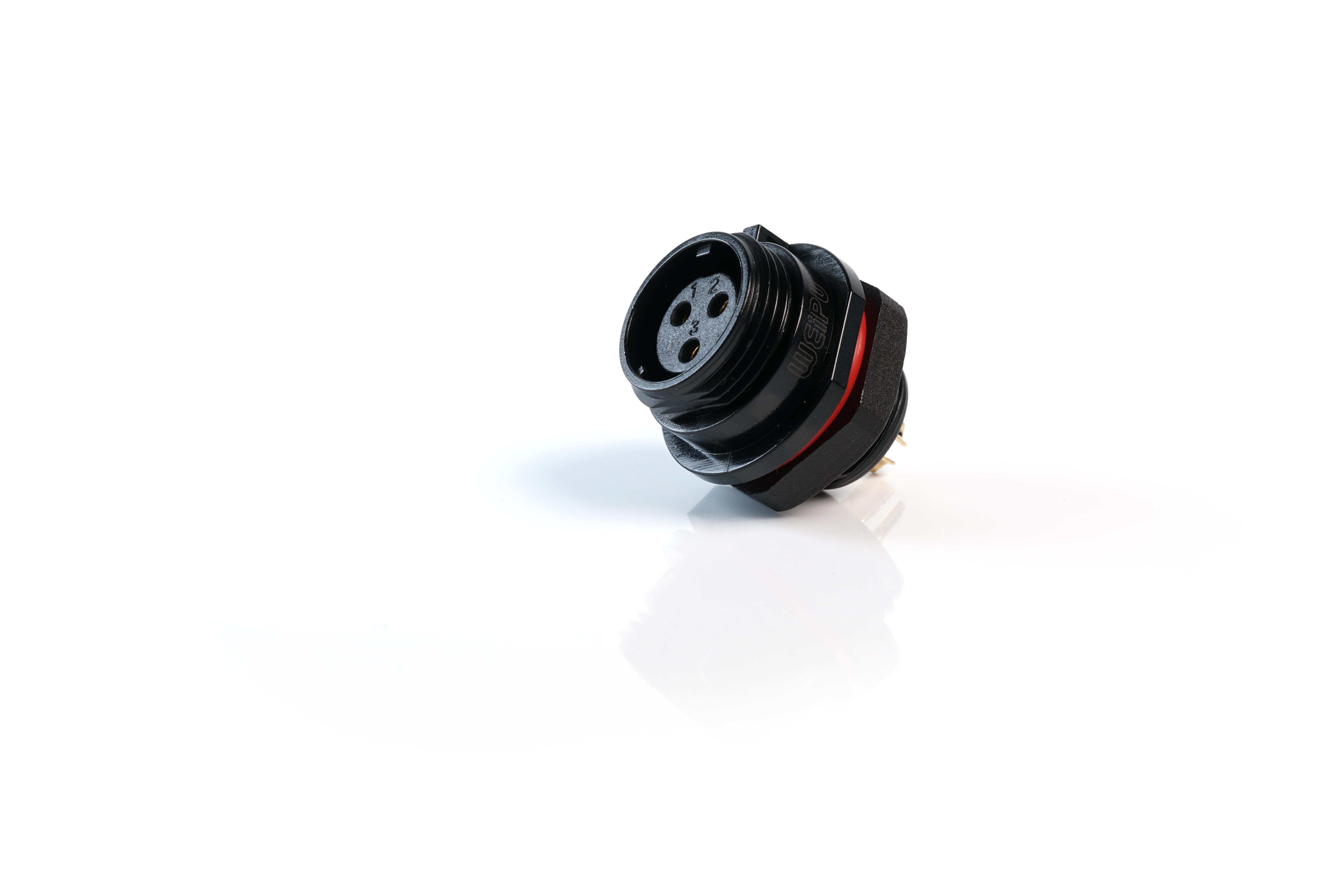

MULTICOMP PRO MP002541 Circular Connector
The IP68-compatible multipurpose circular connectors are designed with threaded coupling for secure connections and weatherproof sealing, meeting IP68 standards suitable for outdoor and industrial use. They offer various configurations including panel mount, cable mount, and in-line options, supporting 2, 3, 4, 5, or 7 poles with solder termination for reliable electrical contact. Made with brass contacts plated with gold for durability and corrosion resistance, these connectors feature a maximum temperature of 260°C and an insulation resistance of 2000 MQ. They withstand up to 500 mating cycles and operate in temperatures ranging from -40°C to +85°C, making them ideal for automation, industrial control, and outdoor equipment.
MULTICOMP PRO MP002541 Circular Connector Specifications:
- Material: Brass contacts with gold plating
- Shell Material: PC (Polycarbonate)
- Insertion Housing Shell: PC
- Temperature Range: -40°C to +85°C
- Max. Temperature: 260°C
- IP Rating: IP68
- Mating Cycles: 500
- Insulation Resistance: 2000 MQ
- Contact Diameter: 1.6 mm to 1 mm depending on contact number
- Rated Current: 13 A for 2-poles, 5 A for 3- to 7-poles
- Rated Voltage: 250 V for 2- and 3-poles, 200 V to 125 V for higher poles
- Termination: Solder
- Cable Outer Diameter Range: 4mm to 8mm
- Connector Types: Panel, cable, in-line mount
- Number of Poles: 2, 3, 4, 5, 7
- Dust Caps: Available for protection
Buy the Multicomp Series IP68 Circular Connector Part Number MP002541
Enhance your industrial setups with our IP68 circular connectors, designed for durability and weather resistance. Available in panel, cable, and inline configurations with multiple poles, these connectors assure reliable electrical connections. Made with high-quality brass contacts plated with gold, they are rated at IP68 for dust and water resistance, with a maximum temperature of 260°C and insulation resistance of 2000 MQ. Support 500 mating cycles and operate from -40°C to +85°C, perfect for automation, outdoor equipment, and process control systems. Buy online today for dependable, corrosion-resistant connectivity.
Order your Multicomp IP68 Series connector today and ensure robust, weatherproof connections for your industrial and outdoor projects.
